GB/T 24187-2009 Galvanized Steel Tube , Hot Zinc Coated 4.76mm X 0.6 mm

GB/T 24187-2009 Galvanized Steel Tube , Hot Zinc Coated 4.76mm X 0.6 mm

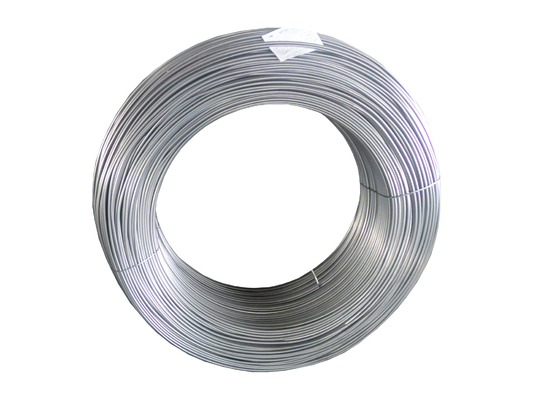

Galvanized Steel Tube
outer diameter:4.76mm
wall thickness: 0.6mm
low carbon steel strip

1.materials: low carbon steel strip

2.main use: widely used in wire-tube condenser, evaporators, refrigeration, chiller, heaters, freezer etc

3.outer diameter:4.76mm

4.wall thickness: 0.6mm

5. standard: GB/T 24187-2009

6.certification:also passed ISO9001 quality attestation system and ISO14001 Certificate of Enviroment

Management  System

7.surface treatment: coating zn and hot galvanized

8. features:soft  and easy to bend

9.tensile strength: more than 290 Mpa

10.yield strength:more than 180 Mpa

11.elongation:more than 25%

12.  salt fog-resisting test time:also also more than 72 hours

13.place of origin:changzhou city,jiangsu province,china

14. brand:WUSHUN

15. package:plastic cloth with coils, wooden boxes, iron pallets etc

16. payment terms:T/T,L/C etc

17. delivery:as contract

18. supply ability:30000 ton per year

19. port of loading:shanghai, China;

Applications:

Zn coated steel tubes mainly used in refrigerator, freezer ,condenser, evaporator and compressor etc.It is made  by material  low carbon steel strip. The products have been export to Europe,America,the Middle of East,Africa and South-East of Aisa.

Specifications:

Galvanized pipe corrosion performance index

Competitive Advantage:

we can produce zn coated steel tube according to customer's requirement,salt spray time from 24h to 120h,corrosion resistance is good .size is complete ,quality is best with competive price ,according to the national standard.
