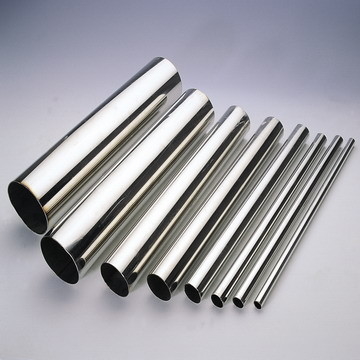

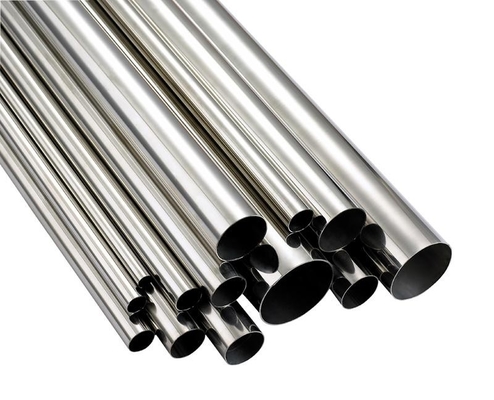

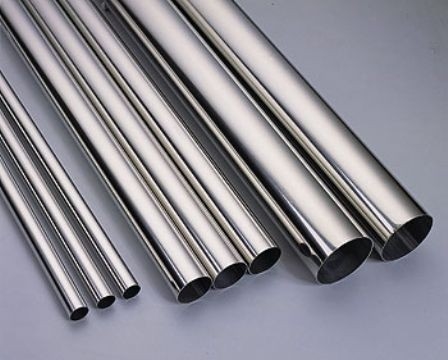

ASTM A554 Stainless Steel Welded Tubing, Polished, Plain End , TP304 / 304L TP316 / 316L TP321 / 321H

ASTM A554 Stainless Steel Welded Tubing, Polished, Plain End , TP304 / 304L TP316 / 316L TP321 / 321H
ASTM A554 Stainless Steel Welded Tubing, Polished, Plain End , TP304 / 304L TP316 / 316L TP321 / 321H ASTM A554 Stainless Steel Welded Tubing, Polished, Plain End , TP304 / 304L TP316 / 316L TP321 / 321H ASTM A554 Stainless Steel Welded Tubing, Polished, Plain End , TP304 / 304L TP316 / 316L TP321 / 321H

Large Image :  ASTM A554 Stainless Steel Welded Tubing, Polished, Plain End , TP304 / 304L TP316 / 316L TP321 / 321H Get Best Price

Product Details:
Place of Origin: China, India, USA, Korea, UE
Brand Name: YUHONG SPECIAL STEEL
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: negotiable
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 10days->
Payment Terms: L/C,T/T,Paypal
Supply Ability: 1500 tons per month
Contact Now
Detailed Product Description
High Light:

welded steel pipes

,

welded boiler tube

Welded Stainless Steel Mechanical Tubing

Overview
1.1 This specification covers welded stainless steel tubing for mechanical applications where appearance, mechanical properties, or corrosion resistance is needed.
1.2 This specification covers as-welded or cold-reduced mechanical tubing in sizes to 16 in. (406.4 mm) outside diameter, inclusive (for round tubing) and in wall thicknesses 0.020 in. (0.51 mm) and over.
1.3 Tubes shall be furnished in one of the following shapes as specified by the purchaser: round, square, rectangular, or special.
1.4 Supplementary requirements of an optional nature are provided and when desired shall be so stated in the order.
1.5 Values stated in inch-pound units, in accordance with the specifications, are to be regarded as the standard.

Tube Gauge for ASTM A554   ASTM A554 Stainless Steel Welded Tubing, Polished, Plain End , TP304 / 304L TP316 / 316L TP321 / 321H 0 Round

O.D./In.Wall/In.Wt./Ft.
.500.049
.236
.625.035
.221
.750.065.476
.875.035.314
1.000.049.498
1.000.065.649
1.000.083.813
1.250.049.629
1.250.065.823
1.500.035.548
1.500.065.996
O.D./In.Wall/In.Wt./Ft.
1.625.0651.083
1.750.035.641
1.750.1202.090
1.875.049.956
2.000.035.735
2.000.0491.021
2.000.0651.343
2.250.0491.152
2.500.0491.283
3.000.0652.030
4.000.0652.730



Tube Gauge for ASTM A554    ASTM A554 Stainless Steel Welded Tubing, Polished, Plain End , TP304 / 304L TP316 / 316L TP321 / 321H 1 Square

O.D./In.Wall/In.Wt./Ft.
.750 x .750.065
.605
.750 x .750.1201.028
1.000 x 1.000.049.634
1.000 x 1.000.065.827
1.000 x 1.000.0831.035
1.000 x 1.000.1201.436
1.250 x 1.250.0651.047
1.250 x 1.250.0831.317
1.250 x 1.250.1201.844
1.500 x 1.500.0651.268
1.500 x 1.500.0831.599
1.500 x 1.500.1202.252
1.500 x 1.500.1803.230
1.750 x 1.750.1202.660
2.000 x 2.000.0651.710
2.000 x 2.000.0832.164
2.000 x 2.000.1203.050
2.000 x 2.000.1804.136
2.000 x 2.000.2505.410
O.D./In.Wall/In.Wt./Ft.
2.500 x 2.500.0832.730
2.500 x 2.500.1203.900
2.500 x 2.500.1805.352
3.000 x 3.000.0833.290
3.000 x 3.000.1094.250
3.000 x 3.000.1204.750
3.000 x 3.000.1806.578
3.000 x 3.000.2508.810
4.000 x 4.000.1206.460
4.000 x 4.000.1809.351
4.000 x 4.000.25012.210
5.000 x 5.000.25016.350
6.000 x 6.000.25019.020
6.000 x 6.000.37527.120
6.000 x 6.000.50038.123
8.000 x 8.000.25026.528
8.000 x 8.000.37539.291
8.000 x 8.000.50051.721


Tube Gauge for ASTM A554    ASTM A554 Stainless Steel Welded Tubing, Polished, Plain End , TP304 / 304L TP316 / 316L TP321 / 321H 2 Rectangular

O.D./In.Wall/In.Wt./Ft.
.750 x 1.500.065
.937
1.000 x 1.500.0831.317
1.000 x 2.000.0651.270
1.000 x 2.000.1202.252
1.000 x 3.000.0651.710
1.500 x 2.500.0651.710
1.500 x 3.000.1203.480
2.000 x 3.000.1203.900
2.000 x 3.000.1805.352
O.D./In.Wall/In.Wt./Ft.
2.000 x 4.000.1204.750
2.000 x 4.000.1806.578
2.000 x 4.000.2508.810
2.000 x 5.000.1808.060
2.000 x 6.000.1809.420
2.000 x 6.000.25012.210
3.000 x 4.000.1205.610
4.000 x 6.000.18011.900
4.000 x 6.000.25015.620
4.000 x 6.000.37523.994
4.000 x 6.000.50031.324
