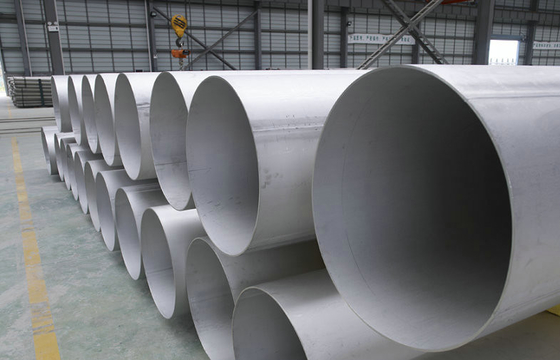

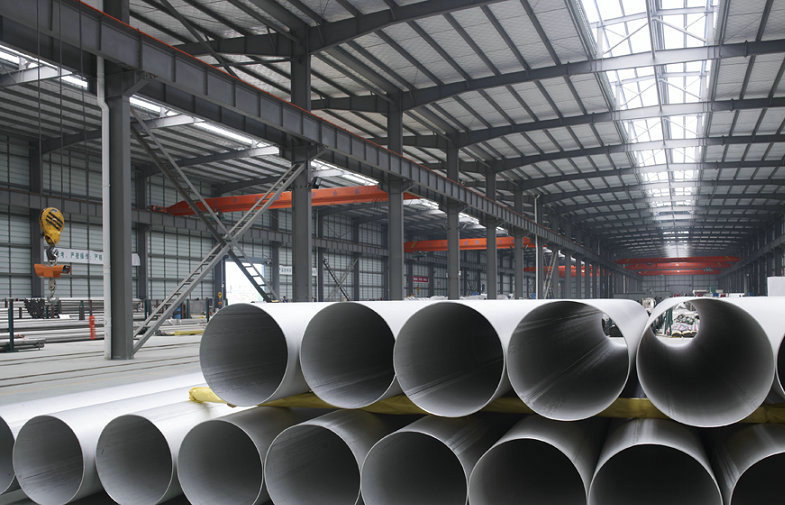

AISI 304 ERW Stainless Steel Pipe 20 Inch , Annealed Stainless Steel Tubing

Large Image : AISI 304 ERW Stainless Steel Pipe 20 Inch , Annealed Stainless Steel Tubing Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Cosco Steel
Certification:	ISO,SGS,CQC,etc.

Payment & Shipping Terms:

Minimum Order Quantity:	500Kgs/ one size
Price:	Negotiation
Packaging Details:	Plastic bag in bundle,Wooden box,etc.
Delivery Time:	10-15 days
Payment Terms:	L/C,T/T,Paypal
Supply Ability:	600Tons/Month

Contact Now

Detailed Product Description

Surface Finish:

Annealed And Pickled

Size:

20 Inch

Wall Thickness:

+/- 0.5mm

High Light:

stainless steel welded pipe

welded boiler tube

AISI 304 ERW Stainless Steel Pipe 20 Inch , Annealed Stainless Steel Tubing

Quick Detail:

Product Name	ERW Welded Stainless Steel Pipe
Surface Finish	1. 2B Finish 2. Pickled Finished 3. Annealed&Pickled
Material	304/L, 316L/Ti, 310S etc.
Outside Diameter	20mm - 2000mm
Wall Thickness	1mm,1.2mm,1.5mm,2.0mm ... 30mm.
Length	1000mm,2000mm,3000mm....12000mm
Market	USA,Canada,Japanese,European etc.

Description:

1. Product Item No.: 0010welded-Cosco Steel

2. Type: Round Or Oval

3. Material: Main

1. 4301/ SUS304/ AISI304/ S30400,

1. 4306/ SUS304L/ AISI304L/ S30403,

1. 4404/ SUS316L/ AISI316L/ S31603, etc.

4. Standard:

GB/T12771-2008, ASTM A312, ASTM A789, JIS G3448,

DIN EN10216-5, DIN EN10217-7, etc.

5. Size: 1/2” to 48”

6. Wall Thickness: Sch5s,Sch10s,Sch40S

7. Marking: Registered logo,Heat Number,Steel Grade,Standard,Size

8. H.S Code: 7306.4000

Applications:

This type welded tubes/pipes be used in
Industrial fluid conveying pipes
Mechanical structural tubes
Heat ex-changer and condenser tubes
Walled water tubes
Larger caliber industrial welded pipes etc.

Specifications

Designation: A312/A312M-04a

Standard specifications For Seamless,Welded,And Heavily Cold Worked Austenitic

Stainless Steel Pipe

Manufacture Process	ERW Welded ( ELD ) Pipe
Quality Inspection	Metallographic Analysis Physical And Chemical Analysis Specification Eccentricity Test Mechanical Test PMI Test Eddy Current Test Large-Size Ultrasonic Flaw Test Ultrasonic Flat Test Thickness Test etc.
Mechanical Requirements	Grade UNS Designation Tensile Strength Yield Strength Min Ks i [M pa] Min Ks i [M pa] TP304 S30400 75 [515] 30 [205] TP304L S30403 70 [485] 25 [170] TP309S S30908 75 [515] 30 [205] TP310S S31008 75 [515] 30 [205] TP316L S31603 70 [485] 25 [170] .... .... ..... .....
Specification No. Pipe Grade NPS Wall SMLES OR WELDED ...	ASTM A312 P TP304 12IN 0.375 IN WELDED .....
