Φ44～Φ340 18m Retained Mandrel Finished mandrel For Seamless Steel Pipe Production
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Alloy | Type: | Retained Mandrel |
|---|---|---|---|
| Max Length: | 18m | Place Of Origin: | China (Mainland) |
| High Light: | Retained Mandrel Lathe,Centerless lathe |
||

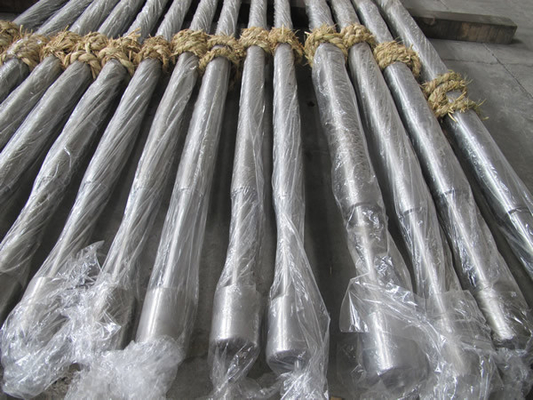

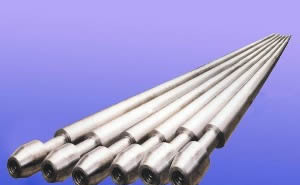

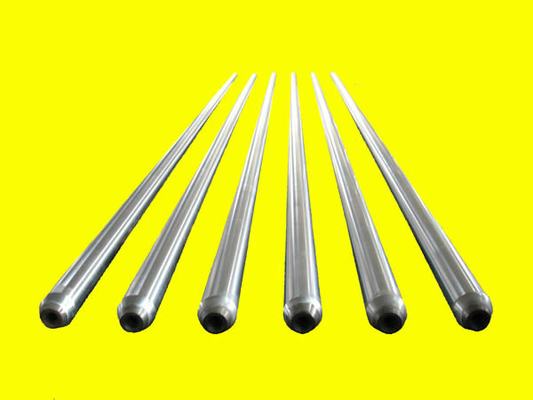

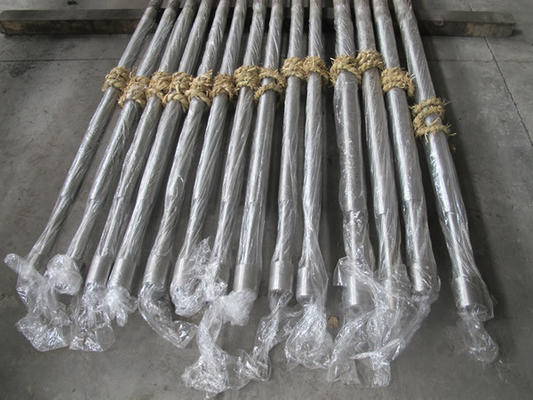

Φ44～Φ340 18m Retained Mandrel, Finished mandrel For Seamless Steel Pipe Production
Quick detail:
1. Used for seamless steel pipe production
2. Choose alloy steel and hot works mould steel
3. Max length :18 Meter
Retained mandrel process QK1235 main processing equipment CNC pipe threading machine, CW6180D / 12 m, CWA61100 / 15 m, CW61125 / 18 m lathe, centerless lathe, planetary belt grinding and other special equipment. Annual production capacity of more than 1000 branches mandrel
Retained Mandrel for Seamless Steel Pipe
Main Description
- The mandrel works together with the roller and make the perforated tube blank into seamless steel tube with different size.To the rolling model,there are three kinds:floating mandrel,retained mandrel and semi~retained mandrel.We could offer different mandrels according to your different requirements.
- The retained mandrels manufactured by our factory are sold to many domestic countries who needed to imported retained mandrels before. We could design and manufacture mandrels used in rollers such as MPM,PQF,FQM,etc. Specifications Φ44 ~ Φ340, processing up to 18 m length
- The retained mandrel for the production of large-sized seamless steel pipe is used in sectional structure. Its working section is exposed to complex and huge surface pressure as well as thermal cold-hot fatigue, whereas its connection part has to withstand mechanical forces during the pressing process.
- The many production processes, that include smelting, forging, rough machining, heat treatment, semi-finished & finished machining, chrome plating and phosphate treatment, ensures the following characteristics: upgrading the mandrel material and its manufacturing technology in close collaboration
Mechanical Property for Reference
|
specification |
Tension strengthσb (MPa) |
Yield strength
σ0.2 (MPa) |
Elongation δ5 (MPa) |
Area reduction Ψ (%) |
Average impact Akv (J) |
Hardness HB |
|
≤200mm |
1127-1274 |
≥931 |
≥8 |
≥25 |
≥20 |
350-390 |
|
>200mm |
1078-1274 |
≥882 |
≥8 |
≥25 |
≥20 |
330-375 |
