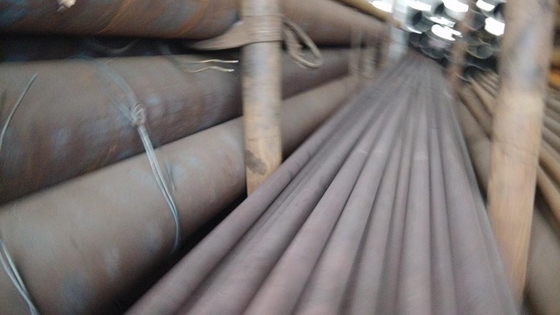

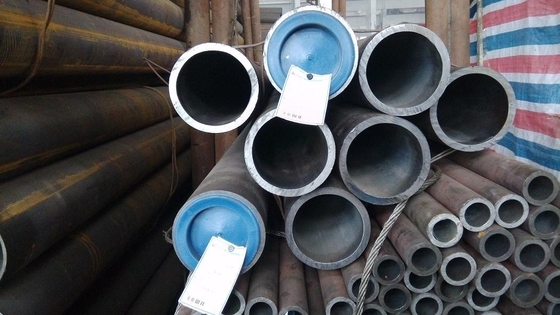

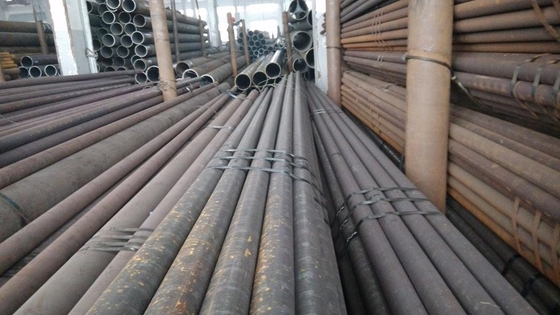

OD 2 Inch to 20 Inch Hot Rolled Carbon Steel Pipe Seamless Din Standard St42 , St45 , St52
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Seamless Steel Pipe | Size: | 20-508mm |
|---|---|---|---|
| Length: | 6-11m Or As Required | Company Type: | Manufactor |
| Thcikness: | 2-60mm | Type: | Hot Rolled / Cold Drawn |
| High Light: | heavy steel pipe,carbon steel seamless pipe |
||
Production Equipment
30 sets of Cold-drawn Machinery (Model: 3 ton to 500 ton)
Cold-rolled Machinery: Model LD-30, LD-60, LG-90H (L), LG-159H (L)
Automatic Roller Solution & Annealing Heat Treatment Equipment
18-meter-long Pickling Sin
description
|
Seamless Steel Pipe Description Details: |
|||||||
|
Manufacturer |
Jiangsu Mittel Steel industrial Limited |
||||||
|
Brand |
Mittel |
||||||
|
Type |
Manufacture & Sales OEM |
||||||
|
Product |
C, C-Mn and Alloy Seamless Steel Pipe |
||||||
|
Process |
Seamless, Cold drawn and Hot rolled |
||||||
|
Material |
20#, 10#, 45#, 35# and Q235 |
||||||
|
16Mn, 27SiMn, 40Cr, 12CrMo, 15CrMo, 35CrMo and 42CrMo |
|||||||
|
Size |
Outer Diameter |
Wall Thickness |
Length |
||||
|
Inch |
mm |
SCH |
mm |
≥4 |
|||
|
1/2--12 |
25 --325 |
40--XXS |
4--70 |
random |
specific |
||
|
Standard |
ASTM A106, A53, A1045, A210 and A5140 |
DIN st42, st45, st35, st37 and st52 |
|||||
|
JIS G3461, G3455, G3456 and G3454 |
GB 8162 |
||||||
Specifications:
size range
| NPS | OD | WT | |||||||||||
| INCH | MM | SCH10 | SCH20 | SCH30 | STD | SCH40 | SCH60 | XS | SCH80 | SCH100 | SCH120 | SCH140 | SCH160 |
| 1/2" | 21.3 | 2.11 | 2.41 | 2.77 | 2.77 | 3.73 | 3.73 | 4.78 | |||||
| 3/4" | 26.7 | 2.11 | 2.41 | 2.87 | 2.87 | 3.91 | 3.91 | 5.56 | |||||
| 1" | 33.4 | 2.77 | 2.9 | 3.38 | 3.38 | 4.55 | 4.55 | 6.35 | |||||
| 1.1/4" | 42.2 | 2.77 | 2.97 | 3.56 | 3.56 | 4.85 | 4.85 | 6.35 | |||||
| 1.1/2" | 48.3 | 2.77 | 3.18 | 3.68 | 3.68 | 5.08 | 5.08 | 7.14 | |||||
| 2" | 60.3 | 2.77 | 3.18 | 3.91 | 3.91 | 5.54 | 5.54 | 8.74 | |||||
| 2.1/2" | 73 | 3.05 | 4.78 | 5.16 | 5.16 | 7.01 | 7.01 | 9.53 | |||||
| 3" | 88.9 | 3.05 | 4.78 | 5.49 | 5.49 | 7.62 | 7.62 | 11.13 | |||||
| 3.1/2" | 101.6 | 3.05 | 4.78 | 5.74 | 5.74 | 8.08 | 8.08 | ||||||
| 4" | 114.3 | 3.05 | 4.78 | 6.02 | 6.02 | 8.56 | 8.56 | 11.13 | 13.49 | ||||
| 5" | 141.3 | 3.4 | 6.55 | 6.55 | 9.53 | 9.53 | 12.7 | 15.88 | |||||
| 6" | 168.3 | 3.4 | 7.11 | 7.11 | 10.97 | 10.97 | 14.27 | 18.26 | |||||
| 8" | 219.1 | 3.76 | 6.35 | 7.04 | 8.18 | 8.18 | 10.31 | 12.7 | 12.7 | 15.09 | 18.26 | 20.62 | 23.01 |
| 10" | 273 | 4.19 | 6.35 | 7.8 | 9.27 | 9.27 | 12.7 | 12.7 | 15.09 | 18.26 | 21.44 | 25.4 | 28.58 |
| 12" | 323.8 | 4.57 | 6.35 | 8.38 | 9.53 | 10.31 | 14.27 | 12.7 | 17.48 | 21.44 | 25.4 | 28.58 | 33.32 |
| 14" | 355.6 | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 15.09 | 12.7 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 |
| 16" | 406.4 | 6.35 | 7.92 | 9.53 | 9.53 | 12.7 | 16.66 | 12.7 | 21.44 | 26.19 | 30.96 | 36.53 | 40.19 |
| 18" | 457.2 | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 19.05 | 12.7 | 23.83 | 39.36 | 34.93 | 39.67 | 45.24 |
| 20" | 508 | 6.35 | 9.53 | 12.7 | 9.53 | 15.09 | 20.62 | 12.7 | 26.19 | 32.54 | 38.1 | 44.45 | 50.01 |
| 22" | 558.8 | 6.35 | 9.53 | 12.7 | 9.53 | 22.23 | 12.7 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | |
| 24" | 609.6 | 6.35 | 9.53 | 14.27 | 9.53 | 17.48 | 24.61 | 12.7 | 30.96 | 38.89 | 46.02 | 52.37 | 59.54 |
| 26" | 660.4 | 7.92 | 12.7 | 9.53 | 12.7 | ||||||||
| 28" | 711.2 | 7.92 | 12.7 | 15.88 | 9.53 | 12.7 | |||||||
Application of seamless steel pipe
1. Construction are: pipeline under most more building in extraction of groundwater, the boiler hot water use, etc.
2. Mechanical processing, bearing sleeve, processing machinery spare parts, etc.
3. Electrical class: gas pipeline, water power fluid.
4. Wind farms anti-static tube, etc.
