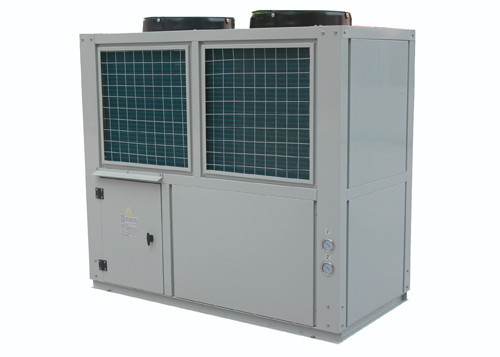

Air To Water Industrial Air Conditioning Units , Galvanized Steel Sheet
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Air Cooled Scroll Chiller | Application: | Cooling Only |
|---|---|---|---|
| Cooling Capacity: | 64kW | Refrigerant: | R407C |
| Compressor: | Hermetic Scroll Type | Power Supply: | 380V/3PH/50Hz |
| Dimensions(L*W*H) Mm: | 2200x1000x1950 | Material: | Painted Galvanized Steel Sheet |
| High Light: | industrial air con units,factory air conditioning units |
||

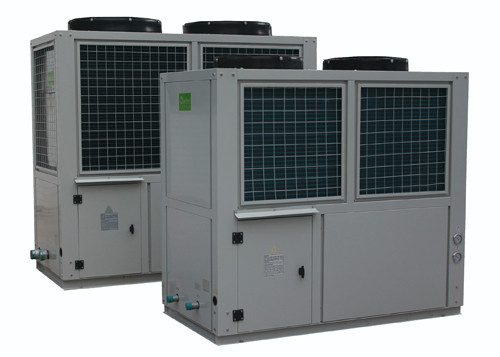

Air To Water Industrial Air Conditioning Units , Galvanized Steel Sheet
Specifications:
|
Model |
|
HWAC25 |
|
|
Cooling capacity |
kW |
64 |
|
|
Power supply |
|
380V/3PH/50Hz |
|
|
Cooling power input |
kW |
18.3 |
|
|
Refrigerant |
|
R407C |
|
|
Compressor |
Type |
|
Hermetic Scroll |
|
Power |
kW |
16.5 |
|
|
Quantity |
pcs |
2 |
|
|
Air Cooled Condenser and condensing fan |
Type |
|
Copper tubes with hydrophilic aluminium fins |
|
Fan type |
|
Ultra low noise axial type |
|
|
Air discharge |
|
Top discharge |
|
| Air volume | m3/h | 27000 | |
|
Motor power |
kW |
2*0.9 |
|
|
Evaporator |
Type |
|
Shell and tube |
|
Inlet/outlet water temp. |
℃ |
12 / 7 |
|
|
Water flow |
m3/h |
11.1 |
|
|
Pressure drop |
kPa |
48 |
|
|
Connecting pipe size |
mm |
DN50 |
|
|
Throttle method |
|
External balanced thermal expansion valve |
|
|
Electric controller |
|
LCD English display screen, automatic microcomputer controller, failure warnings, error checking, balance operation time, Timer on/off, abnormal status display,etc |
|
|
Safety devices |
|
High&low pressure switch, anti-frozen protection, over load protection, overheat protection,phase sequence protection,etc |
|
|
Net weight |
kg |
930 |
|
|
Dimensions(L*W*H |
mm |
2200x1000x 1950 |
|
Description:
- Hermetic scroll compressor: brand Hitachi, Copeland, etc. Original new comprssor.
- Galvanized steel sheet, plate type structure, white grey color, beautiful appearance.
- Intelligent control : LCD intelligent controller, individual system for each compressor, start and close according to capacity requirement, saving energy.
- V type design air cooled condenser, high heat exchange efficiency, ultra low loise axial condensing fan, copper tubes with hydrophilic aluminium fins condenser;
- Dry type shell and tube evaporator: steady performance and high exchange efficiency;
- Modular design: flexible combination, can control the start and stop of 16 modules at the most, specially convenient for central control management.
- Compact size, easy installation and maintainance, no need cooling tower.
- Complete safety devices: high/low pressure switch, anti-frozen, overload protection, overheat protection, reverse&lack phase protection, etc;
- Environment friendly refrigerant: R407C, R134a is optional.
Applications:
Plastic molding industry, electronic factory, pharmaceutical factory, precision instrument factory, petrochemical factory, tobacco factory, cooling for production process, etc
