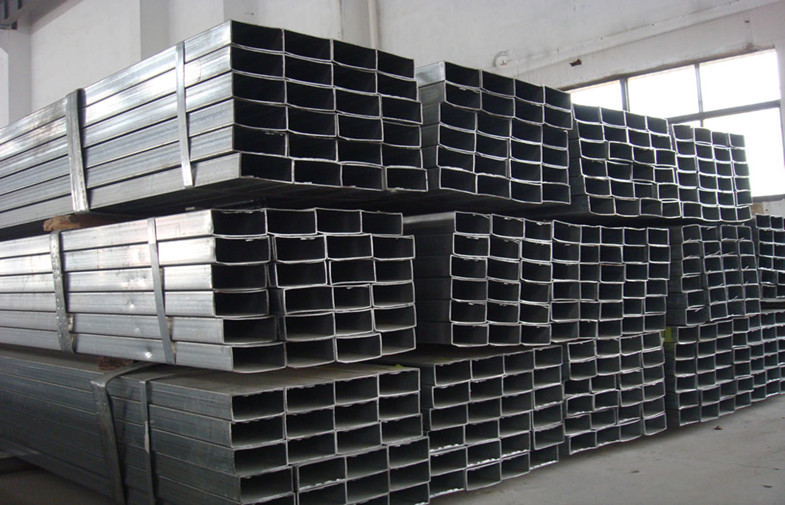

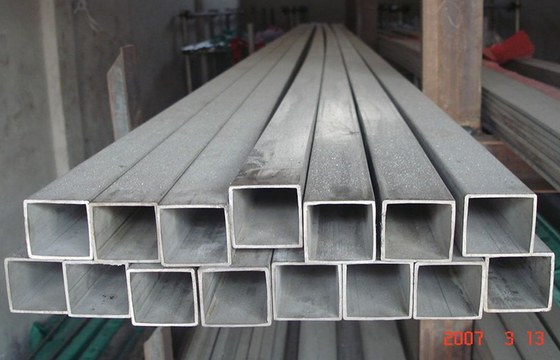

BS1387 Q215 Q235 Rectangular Galvanized Steel Tube / FBE Pipe With 3 PE Q215

BS1387 Q215 Q235 Rectangular Galvanized Steel Tube / FBE Pipe With 3 PE Q215
BS1387 Q215 Q235 Rectangular Galvanized Steel Tube / FBE Pipe With 3 PE Q215 BS1387 Q215 Q235 Rectangular Galvanized Steel Tube / FBE Pipe With 3 PE Q215

Large Image :  BS1387 Q215 Q235 Rectangular Galvanized Steel Tube / FBE Pipe With 3 PE Q215 Get Best Price

Product Details:
Place of Origin: Tianjin, China
Brand Name: TJJX
Certification: ISO，SGS，BV
Material: Q345|Q235|Q195|Q215
Product Name: Galvanized Steel Tube
Section Shape: Square|Rectangular
Surface Treatment: Galvanized
Type: ERW|EFW|DSAW
Usage: For Structure
Welded Line Type: Longitudinal
Standard: BSEN10219|BSEN10217|GB
Contact Now
Detailed Product Description
High Light:

thin wall steel tubing

,

galvanized steel tube



BS1387 Q215 Q235 Rectangular Galvanized Steel Tube / FBE Pipe With 3 PE





Quick detail:



1.O.D:20X30mm---400X600mm

2.thickness:0.5-25mm

3.material:Q345 also have Q235,Q195

4.standard:BSEN10219,BSEN10217,GB/T13793-1992,GB/T14291-2006 GB/T3091-1993,

GB/T3092-1993,GB3640-88





Specification:



Product Name

Galvanized Steel Pipe

Size

OD

20X30mm---400X600mm

Wall Thickness

0.5-25mm.

Length

Less than 12m

Steel material

Q195 → Grade B, SS330,SPHC, S185

Q215 → Grade C,CS Type B,SS330, SPHC

Q235 → Grade D,SS400,S235JR,S235JO,S235J2

Q345 → SS500,ST52

Standard

BS EN10296,BS EN10025,BS EN10297,BS6323,

BSEN10219,BSEN10217,GB/T13793-1992,GB/T14291-2006 GB/T3091-1993,

GB/T3092-1993,GB3640-88

Usage

Used For Structure, Accessorize And Construction

Ends

1) Plain

2) Beveled

3) Thread with Coupling or cap

End protector

1) Plastic pipe cap

2) Iron protector

Surface Treatment

1) Bared

2) Black Painted (varnish coating)

3) Galvanized

4) With Oiled

5) 3 PE, FBE, corrosion resistant coating

Technique

Electronic Resistance Welded (ERW )

Electronic Fusion Welded (EFW)

Double Submerged Arc Welded (DSAW)

Type

Welded Pipe

Welded Line Type

Longitudinal

Section Shape

Rectangular

Inspection

With Hydraulic Testing, Eddy Current , Infrared Test

Package

1) Bundle,

2) In Bulk

3) Bags

4) Clients' Requirements

Delivery

1) Container

2) Bulk carrier

Port of Shipment

Xingang Port,Tianjin, China

Date of Delivery

According To The Quantity And Specification Of Each Order upnegotiation.

Payment

L/C T/T





Usual sizes:



                         Sizes

Square steel pipe

Size

WT(mm)



   Rectangular steel pipe

 Size

WT(mm)

 20*20

 1.3-2.5

 20*30

 1.3-2.75

25*25

1.3-2.75

 20*40

 1.3-2.75

30*30

 1.3-2.75

 25*40

 1.3-2.75

40*40

 1.3-3.75

 30*50

 1.3-4.75

50*50

 1.3-5.75

 30*60

 1.3-4.75

60*60

 1.3-5.75

 40*50

 1.3-4.75

 70*70

 1.3-5.75

 40*80

 1.3-4.75

80*80

 1.3-5.75

 50*70

 1.3-4.75

90*90

1.3-5.75

 50*80

 1.3-4.75

100*100

 1.5-12

 60*90

 1.3-4.75

120*120

 2.5-12

 50*100

 1.3-5.75

140*140

2.75-16

 50*150

 1.3-5.75

150*150

2.75-16

 60*160

 1.3-5.75

160*160

3.0-16

100*150

 2.5-16

180*180

 3.0-16

100*200

 2.5-16

200*200

 3.0-16

100*250

 2.5-16

250*250

4.75-16

150*300

 4.5-16

300*300

4.75-16

200*300

 5.5-16

400*400

4.75-16

200*400

 5.5-16

500*500

4.75-16

400*600

 5.5-16



Unuaual sies can be customized !!!





Application:



1.used for transfer liquid, such as water, gas, oil

2. for greenhouse construction.

3.machinery industry

4.chemical industry

5.railway

6.automobile industry

7.bridge

8.container

9.sports facility

10.manufacturing industry





Competitive Advantage:



1.We can provide special specification pipes according to customers' requests.

2.We are also a manufacturer,so we can provide the products in conformity with your

   requirements rapidly.

3.Our company has rich technical force and advanced production equipment and coordinated

   advanced test equipment and method.

4.Our products is accord with the standard of API 5L, API 5CT of American Petroleum Institute,

   the standard of ASTM A252,ASTM A53 and ASTM A500 of American Society Testing and Materials

   and standard of EN10217 and EN10219 of the European Union and passed the certification of

   ISO90012008 International quality management system.
