Stainless Steel Coil Gutter Forming Machine, Semi-automated K Type Gutter Forming Machine
Detailed Product Description
| High Light: | steel forming machine,metal forming machinery |
||
|---|---|---|---|

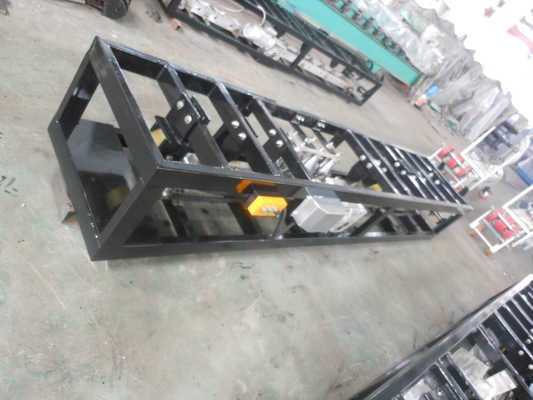

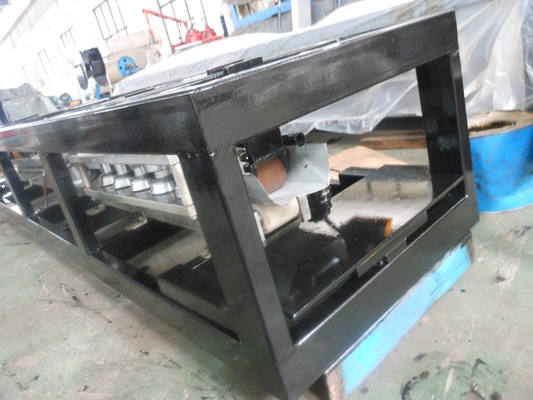

Stainless Steel Coil Gutter Forming Machine, Semi-automated K Type Gutter Forming Machine
Materials Formed
Coil Width:
5” Machine:300mm to 315mm
6” Machine:380mm to 381mm
7'' Machine: 450mm to 457.2mm
Thickness:
- Steel : 0.3mm to 0.6mm
- Aluminum : 0.5mm to 0.8mm
- Copper : 0.5mm to 0.7mm
SPECIFICATIONS:
Size: 5'',6'',7'',5''/6'',6''/7''
|
Specification Size |
GM5 |
GM6 |
GM7 |
GM5/6 |
GM6/7 |
|
Model |
Portable or stationary;Semi-automated: length control with limit switch |
||||
|
Driver system |
Bottom drive rollers and six top drive rollers for smooth even, non-twisting drive Hard chrome steel forming rollers Urethane power drive system |
||||
|
Shear |
Hand operated Quadra-shear with built-in crimper or Cutoff saw |
||||
|
Speed |
Standard 30 ft./min. Optional 45 or 60 ft./min. (aluminum) |
||||
|
Control |
Push button and related controls |
||||
|
Forming |
Stainless steel forming rollers |
||||
|
Electrical |
Configured to 110 volt or 220 volt |
||||
