Stainless Steel Coil Tubing ,ASTM A213 TP304 / TP304L / TP310S, ASTM ( ASME), EN, DIN, JIS

Stainless Steel Coil Tubing ASTM A213 TP304 / TP304L / TP310S, ASTM ( ASME), EN, DIN, JIS

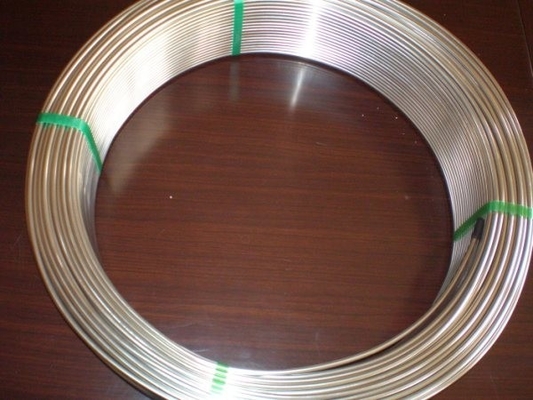

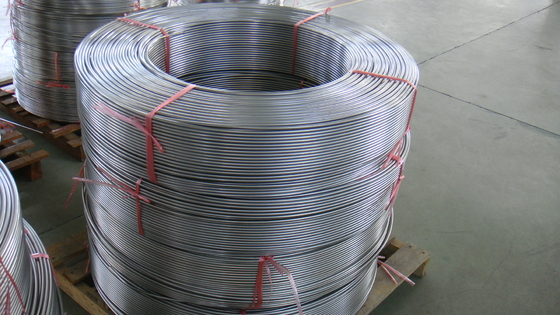

Stainless Steel Coil Tubes:
(1)Commodity name: Austenitic Stainless Steel Coil Tubes
(2)Process method: cold drawn/cold pilgered
(3)Material: TP304, TP304L,TP316, TP316L,dual grade 317L , 316Ti, TP321

(4)Standard: ASTM ( ASME) ,EN, DIN, JIS and etc.
(5)Specifications:a) O.D.:1/4" -3/4"
                  b) W.T.:0.028"- 0.065"
                  c) Length:customized, max:1000m/pc.
(6)Delivery conditions: annealed & pickled
(7)Applications: widely used in petrol, chemical, pharmacy, foodstuff, machinery, spaceflight,

war industry.

(8)boiler gas, hot water heating parts, hardware, shipping, power and other

industries.

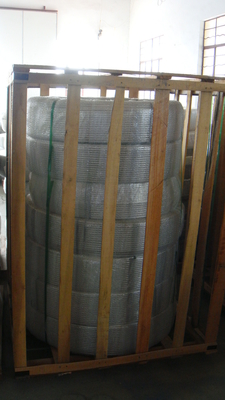

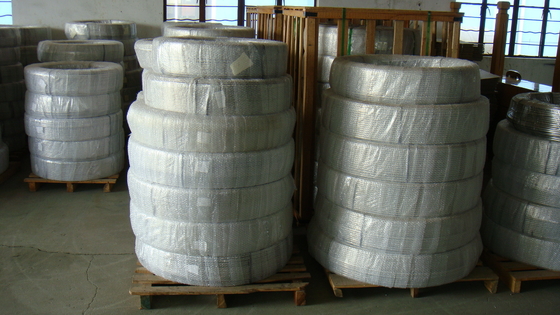

(9)Packing: packed by weaving bags, then protected by seaworthy wooden case.

Material Grade:

Standard Tubing Sizes:

Grades:

301, 304, 316, and others as specified by the customer.

Applications/Industries:

Bent and formed stainless steel tubing is used in a variety of applications, including:

• Manifold assemblies for the transportation industry
• Hydraulic fluid supply lines for industrial purposes
• Bumpers to protect OEM products
• Housing for water monitoring systems
• Tubular handles used in OEM instruments and machinery
