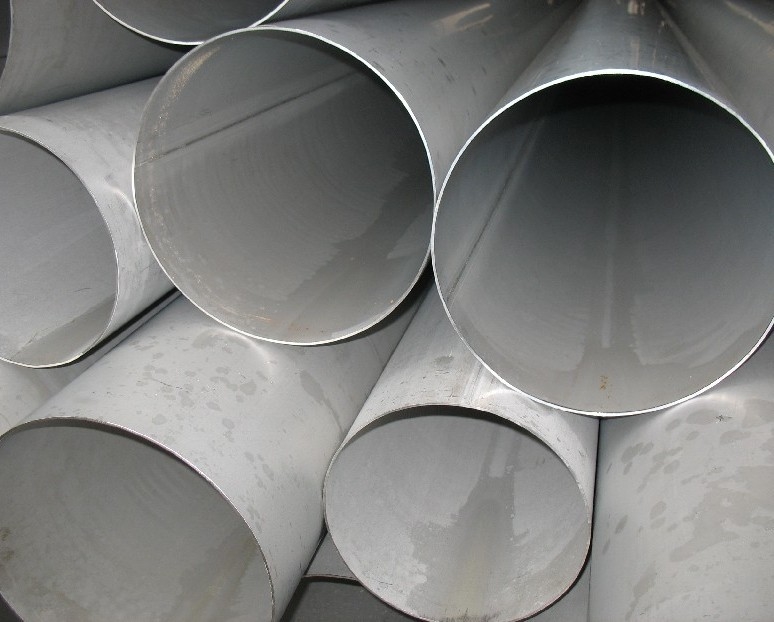

DIN 17457 Stainless Steel Welded Pipes / Large Seamless SS Tubes Schedule 10

Large Image : DIN 17457 Stainless Steel Welded Pipes / Large Seamless SS Tubes Schedule 10 Get Best Price

Product Details:

Place of Origin:	CHINA,KOREA,USA
Brand Name:	ZHONGLONG
Certification:	GOST9941-81,ISO 9001
Model Number:	DIN 17457 1.4301 / 1.4307 / 1.4401 / 1.4404
Russia Standard:	08Х18Н10 08Х18Н10Т
Outside Diameter:	14inch ,16inch ,18inch
Wall Thickness:	sch5, sch10,sch20
Standards:	EN 10204-3.1B GOST 9941-81
Applications:	energy and environmental industries

Contact Now

Detailed Product Description

High Light:

welded stainless steel pipe

welded steel pipes

Large Diameter Seamless Pipe

DIN 17457 Stainless Steel Welded Pipes / Large Seamless SS Tubes Schedule 10

Quick Detail:

Stainless Steel Welded Pipes :DIN 17457 1.4301 / 1.4307 / 1.4401 / 1.4404 acc. EN 10204-3.1B

Stainless Steel Welded Pipes GOST 9940-81 / GOST 9941-81 08Х18Н10, 08Х18Н10Т, 12Х18Н10Т

Description:

MATERIAL GRADE

American Standard

Austenitic Steel:

TP304,TP304L,TP304H,TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H,

TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…

Duplex Steel :

S32101,S32205,S31803,S32304,S32750, S32760

Others:TP405,TP409, TP410, TP430, TP439,...

European Standard

1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438,

1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501

Russia Standard

08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,

10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,

12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т,

SIZE DETAILS :

Production	Outside Diameter	Wall Thickness
Stainless Steel Welded Pipes	6.00mm to 1016mm	1mm to 35mm

Applications:

The products are applied to trades such as papermaking, chemical industry, shipbuilding, petroleum,

electricity, food, pharmacy, natural gas, metallurgry, architecture, sewage disposal, environmental

protection, aerospace,heat exchanger, etc. Extensively.

Specifications:

PRODUCT DETAILS :

Name	Stainless Steel Welded Pipes
Standard	ASTM, GB, JIS, DIN, EN, AISI
Material Grade	TP304/TP304L /TP316/ TP316L /TP316Ti /TP347/ TP347H /TP321/ TP321H / TP310S/TP310H / TP904L
	S31803/S32205 S32750 S32760 S32304 S32101
Brand Name	Dingxin
Outer Diameter	6mm-141.3mm
Thickness	0.6mm - 16mm; SCH10/40/80/160/XXS/STD
Length	As customers' request
Tolerance	According to the Standard.
Surface	180G, 320G, 400G Satin / Hairline
	400G, 500G, 600G or 800G Mirror finish
Test	UT,ET,HT,RT,ect,and others according to the standard,or as the requests of the customers
Certificate	GOST9941-81,ISO 9001:2008
Packing Details	Plastic bags, in bundles, wooden cases or depend on buyer’s requirement
Payment Terms	T/T, D/P at sight, L/C at sight
Shipment Term	FOB, C&F, CIF, EXW, etc.
Delivery Time	Depend on the quantity

Stainless Steel Grade:

Austenitic	Equivalent Standard			Typical chemical composition
ASME	AISI UNS	EN	JIS	C(max)	Cr	Ni	Mo	Cu
Austenitic Stainless Steel Tube/Corrosion Resistant
TP 304	S30400	1.4301	SUS 304	0.08	18.0	8.0
TP 304L	S30403	1.4307	SUS 304L	0.035	18.0	8.0
TP 304H	S30403	1.4948	SUS 304H	0.04-0.1	18.0	8.0
TP 321	S32100	1.4541	SUS 321	0.08	17.0	9.0
TP 321H	S32100	1.4878	SUS 321	0.04-0.1	17.0	9.0
TP 347	S34700	1.455	SUS 347	0.08	17.0	9.0
TP 347H	S34709		SUS 347	0.04-0.1	17.0	9.0
TP 316	S31600	1.4401	SUS 316	0.06	16.0	11.0
TP 316L	S31603	1.4404	SUS 316L	0.03	16.0	10.0	2.0
TP 316H	S31609		SUS 316H	0.04-0.1	16.0	11.0	2.0
TP 316Ti	S31635	1.4571	SUS 316Ti	0.03	16.0	10.0	2.0
TP 317	S31700	1.4438	SUS 317	0.08	18.0	11.0	3.0
TP 317L	S31703	1.4438	SUS 317L	0.03	18.0	11.0	3.0
TP 310	S31000	1.4841	SUS 310	0.08	24.0	19.0
TP 310S	S31008	1.4845	SUS 310S	0.1	24.0	19.0
TP 310H	S31009	1.4845	SUS 310H	0.08	24.0	19.0
TP 904L	N08904	1.4539	SUS 904L	0.02	19.0	23.0	4.0	1.0-2.0
High Temperature Stainless Steel/Heat Resistant Stainless Steel
TP 304H	S30403	1.4948	SUS 304H	0.04-0.1	18.0	8.0
TP 321H	S32100	1.4878	SUS 321	0.04-0.1	17.0	9.0
TP 347H	S34709		SUS 347	0.04-0.1	17	9.0
TP 309S	S30908	1.4833	SUS 309S	0.08	22	12.0
TP 310S	S31008	1.4845	SUS 310S	0.08	24	19.0
TP 310H	S31009	1.4845	SUS 310H	0.08	24	19.0
Duplex Stainless Stee/Austenitic Ferritic Steel
2101	S32101	1.4462	DP2	0.04	21	1.35	0.10	0.1
2205	S32205	1.4462	DP2	0.03	22	4.50	3.00
S31803	S31803	1.4462	DP2	0.03	21	4.50	2.50
2304	S32304	1.4362	DP2	0.03	21.5	3.00	0.05-0.6	0.6
2507	S32750	1.441	DP2	0.03	24	6.00	3.00	0.5
	S32760	1.4501	DP2	0.03	24	6.00	3.00	0.5

Standard Specification:

ASTM A213 / A213M - 11a:Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes

ASTM A269 - 10:Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service

ASTM A312 / A312M - 12:Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes

ASTM A789 / A789M - 10a:Standard Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Tubing for General Service

ASTM A790 / A790M - 11:Standard Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Pipe

German-Standards

DIN 17456 Seamless circular austenitic stainless steel tubes for general service
DIN 17457 Welded circular austenitic stainless steel tubes subject to special requirements
DIN 17458 Seamless circular austenitic stainless steel tubes subject to special requirements
DIN 17459 Seamless circular high-temperature austenitic stainless steel tubes
DIN 28180-85 Seamless steel tubes for tubular heat exchangers
DIN EN ISO 1127 Seamless stainless steel tubes (Dimensions and weights)

EN Standards

EN 10216-5 Welded Stainless Steel Tube
EN 10216-7 Seamless Stainless Steel Tube

Competitive Advantage:

1. We offer you our best price with good quality of the materials.

2. We will deliver the materials strictly according to the the delivery date noted on the contract.

3. We also always have the huge ready stock for sell.

The Flow Chart of Welded Stainless Steel Pipe Production Process:
