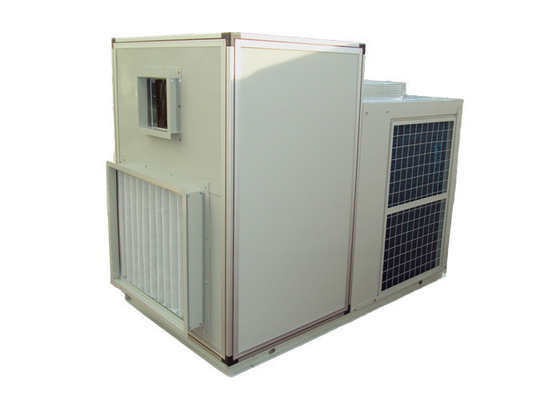

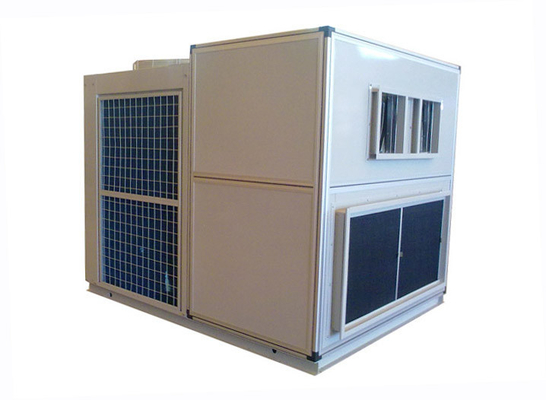

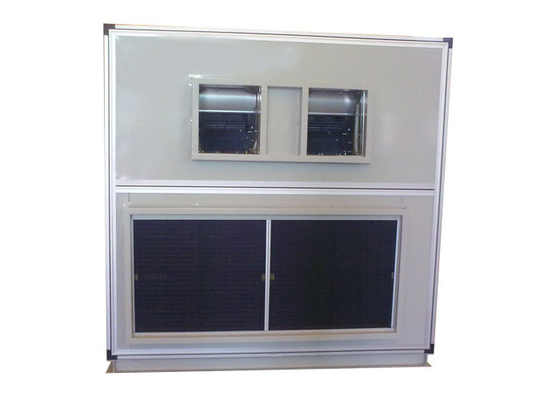

Galvanized Steel Sheet 44.5 kW Air Cooled AC Unit With Single Skin Panel
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Rooftop Air Conditioner | Application: | Air Conditioning |
|---|---|---|---|
| Cooling Capacity: | 44.5kw | Refrigerant: | R407C |
| Compressor: | Hermetic Scroll Type | Power Supply: | 380V/3PH/50Hz |
| Dimensions(L*W*H) Mm: | 2200 X 1800 X 2100 | Material: | Painted Galvanized Steel Sheet |
| High Light: | packaged rooftop air conditioners,roof mount air conditioner |
||
Air Cooled Package AC Unit, Single Skin Panel, Galvanized Steel Sheet
Specifications:
|
Model |
|
WKL18 |
|
|
Cooling capcity |
kW |
44.5 |
|
|
Power supply |
|
380V/3PH/50Hz |
|
|
Refrigerant |
|
R407C |
|
|
Air Volume |
m3/h |
9800 |
|
|
External static pressure |
Pa |
300 |
|
|
Compressor |
Type |
|
Hermetic Scroll |
|
Power |
kW |
15.1 |
|
|
Quantity |
pcs |
3 |
|
|
Supply fan |
Type |
|
centrifugal type |
|
Air volume |
m3/h |
9800 |
|
|
Motor power |
kW |
3 |
|
|
Drive method |
|
Belt drive |
|
|
Evaporator |
Type |
|
Copper tubes with aluminium fins |
|
Condenser |
Type |
|
Copper tubes with hydrophilic aluminium fins |
|
Condensing fan |
Fan type |
|
Low noise axial fan |
|
Motor power |
kW |
1.5 |
|
|
Drive method |
|
Direct drive |
|
|
Throttle method |
|
External balanced thermal expansion valve |
|
|
Electric controller |
|
LCD display screen, automatic microcomputer controller, failure alarm,balance operation time, Timer on/off,etc |
|
|
Net weight |
kg |
800 |
|
|
Dimensions(L*W*H) |
mm |
2200x1800x 2100 |
|
Description:
1. Flexible hermetic scroll compressor: brand Hitachi, Copeland, Sanyo,etc.
2. Independent refrigerant system: each compressor is equipped with an independent
refrigerant circuit, easy for energy regulation, save energy and ensure running reliablity.
3. Coppe tubes with aluminium fins heat exchanger, hydrophilic fins for condenser, copper fins
is also available.
4. Low maintainance fees, package design, save installation space: suitable for Asia, Middle east,
Africa, Europe,etc.
5. Microcomputer controller, simple interface, adjust temperature automatically, convenient for
operation and easy for maintainance.
6. Galvanized steel sheet, outside powder coated, single skin panel sheet.
7. Canvas flexible duct connection, high static pressure, suitable for industrial factory.
8. Refrigerant: R407C, R134a optional.
Applications:
|
Commercial buildings |
Supermarkets, large-scale shopping malls, entertainment centers, high-grade hotels, theaters,restaurants, hospitals, office buildings, etc. |
|
Industry factories |
Electronic factory,pharmaceutical factory, precision instrument factory, petrochemical factory,tobacco factory, cooling for production process, etc |
|
Public Places |
Airports, stations, exhibition halls, stadiums, museums, convention centers, apartments, church,etc |
