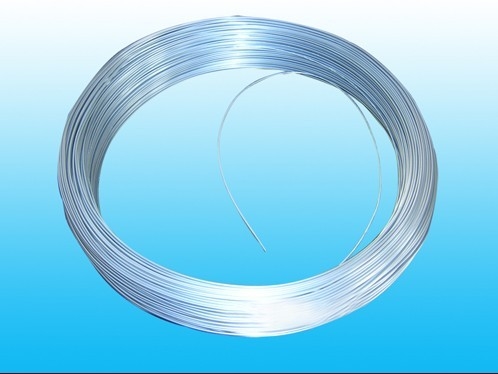

Rolled Galvanized Steel Tube

Rolled Galvanized Steel Tube

Galvanized Steel Tube
features: soft  and easy to bend
Section Shape:Round
outer diameter:6.35mm
wall thickness: 0.5mm

1.Materials: low carbon steel strip

2.Main use: widely used in wire-tube condenser, evaporators, refrigeration, chiller, heaters, freezer etc

3.outer diameter:6.35mm

4.wall thickness: 0.5mm

5. standard: GB/T 24187-2009

6.certification:also passed ISO9001 quality attestation system and ISO14001 Certificate of Enviroment

Management  System

7.surface treatment: coating zn and hot galvanized

8. Features: soft  and easy to bend

9.tensile strength: more than 290 Mpa

10.yield strength:more than 180 Mpa

11.elongation:more than 25%

12. salt fog-resisting test time:also more than 72 hours

13.place of origin:changzhou city,jiangsu province,china

14. port of loading:shanghai, China;

15. package:plastic cloth with coils, wooden boxes, iron pallets etc

16.payment terms:T/T,L/C etc

17. delivery:as contract

18. supply ability:30000 ton per year

19. brand:WUSHUN

Applications:

Zn coated steel tube mainly used in refrigerator, freezer ,condenser, evaporator and compressor etc,

It is made by low carbon steel strip.

Specifications:

Galvanized pipe corrosion performance index

Competitive Advantage:

The products have been export to Europe,America,the Middle of East,Africa and South-East of Aisa.Salt fog-

resisting test time from 72h to 1000h,corrosion resistance is great ,and also produce every specification by

customer's  requirment  .
