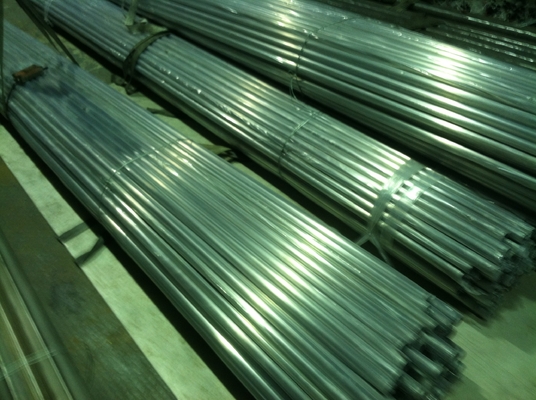

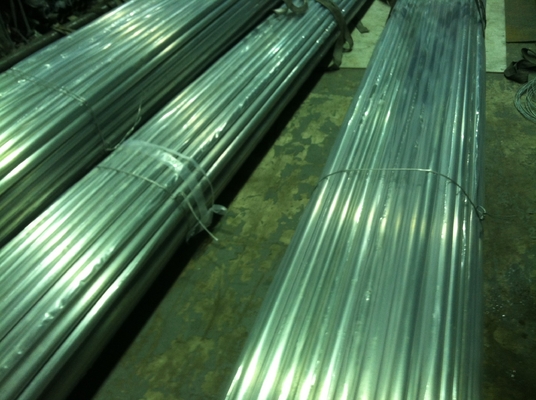

SS 201 304 316L welded stainless steel pipe
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Stainless Steel Pipe | Type: | Welded |
|---|---|---|---|
| Material: | 304 316L 316 | Length: | 6000mm |
| Thickness: | 0.3-3.0mm | Od Size: | 10-100mm |
| High Light: | stainless steel pipe astm,stainless steel welded tube |
||
Quick Detail:
food grade 316L stainless steel welded pipe
| name | food grade 316L stainless steel pipe | size | 10-100mm |
| wall thickness | 0.3-3.0mm | length | 6000mm |
| surface | both side polish 400# 600# | grade | 304 316L |
food grade 316L stainless steel pipe is widely used in food, medicine, health, chemical industry .etc area.
The food grade stainless steel pipe is polished in both side. we can't see the welded line according our eyes.
Description:
316L food grade stainless steel round pipe
|
Stainless Steel food grade Round Tube |
||
|
1 |
Item |
Welded Stainless Steel Food Grade Round Tube |
|
2 |
Material |
304/316L |
|
3 |
Outside Diameter |
9.50mm - 101mm (3/8'' - 4'') |
|
4 |
Thickness (mm) |
0.7, 0.8, 0.9, 1.0, 1.2, 1.5, 2.0mm 2.5mm 3.0mm |
|
5 |
Length |
6m (can be customized to meet customer requirement) |
|
6 |
Standard |
AISI/ASTM |
|
7 |
Finish |
polished inside and outside, 400# & 600# |
|
8 |
Packing |
standard export seaworthy packing or as required |
|
We can produce customized size and length according to customer requirement. |
||
Applications:
food grade stainless steel pipe is both side polished(inside and outside),it is widely used for foodstuff, Dairy & Beverage, personal care, Biotech, Pharmaceutical, Sanitary industrial, "High clean" industrial and so on^
Specifications
Food grade stainless steel refers to food machinery parts that come in direct contact with food, must conform to the requirements of food safety. Because food production process to use a lot of acid and alkali, and stainless steel containing chromium, unqualified stainless steel, will dissolve out of various price chromium, toxic; And required to limit the variety of metal impurity elements such as lead, cadmium content.
|
COMPOSITION ( IN PERCENTAGE ) |
||||||||||
|
Grade |
C (Max) |
Mn (Max) |
P (Max) |
S (Max) |
Si (Max) |
Cr |
Ni |
Mo |
N (Max) |
Cu/ Others |
|
304 |
0.08 |
2.00 |
0.045 |
0.030 |
1.00 |
18.00 - 20.00 |
8.00- 10.50 |
- |
0.10 |
- |
|
304L |
0.030 |
2.00 |
0.045 |
0.030 |
1.00 |
18.00 - 20.00 |
8.00- 12.00 |
- |
0.10 |
- |
|
316L |
0.030 |
2.00 |
0.045 |
0.030 |
1.00 |
16.00 - 18.00 |
10.00- 14.00 |
2.00 - 3.00 |
0.10 |
- |
|
321 |
0.08 |
2.00 |
0.045 |
0.030 |
0.75 |
17.00 - 19.00 |
9.00 - 12.00 |
- |
0.10 |
Ti5xC Min |
|
317L |
0.030 |
2.00 |
0.045 |
0.030 |
0.75 |
18.00 - 20.00 |
11.00 - 15.00 |
3.00 - 4.00 |
0.10 |
- |
|
310S |
0.08 |
2.00 |
0.045 |
0.030 |
1.50 |
24.00- 26.00 |
19.00 - 22.00 |
- |
- |
- |
Competitive Advantage
A) Small MOQ
B) Large supply ability
C) Can accept any complex inquiry
D) Stock available
E) Strong processing and warehousing service
F) Strict quality control
G) Professional negotiation
H) Reasonable price
I) Quick and stable delivery time
J) Good after-sales service
