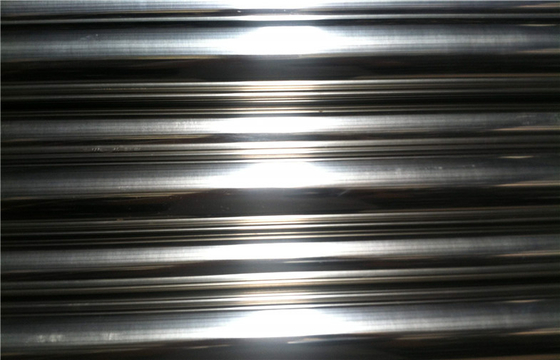

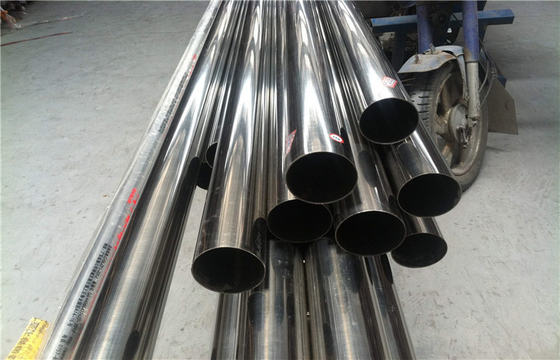

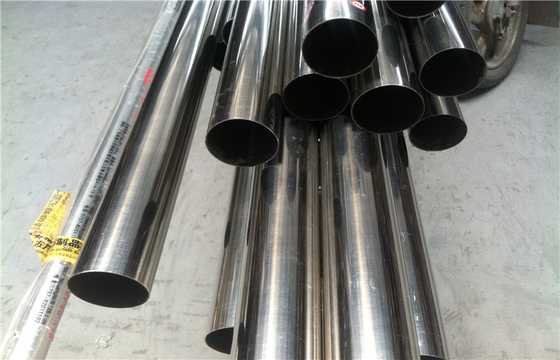

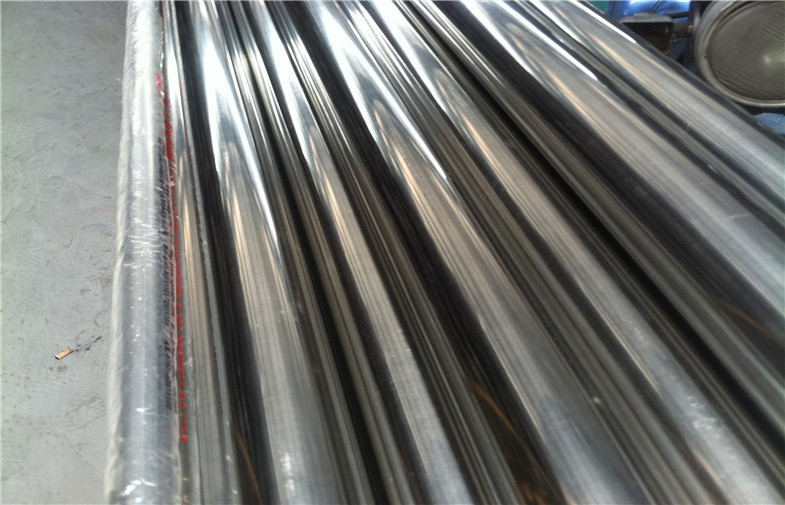

304 stainless steel welded pipe polished
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | stainless steel pipe astm,stainless steel pipe welding standards |
||
|---|---|---|---|
Quick Detail:
304 stainless steel welded pipe 400# polished
Grade 304,304l.316L.201
Size : 1/2’’-10’’
Thickness:0.5mm-3mm
Length:6000mm
Surface:400#,600#
Description:
Name | Stainless Steel Welded Pipe |
Standard | ASTM, GB, JIS, DIN, EN, AISI |
Material Grade | TP304 TP304L TP316 TP316L TP347 TP347H TP321 TP321H TP310 TP310S |
TP410 TP410S TP403 | |
S31803/S32205 S32750 S32760 | |
Outer Diameter | Welded Pipe: single slit(Φ8mm-Φ630mm); girth(Φ630mm-Φ3000mm), |
Thickness | Welded Pipe: single slit(0.5mm-25mm); girth(3mm-30mm) |
Length | Commonly 5.8 Meters or 6.0 Meters, or as customers' request |
Tolerance | According to the Standard, +/-10% Commonly. |
Surface | 180#, 320#, 400# Satin / Hairline, Bright Anneal, Pickle,400#, 500#, 600# |
Application | Petrochemical industry, chemical fertilizer industry, oil refining industry, |
Test | Flaring test, Flattening test, Bending Test, Hydraulic Test, Eddy Current test |
Applications:
Petrochemical industry, chemical fertilizer industry, oil refining industry, oil and gas industry, light industry and food industry, pulp and paper industry, energy and environmental industries.
Specifications:
Material Grade | 201 ( Ni 0.8%), | |||||
Outer Diameter | 8mm-250mm or as your requirement | |||||
Thickness | 0.15mm - 30mm or as your requirement | |||||
Length | 2.5m-- 8m or as customers' request | |||||
| a) Outer Diameter:+/- 0.2mm | |||||
b) Thickness: +/- 0.02mm | ||||||
c) Length: +/- 5mm | ||||||
Surface | 180G, 320G, 400G Satin / Hairline | |||||
| Material | 201 | 202 | 304 | 316 | 430 |
C | ≤0.15 | ≤0.15 | ≤0.08 | ≤0.08 | ≤0.12 | |
Si | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | |
Mn | 5.5-7.5 | 7.5-10 | ≤2.00 | ≤2.00 | ≤1.00 | |
P | ≤0.06 | ≤0.06 | ≤0.045 | ≤0.045 | ≤0.040 | |
S | ≤0.03 | ≤0.03 | ≤0.030 | ≤0.030 | ≤0.030 | |
Cr | 16-18 | 17-19 | 18-20 | 16-18 | 16-18 | |
N | 3.5-5.5 | 4-6 | 8-10.5 | 10-14 |
| |
Mo |
|
|
| 2.0-3.0 |
| |
| Material Item | 201 | 202 | 304 | 316 | |
Tensile Strength | ≥535 | ≥520 | ≥520 | ≥520 | ||
Yield Strength | ≥245 | ≥205 | ≥205 | ≥205 | ||
Extension | ≥30% | ≥30% | ≥35% | ≥35% | ||
Hardness (HV) | <253 | <253 | <200 | <200 | ||
Delivery time | A. 7 days if this goods is stock goods. | |||||
Competitive Advantage:
1. We are the specialized supplier of stainless steel materials, can provide the best price!
2. We have more than 10years experience in exporting products to worldwide countries, can provide the high quality products!
3. We have five thousand tons of stock in warehouses with abundant capital. Furthermore, we offer charge sales, credit and 7-day 24-hour services.
4. Wide excellent experiences with after-sale service.
5. Every process will be checked by responsible QC which insures every product's quality.
6. Professional packing teams which keep every packing safely.
7. Trial order can be done in one week.
8. Samples can be provided as your requirements
