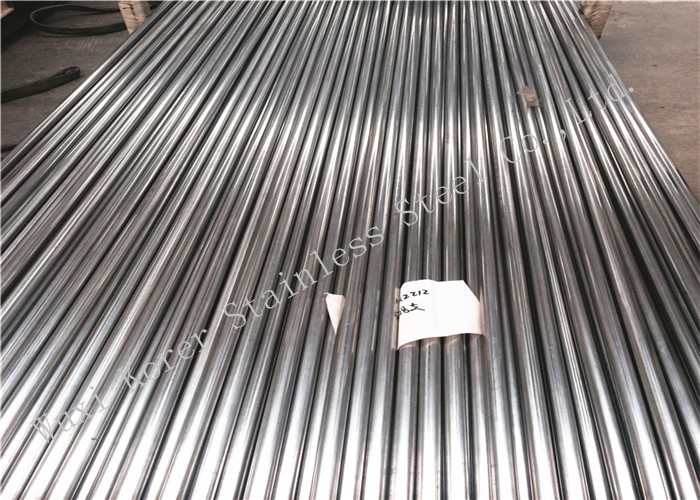

2 Inch 3 Inch Stainless Steel Welded Pipes Vessel Pressure Welding SS Tubes

Large Image : 2 Inch 3 Inch Stainless Steel Welded Pipes Vessel Pressure Welding SS Tubes Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	KORER
Certification:	ISO 9001 And Manufacture License Of Pressure Tube
Model Number:	OD: 6mm – 101.6mm, WT:0.3mm – 2.5mm

Payment & Shipping Terms:

Minimum Order Quantity:	1 Metric Tons Per Size
Price:	Negotiable
Packaging Details:	Wooden Boxes With Angle Steel Frame Or Seaworthy Bundle
Delivery Time:	15-45Days Or Depends on Quantity
Payment Terms:	T/T L/C
Supply Ability:	10000 Metric Tons Per Year

Contact Now

Detailed Product Description

Item Name:	Stainless Steel Welded Pipe	Material Grade:	TP304, TP304L, TP304H, TP310S, TP316, TP316L, TP316TI, TP316H, TP317L, TP321
Standard:	ASME SA249	Delivery Condition:	Bright Annealing Or Pickled
Out Diameter:	6mm-101.6mm	Wall Thickness:	0.3mm – 2.5mm
High Light:	tig welding stainless steel pipe , welded stainless steel tubing

ASME SA249 Stainless Steel Welded Pipe For Vessel Pressure As Heat Exchanger Tube

Quick detail:

Item	Stainless Steel Welded Pipe	Grade	TP304, TP304L, TP304H, TP310S, TP316, TP316L, TP316TI, TP316H, TP317L, TP321
Standard	ASME SA249	Delivery Condition	Bright Annealing Or Pickled
Brand Name	KORER	Application	Vessel Pressure

Description:

Material:

America		Germany		Japan
AISI	UNS	EN/DIN		JIS
304	S30400	1.4301	X5CrNi18-10	SUS304
304L	S30403	1.4306	X2CrNi19-11	SUS304L
310S	S31008	∕	∕	SUS310S
321	S32100	1.4541	X6CrNiTi18-10	SUS321
316	S31600	1.4401	X5CrNiMo17-12-2	SUS316
316L	S31603	1.4404	X2CrNiMo17-12-2	SUS316L
317	S31700	1.4436	X5CrNiMo17-13-3	SUS317
317L	S31703	1.4438	X2CrNiMo18-15-4	SUS317L

Standards:

ASTM A249 Standard Specification For Welded Austenitic Steel Boiler,Superheater, Heat-Exchanger And Condenser Tubes.
Item	Contents	Requirements
1	Materail	TP304, TP304L, TP304H, TP310S, TP316, TP316L, TP316TI, TP316H, TP317L, TP321
2	Welding method	TIG Welded
3	Chemical Composition	Acc.to SA249 and SA480
4	Heat Treatment	Bright Annealing Temperature 1040℃
5	Straightness	0.8mm/900mm
6	Tolerance	OD acc.to A1016/A1016M,WT +/-10%
7	Mechanical Property	●Mechanical Property:Enlongation 45%-65% ●Expansion Test:Acc.To ASTM A249 & ASTM A1016 ●Flange Test: Acc.To ASTM A249 & ASTM A1016 ●Flattening Test: Acc.To ASTM A249 & ASTM A1016 ●Hardness:HRB 75-90 ●NDT Test Or Leakage Test

Competitive Advantage:

•We have nearly 20 years of experiences in producing high quality Welded stainless steel Pipes / Tubes,We Are Approved By ISO 9001 And Manufacture License Of Pressure Tubes,The Raw Material are from Big Company,Such as POSCO,BAO STEEL,TISCO,CRUPP Etc.Our Good Quality Based On the high technical production line And Steady Technicians,We have win high reputation based on good quality With Our Customers.

Specificstion:

Commodity Name	Stainless Steel Tubes
Standard	ASTM A249
Material Grade	T TP304,TP304L,TP304H, TP310S,TP316,TP316L,TP316Ti,TP316H,
Material Grade	TP317,TP317L, TP321, TP321H
Outer Diameter	6mm-101.6mm
Wall Thickness	0.3mm – 2.5mm
Length	Depends on Customers’ Request
Tolerance	According to Standards
Leakage Test	ET, RT, UT Or Hydraulic Test Or Air Pressure Test Under Water
Main process	Welding, Annealing, Pickled
Certificate	ISO 9001:2008, Manufacture License Of Pressure Tube
Marking	Brand, Standard, Grade, Size, Length and Heat No. Or Depends On Customer.
Packing	Bundles With Plastic Bags, Wooden Box With Angle Steel Frame Or others
Payment Terms	T/T, L/C at sight
Price Term	EX-Works, CFR, CNF, CIF, FOB ETC
Delivery Time	Generally 15Days – 45Days Or Depends on the quantity and Customers’ Request
Capacity	1000 Tons Per Month

Applications:

The Pipes are Used For Boiler, Superheater, Heat-exchanger,Pressure Vessel and Condenser In Thermal Power Station, Nuclear Power Staition, Paper Sugar / Pulp Fertilizers, Petrochemical Industry Etc.
