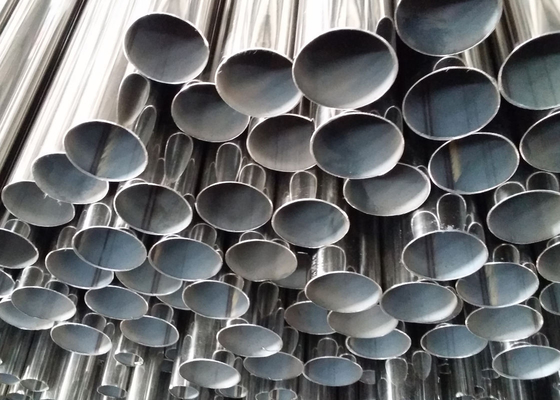

Acid Resisting 304 Stainless Steel Welded Pipe / Tubing For Strainers Core
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Materia: | Ss304/304L/316/316L Stainless Steel, Mild Steel, Aluminum, Copper, Monel, Hastelloy, Inconel, Titanium, Etc. | Perforation Patterns: | Straight, Centers, Staggered |
|---|---|---|---|
| Seam Styles: | Straight Weld, Spiral Weld, Spiral Welded Louvered | Wall Thickness: | Customized |
| Name: | Support Core For Strainers/ Ss304/304L/316/316L Stainless Steel Welded Pipe | ||
| High Light: | spiral welded stainless steel pipe,welded stainless steel tubing |
||

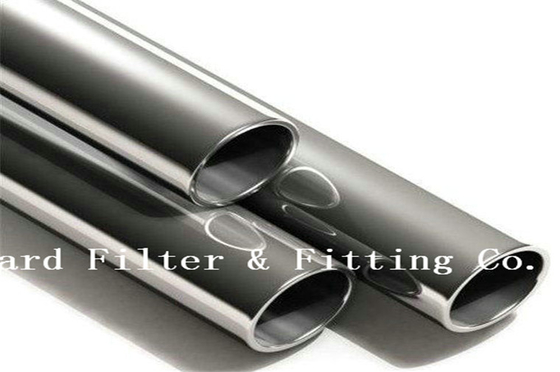

Support Core for Strainers/ Ss304/304L/316/316L Stainless Steel Welded Pipe
Description:
Material: Ss304/304L/316/316L stainless steel, Mild steel, Aluminum, Copper, Monel, Hastelloy, Inconel, Titanium, etc.
Seam Styles: Straight Weld, Spiral Weld, Spiral Welded Louvered
Tube Diameter(Round): 1/4’’-12’’ (6.35 ～ 304.8mm)
Wall Thickness: 0.5～2.5mm (various types can be customized )
Length: Customized
Uses:
(1) Protective sleeve for sand control screens
(2) Support core for strainers
(3) Purolator suction strainers
(4) Acoustical dampening
(5) Perforated tubes for oil well
(6) Exhaust tubes, Muffler tube
(7) Filtration / Separation Tubes (e.g center tube for air, oil, fuel, gas filters)
(8) Decorative items
(9) Gas / Liquid / Vapor/ Light Diffusion
(10)Structural Members
(11) EMI shielding
(12) Safety guards
(13) Grills or trim
(1) Diameter and wall thickness:
|
Tube Diameter inch |
Thickness (Ga) |
24 |
22 |
20 |
19 |
18 |
16 |
14 |
13 |
12 |
11 |
|
inch |
0.024 |
0.030 |
0.036 |
0.042 |
0.048 |
0.060 |
0.075 |
0.090 |
0.105 |
0.120 |
|
|
mm |
0.61 |
0.76 |
0.91 |
1.06 |
1.21 |
1.52 |
1.90 |
2.28 |
2.66 |
3.04 |
|
|
11/16 - 1-1/8 |
17.5 - 28.5 |
|
|
|
|
|
|
|
|
|
|
|
1-1/16 - 1-1/4 |
27.0 - 31.7 |
|
|
|
|
|
|
|
|
|
|
|
1-5/16 - 1-3/4 |
33.3 – 44.5 |
|
|
|
|
|
|
|
|
|
|
|
1-13/16 - 2-1/4 |
46.0 – 57.2 |
|
|
|
|
For |
Spiral |
Bound |
Tubes |
|
|
|
2-5/16 - 2-5/8 |
58.7 - 66.7 |
|
|
|
|
|
|
|
|
|
|
|
2-11/16 - 2-7/8 |
68.3 - 73.0 |
|
|
|
|
|
|
|
|
|
|
|
2-15/16 - 3-1/2 |
74.6 - 88.9 |
|
|
|
|
|
|
|
|
|
|
|
3-9/16 - 4-1/2 |
90.5 - 114.3 |
|
|
|
|
|
|
|
|
|
|
|
4-9/16 - 5-1/2 |
115.9 - 139.7 |
|
|
|
|
|
|
|
|
|
|
|
5-9/16 - 8-1/2 |
141.3 - 215.9 |
|
|
|
|
|
|
|
|
|
|
* The blue area shows the availability for the spiral bound/welded tubes.
(2) Tolerances:
|
Item |
Unit |
Diameter Range of Tubes |
||||
|
Inch |
<1.5 |
≥1.5～<2.5 |
≥2.5～<4.0 |
≥4.0～<6.0 |
≥6.0 |
|
|
mm |
<38.1 |
≥38.1～<63.5 |
≥63.5～<101.6 |
≥101.6～<152.4 |
≥152.4 |
|
|
Diameter Tolerance |
Inch |
±0.010 |
±0.010 |
±0.014 |
±0.016 |
±0.020 |
|
mm |
±0.25 |
±0.25 |
±0.35 |
±0.40 |
±0.51 |
|
|
Roundness |
Inch |
0.008 |
0.008 |
0.012 |
0.016 |
0.02 |
|
mm |
0.2 |
0.2 |
0.3 |
0.4 |
0.51 |
|
|
Wall Thickness |
Inch |
±0.0008 |
±0.0008 |
±0.0008 |
±0.02 |
0.02 |
|
mm |
±0.02 |
±0.02 |
±0.02 |
±0.051 |
±0.051 |
|
|
Straightness of the tubes |
Inch/foot |
0.012 |
0.012 |
0.015 |
0.018 |
0.018 |
|
mm/meter |
1 |
1 |
1.25 |
1.5 |
1.5 |
|
|
Welded Seam |
Inch |
0.008 |
0.008 |
0.012 |
0.012 |
0.012 |
|
mm |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
|
|
Length Tolerance |
Inch |
0.02 |
0.02 |
0.02 |
0.03 |
0.04 |
|
mm |
0.51 |
0.51 |
0.51 |
0.76 |
1 |
|
|
End Parallel |
Inch |
0.008 |
0.01 |
0.014 |
0.02 |
0.032 |
|
mm |
0.2 |
0.25 |
0.35 |
0.51 |
0.81 |
|
Note: Special specifications can be customized!
We can provide samples for free!
