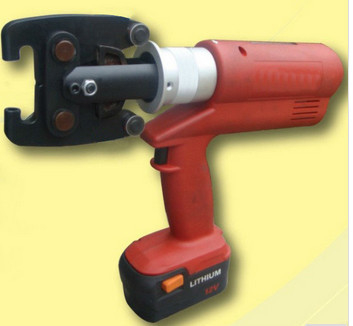

HVAC Refrigeration Tools Rothenberger Electro-hydraulic Stainless Steel Press Fitting Pipe System
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Assembly Tools | Pipe Standard: | GB/T 19228.2-2003, BS EN 10312 And JIS G3448 |
|---|---|---|---|
| HS Code: | 8203400000 | Material: | Stainless Steel |
| Export Markets: | Global | Sealing Ring Standard: | GBT 19228.3-2003, EN681-1:1998 |
| High Light: | refrigeration equipment,refrigeration and air conditioning tools and equipment |
||
HVAC Refrigeration Tools Rothenberger Electro-hydraulic Stainless Steel Press Fitting Pipe System
Description
1. Press Fitting and pipe;
2. Replace current pipe fittings;
3. GB1 test 5MPa(725PSI);
4. Easy install
5. 100% inspection.
Stainless steel press fitting and pipe system
Water working pressure high to 1.6MPa (232psi);
Only need 8 second to finish install a connector, very easy install;
Perfect choice to replace traditional pipe fitting.
Stainless Steel Press Fitting Pipe System
Hopewell press fitting system joins pipe without welding or bolting, can be widely used in cold and hot water supply, heating supply, fire protection, medicinal gas, industrial petroleum pipeline system etc. It has already replaced welding fittings in most Europe countries, Asia countries, America, Australia and some other countries.
Sizes range:
The norminal diameters are: DN15, 20, 25, 32, 40, 50, 65, 80 and DN100, including GB 1 and GB 2.
GB 1 series is same size as EN10312, out diameters are: 18, 22, 28, 35, 42, 54, 76.1, 88.9, 108mm.
GB 2 series is same size as JIS G 3448, out diameters are: 15.88, 22.22, 28.58, 34.00, 42.7, 48.6, 76.1, 88.9, 108mm.
The norminal diameters are: DN15, 20, 25, 32, 40, 50, 65, 80 and DN100, including GB 1 and GB 2.
GB 1 series is same size as EN10312, out diameters are: 18, 22, 28, 35, 42, 54, 76.1, 88.9, 108mm.
GB 2 series is same size as JIS G 3448, out diameters are: 15.88, 22.22, 28.58, 34.00, 42.7, 48.6, 76.1, 88.9, 108mm.
| GB Ⅰ(EN10312) | GB Ⅱ(JIS G3448) | ||||||
| Item No. | Nominal Dia. | Diameter | Thick | Item No. | Nominal Dia. | Diameter | Thick |
| HW015B | DN15 | 18 | 1 | HW015A | DN15 | 15.88 | 0.8 |
| HW020B | DN20 | 22 | 1.2 | HW020A | DN20 | 22.22 | 1 |
| HW025B | DN25 | 28 | 1.2 | HW025A | DN25 | 28.58 | 1 |
| HW032B | DN32 | 35 | 1.5 | HW032A | DN32 | 34 | 1.2 |
| HW040B | DN40 | 42 | 1.5 | HW040A | DN40 | 42.7 | 1.2 |
| HW050B | DN50 | 54 | 1.5 | HW050A | DN50 | 48.6 | 1.2 |
| HW065B | DN65 | 76.1 | 2 | HW065B | DN65 | 76.1 | 2 |
| HW080B | DN80 | 88.9 | 2 | HW080B | DN80 | 88.9 | 2 |
| HW100B | DN100 | 108 | 2 | HW100B | DN100 | 108 | 2 |
| Note | Standard pipe length is 6m. Other lengths and specifications can be customized according to correspondents' needs. | ||||||
Standard:
Press fitting standard: GB/T 19228.1-2003, DVGW W534-1995 and JWWA G116
Pipe standard: GB/T 19228.2-2003, BS EN 10312 and JIS G3448
Sealing ring standard: GBT 19228.3-2003, EN681-1:1998
Technical information:
-- Material: Stainless steel 304 and 316 available.
-- Max working pressure 1.6MPa (equal to 232 psi),
Press fitting standard: GB/T 19228.1-2003, DVGW W534-1995 and JWWA G116
Pipe standard: GB/T 19228.2-2003, BS EN 10312 and JIS G3448
Sealing ring standard: GBT 19228.3-2003, EN681-1:1998
Technical information:
-- Material: Stainless steel 304 and 316 available.
-- Max working pressure 1.6MPa (equal to 232 psi),
testing water pressure: 2.5MPa for JIS sizes (equal to 362.5psi), and 5MPa for EN10312 sizes.
-- Working temperature from -20 to 110 degree centigrade (with Chlorinated butyl rubber O ring),
-- Suit medium: cold water, hot water, compressed air, gas, oil etc
-- Working temperature from -20 to 110 degree centigrade (with Chlorinated butyl rubber O ring),
-- Suit medium: cold water, hot water, compressed air, gas, oil etc
Press fitting range:
Coupling -- Equal coupling, Reducing coupling, Adjustable coupling, coupling with screw;
Elbow -- equal elbow, reducing elbow, elbow with plain end, elbow with screw;
Tee -- equal tee, reducing tee, tee with screw;
Other fittings -- Pipe cap, pipe bridge and Flange.
Sealing ring material:
Option 1. CIIR(Chlorinated butyl rubber): Sanitary for human consumption, not oil resistant. Suitable for drinking water, tap water, hot and cold water, sanitary air.
Option 2. EPDM(Ethylene-Propylene-Diene Monomer) : Sanitary for human consumer, not oil resistant. Suitable for drinking water, tap water, hot and cold water, sanitary air and compressed gas.
Option 3: FKM(Fluororubber): It is both oil proof and sanitary. suitable for edible oil, compressed air. But a little more expensive than CIIR, EPDM and NBR.
Advantages of Press Fitting Pipeline:
(1). Corrosion-resistant
(2). Easy Installation
(3). Load High Working Pressure(1.6MPa / 232PSI)
(4). Shock Resistant
(5). Suitable for In-wall Installation
(6). Low Comprehensive Cost
For press fittings packing: we pack press fittings in polybag to prevent surface scratch, and then pack them inside brown export cartons.
For pipe packing: we pack the stainless steel pipes inside polybag, so that it can prevent surface scratch, and keep dirts away from the inside of the pipes.
