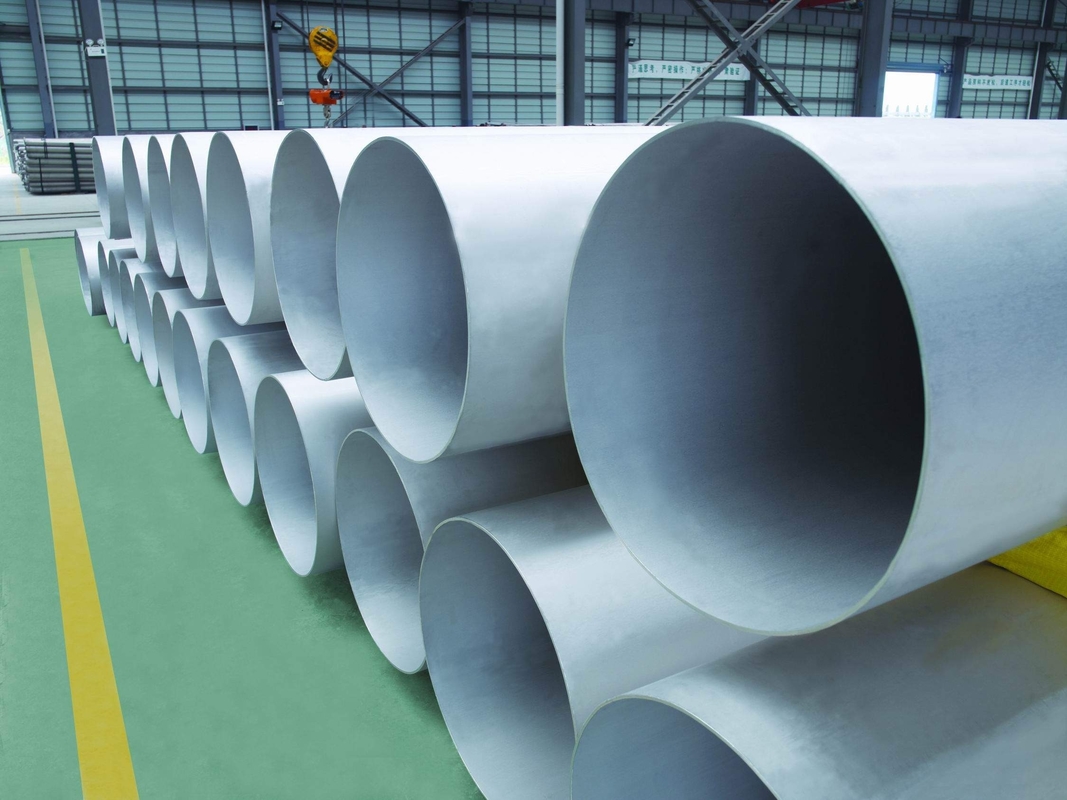

Stainless Steel Welded Pipes FOR American Standard, Europen Standard, Russia Standard
|
Product Details:
|
Detailed Product Description
| High Light: | alloy steel seamless pipes,stainless steel seamless tubes |
||
|---|---|---|---|
Stainless Steel Welded Pipes FOR American Standard, Europen Standard, Russia Standard
DIN 17455 / 17457 class 1 / 2 - AD-W2 / AD 2000 W2 / W 10
Grades 1.4301, 1.4541, 1.4571
Stainless Steel Welded Pipe GOST 9940-81 / GOST 9941-81 08Х18Н10, 08Х18Н10Т, 12Х18Н10Т
Stainless Steel Welded Pipe DIN 17457 1.4301 / 1.4307 / 1.4401 / 1.4404 acc. EN 10204-3.1B
Allied Rainbow Group deal with stainless steel welded pipe and tube already more than 10 years,
every year sell more than 5000 tons of stainless steel pipe and tube. Our client already cover more than 45 countries.
Our stainless steel seamless pipe and tube was widly used in Mining, Energy, Petrochemical, Chemical
Industry, Food plant, Paper plant, Gas and Fluid Industry etc.
Standard Specification:
ASTM A249 / A249M - 10a Standard Specification for Welded Austenitic Steel Boiler, Superheater,
Heat-Exchanger, and Condenser Tubes
ASTM A269 - 10:Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing
for General Service
ASTM A312 / A312M - 12:Standard Specification for Seamless, Welded, and Heavily Cold Worked
Austenitic Stainless Steel Pipes
ASTM A358/A358M-08a:Standard Specification for Electric-Fusion-Welded Austenitic
ASTM A778 - 01(2009)e1:Standard Specification for Welded, Unannealed Austenitic Stainless
Steel Tubular Products
ASTM A789 / A789M - 10a:Standard Specification for Seamless and Welded Ferritic Austenitic Stainless Steel Tubing for General Service
ASTM A790 / A790M - 11:Standard Specification for Seamless and Welded Ferritic Austenitic Stainless Steel Pipe
Others like BS, JIS , DIN , EN , GOST standard we all can supply .
Material Grade:
|
American Standard |
Austenitic Steel: TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L… Duplex Steel : S32101,S32205,S31803,S32304,S32750, S32760 Others:TP405,TP409, TP410, TP430, TP439,... |
|
Europen Standard |
1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501 |
|
Russia Standard |
08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ |
Size Range:
|
Production |
Outside Diameter |
Wall Thickness |
|
Seamless Pipe |
6.00mm to 830mm |
0.5mm to 48mm |
Tolerances
| AD / OD | Wand / Wall | |
| EN ISO 1127 | D1 +/-1,5 %, mind. +/-0,75 mm D2 +/-1 %, mind. +/-0,50 mm D3 +/-0,75%, mind. +/-0,30 mm D4 +/-0,5 %, mind. +/-0,10 mm |
T1 +/- 15 %, mind. +/-0,60 mm T2 +/- 12,5%, mind. +/-0,40 mm T3 +/- 10 %, mind. +/-0,20 mm T4 +/- 7,5 %, mind. +/-0,15 mm |
| ASTM A 999 | < 48,26 mm +0,40/-0,79 mm > 48,26 < 114,3 mm +0,79/-0,79 mm > 114,3 < 219,1 mm +1,59/-0,79 mm |
nicht spezifiziert / not specified +% / -12,5% |
Final Finishing:
Solution Annealed & Pickled
Technical Delivery Conditions, Welded
Welded stainless steel tubes and pipes technical delivery conditions according to
DIN 17455 / 17457 class 1 / 2 - AD-W2 / AD 2000 W2 / W 10
Grades 1.4301, 1.4541, 1.4571
ASTM / ASME A / SA 312
Grades TP304/304L / TP316/316L
NACE MR 0175 / NFA 49117
Grades Z2CN18.10, Z8CNT18.10, Z2CND17.12
