Carbon steel or low alloy steel CO2 MIG welding wire for Construction Building Materials
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Place Of Origin: | Shandong,China | Material: | CO2 |
|---|---|---|---|
| Application: | Low Carbon Steel Structure | Package Size: | 1kg |
| Shielding Gas: | 100% Co2; 75-95% Ar + Rest Co2 | Diameter:: | 0.8mm-1.6mm |
| Flux Content: | 0 | Mechanical Properties:: | Yield Strength0.2(Mpa) |
| Weight:: | Kg 5kg 15kg 20kg 250kg | Spool Size:: | D100mm |
| Metal:: | Deposited Metal | ||
| High Light: | CO2 MIG welding wire,structural building materials |
||

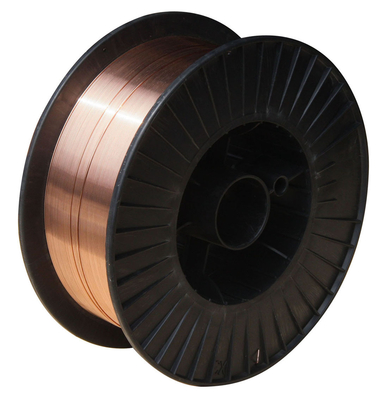

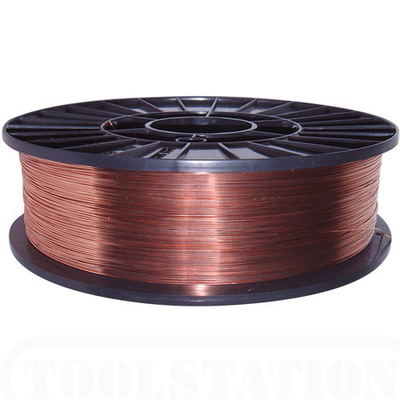

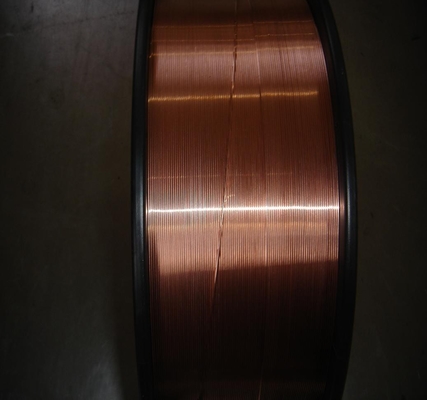

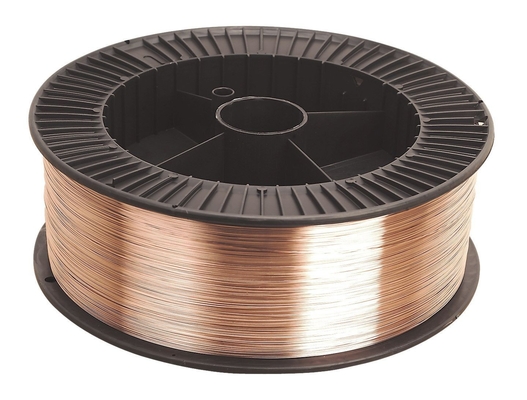

Carbon steel or low alloy steel CO2 MIG welding wire for Construction Building Materials
1. Description:
CO2 MIG welding wire ER70S-6 is made of excellent carbon steel or low alloy steel by drawing, straightening
and copper coating, has variousexcellent feature. using CO2 or argon-rich as a protective gas
welding.
2. Size:
|
Wire Size |
Spool Size |
Package Size |
|
0.8mm 1.0mm |
D100mm D200mm D300mm K300mm |
1kg 5kg 15kg 20kg 250kg 350kg |
3. Chemical Composition:
Standard: AWS A5.18 / GB : ER50-6 / AWS : ER70S-6 / DIN : SG2
|
chemical composition
|
C |
Mn |
Si |
P |
S |
Cr |
Ni |
Cu |
|
0.06~0.15 |
1.40~1.85 |
0.80~1.15 |
≤0.025 |
≤0.035 |
- |
- |
≤0.50 |
|
|
Mechanical Properties
|
Yield strengthσ0.2(Mpa)
|
Tensile strengthσb(Mpa)
|
Elongation δ5(%) |
AKV (J) |
||||
|
≥420 |
≥500 |
≥22 |
≥27(-30°C) |
|||||
|
Shielding Gas |
100% Co2; 75-95% Ar + Rest Co2 |
|||||||
4. Diameter of Wire & Reference Current (DC+):
|
Diameter (mm) |
φ0.8 |
φ1.0 |
φ1.2 |
φ1.6 |
All Position Welding |
|
F Current (A) |
40~180 |
50~220 |
80~350 |
170~550 |
|
|
Please be noted |
The wires must be kept in dry. Open the package only when welding to avoid rusting. |
||||
|
Before welding, please clean oil, rust, water, etc. from the work piece. |
|||||
5. Feature:
1. It has excellent mechanical performance such as fast melting rate, high depositing efficiency,
stable arc, little spatter, beautiful seam.
2. The slag is fluid and when hardened it is compact and easy to remove
3. Welding of carbon steel, low alloy steel & 500Mpa grade low alloy high intensity steel structures, etc. Such as vehicle, building, bridge, ship building, pressure vessel industry and pipeline etc.
4. It is suitable for all position welding of steel sheets and irregular joints even under unfavorable conditions.
5. High-speed welding of light gauge plate and pipe line steel
