galvanized wire/ hot dipped galvanized wire/galvanized iron wire
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | galvanized wire,hot dipped galvanized wire,galvanized iron wire |
||
|---|---|---|---|
- Galvanized Iron Wire
1) Type: electro galvanized, hot dipped galvanized
2) Material: low carbon steel wire, Q195
3) Wire Dia.: 0.2mm-6.0mm
4) Zinc Coating: 15-300g/m2
5) Tensile Strength: 350-700N/mm2
6) Weight: 0.1kgs-800kgs each coil
7) Packing: wrapped with plastic film inside,hessian cloth or woven bag outside

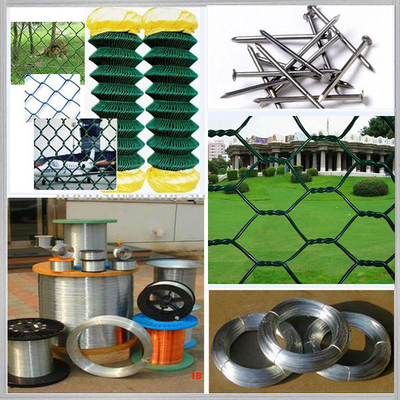

8)Galvanized iron wire uses in weaving of wire mesh, fencing for expressway and construction.
Specifications:
Galvanized Iron Wire | |||
Wire Gauge | SWG(mm) | BWG(mm) | Metric(mm) |
8 | 4.05 | 4.19 | 4.00 |
9 | 3.66 | 3.76 | 4.00 |
10 | 3.25 | 3.40 | 3.50 |
11 | 2.95 | 3.05 | 3.00 |
12 | 2.64 | 2.77 | 2.80 |
13 | 2.34 | 2.41 | 2.50 |
14 | 2.03 | 2.11 | 2.50 |
15 | 1.83 | 1.83 | 1.80 |
16 | 1.63 | 1.65 | 1.65 |
17 | 1.42 | 1.47 | 1.40 |
18 | 1.22 | 1.25 | 1.20 |
19 | 1.02 | 1.07 | 1.00 |
20 | 0.91 | 0.84 | 0.90 |
21 | 0.81 | 0.81 | 0.80 |
22 | 0.71 | 0.71 | 0.70 |
23# to 34# also available for galvanized iron wire. | |||
