A5056 Steel Copper Ball Cages self - lubrication ball cage bearing for punching mold
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | ball bearing cage,automobile die |
||
|---|---|---|---|

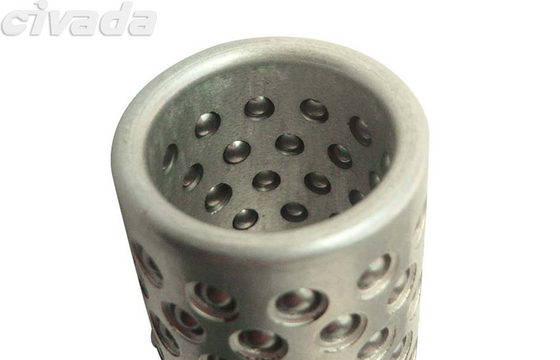

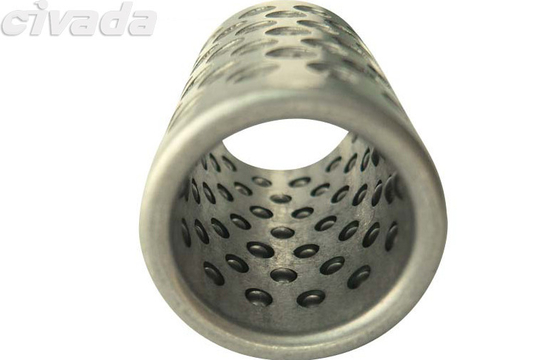

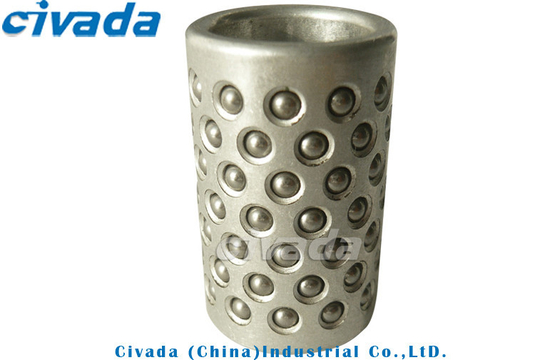

A5056 Steel Copper Ball Cages self - lubrication ball cage bearing for punching mold
Ball cage / Ball retainer / Ball bushing
Ball retainer : A5056 ( Aluminum )
Ball : SUJ2(52100)(1.2067)
O-ring
1. Material
Ball material : SUJ2 / Steel
Ball cage material : Plastic / Alumimum / Copper / C3604
2. Specification
Ball Diameter : 1mm , 2mm , 3mm , 4mm , 5mm , 6mm
Bushing Diameter : ID ≥ 3mm ,OD ≥ 5mm
Length Arrange : ≥ 10mm
|
Material |
plastic,Aluminum.copper |
|
Place of Origin |
Guangdong, China (Mainland) |
|
Brand Name |
Civada |
|
Model Number |
HBR,HBC,HBA series |
|
Shaping mode |
punching mold |
|
Colour |
White.blue.brass,purple |
|
Materail |
plastic,Aluminum.copper |
|
Hardness |
62~67 HRC,spherical degree is 0.25 UM |
|
Max. loading capacity |
30 N/mm2 |
|
Max. sliding speed |
6 m/s |
|
Friction coefficient |
0.01~0.08 |
|
Shrink fit |
0.01~0.002 mm |
|
Tolerance |
0~0.005 mm |
3 . Description:
- low friction coefficient
- Able to move in both radial and axial directions
- High precision, working in high speed
- Different specs ,also can manufacture upon reques
- It can decrease fatigue damage causing by rolling contact and side damage on machine parts and prolong service life.
- Sound quality steel ball retainer with excellent performance of hardness,glossiness,buildiness,abrasion resistance,long service-life.
- Consistent quality control
- Made-to-order service available
- Material:SKD11,SKD61,SKD51,WS,HWS,HSS M-2,SKH-9, ASP23
Machinery & Equipments
- CNC machining center; CNC lathe; Normal lathe; CNC milling machine;
- General punching machine, CNC turning center; Wire EDM, etc.
- And we also can offer 4 or 5 axis-CNC center processes.
- General milling machine; General drilling machine; General planning and grinding machine
Applications:
- Punching Mold
- Automobile Die
- Suitable for different type of plastic bag making machine
- Can punching for 0.01mm single-layer material of plastic bag,paper, non-woven fabrics. PE, OPP, PO, PP, PVC, PPE, PPU, OPE film
Further Information
|
Testing |
Digital Height Gauge, caliper, Coordinate measuring machine, projection machine, |
|
QC |
1) Technicians self-check in production |
|
Main Markets |
North America, South America, Eastern Europe , West Europe , North Europe, |
Packing & Delivery
|
|
Package |
Coated with anticorrosive oil, packed in carton box |
|
Express |
DHL, FedEx, UPS, TNT,by Sea . |
Main products
- HSS punch ,Precision punch ,Ejector punch ,Punch ejector pins, Ball-lock punches, Punch retaine
- Die button
- Guide pillars ,Guide bushings ,Guide post set ,Ball cages
- Mold ejector pins ,Ejector sleeves
- Oiless bush , Bronze Wear Plate
Spot Light of CIVADA
· Factory opened more than 12 years
· Factory Size : 1,000-3,000 square meters
· Reserch & Development Group : 8 people
· Equipment & Machine : all imported precision ones
· Good reputation in Mold Components Area.
· One-step servise for your much time and cost .
· Complete quality management system .
