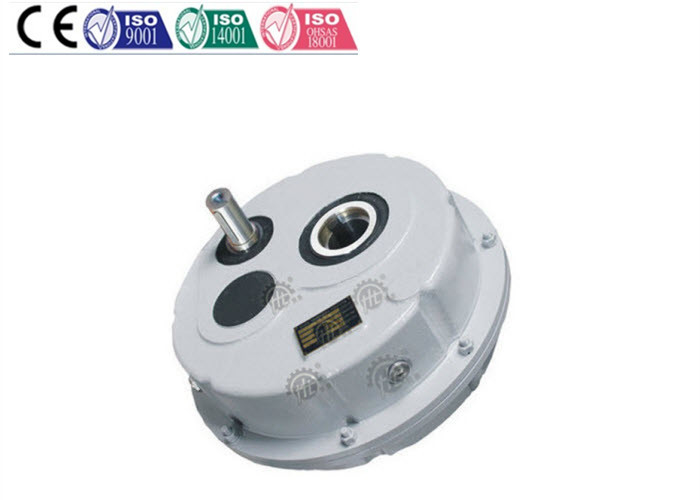

Shaft Mount Helical Gear Reducer Ratio 5 - 31 For Washing / Screening Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | helical speed reducer,Shaft mounted Gear Reducer |
||
|---|---|---|---|
Shaft Mount Helical Gear Reducer Ratio 5 - 31 For Washing / Screening Machine
Quick Details:
|
Model Number
|
HXG30-HXG125 |
|
Output shaft diameter
|
35-135MM |
|
Ratio
|
5-31 |
|
Input Speed
|
500-1400 RPM |
|
Output Speed
|
15.1-280RPM |
|
Rated Power
|
0.92-226 KW |
|
Output Torque
|
180Nm-17000 N.m |
|
|
|
Products benefits:
- CASE MATERIAL IS GG20 CASTING MATERIAL
- CASE HAVE MORE STRENGTH AND ESTHETIC VIEW
- PLACE FOR BEARINGS ARE MACHINED ACCORDING TO STANDARDS
- LONG LIFE CYCLE IS CONSIDERED FOR SELECTING BEARINGS
- GEARS MATERIAL IS SAE 8620 FORGING MATERIALS AND ISOTHERMIC TEMPERING IS APPLIED
- CARBURIZING IS APPLIED ACCORDING TO MODULE OF GEARS AND ADJUSTING HARDNESS DEPTH
- GRINDING AND SCRAPING ARE APPLIED TO GEARS
- SHAFT MATERIAL IS SAE 1050 STEEL AND TOLERANCES ARE ADJUSTED ACCORDING TO STANDARD NORMS
Applications:
Grinding Plant
Ultra Fine Vertical Grinding Mill
Mobile Jaw Crusher
VM – Vertical Grinding Mill
European Type Grinding Mill
Micro Powder Mill
Trapezium Mill
Raymond Mill
Ball Mill
European Hammer Mill
Washing & Screening Machine
Vibrating Screen
Belt Conveyor
Vibrating Feeder
Screw Sand Washing Machine
Wheel Sand Washing Machine
Specifications:
|
Model Number
|
Input shaft Diameter |
Output shaft hollow bore diameters:
|
Output torque range |
Torque arm length |
Input Speed |
Reduction Ratio:
|
|
Ta35-35D
|
19mm |
30mm
|
1000Nm |
220mm |
1400rpm
900rpm
500rpm |
5:1
7:1
10:1
12.5:1
15:1
20:1
25:1
31:1
|
|
Ta40-40D
|
24mm |
40mm
|
1350Nm |
240mm |
||
|
Ta45-45D
|
28mm |
45mm
|
2050Nm |
260mm |
||
|
Ta50-50D
|
42mm |
50mm
|
2100Nm |
280mm |
||
|
Ta60-60D
|
48mm |
60mm
|
3500Nm |
300mm |
||
|
Ta70-70D
|
48mm |
70mm
|
4900Nm |
320mm |
||
|
Ta80-80D
|
55mm |
80mm
|
6600Nm |
380mm |
||
|
Ta100-100D
|
55mm |
100mm
|
10500Nm |
520mm |
||
|
Ta124-125D
|
60mm |
125mm
|
16000Nm |
560mm |
Competitive Advantage:
1. HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi
Industry Zone, covering area 50000 square meters and 350 staff so far.
2. As the leader in gear reducer domestically, we are committed to R&D all the time. There are more
than 40 professional technical engineers. We had 49 items patents including 7 items of invention
patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent
and 5 items which are accepted by National SIPO wait for approval
3. According to the globalization strategy, we have established pre-sale,after-sale and whole-process
selling network. Relying on high quality products and perfect service, our products have been
successfully applied by more than 5000 customers.
