Galvanized Roller Shutter Door Frame Roll Forming Machinery with 8 - 12 m / min
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | shutter door roll forming machine,roller shutter forming machine |
||
|---|---|---|---|

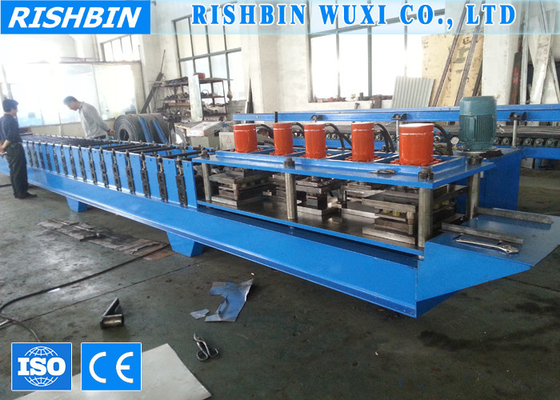

Galvanized Roller Shutter Door Frame Roll Forming Machinery with 8 - 12 m / min
Structure of door frame roll forming machinery
This door frame machinery includes: roll forming system, hydraulic system, PLC frequency conversion control system, counter, cutting system,decoiler.
Quick details of door frame roll forming machinery
| Use: | Roller shutter door | Material: | Galvanized sheet |
| Power(W): | 5.5kw | Weight: | 4.2T |
| Voltage: | 380v | Dimension(L*W*H): | 7.5*1.3*1.5 |
| After-sales Service Provided: |
Engineers available to |
Warranty: | 12 months |
| Color: | Green | Production Capacity: | 8-12m/min |
| Screen: | Color touch screen | Motor brand: | Famous in China |
| Design software: | Copra | Guarantee: | 1 year |
Working flow
Decoiling the sheet — Sheet guiding — Roll forming — Measure length Cutting the panel— panels to the supporte
Technical parameters of door frame roll forming machinery
| Main moter power | 5.5KW | |
| Hydraulic station power | 4KW | |
| Hydraulic oil pump | CB-E310 | |
| Sprocket | P-25.4 | |
| Roller station | 13 | |
| Yield strength | 32MPa | |
| Diameter of principal axis | 90MM | |
| Material of roller | 45#steel hard chrome plating | |
| Processing speed | 10-15m/min | |
| Thickness | 0.3-1.2 mm | |
| Installation dimension about(L*W*H) | 7.5*1.3*1.5M | |
| Total weight | 4.2T | |
All technical parameters can be changed,according to user's need.
Standard Export Packing
1*40 GP container ; main machine naked and fastened with iron wire in the container, rollers were painted with oil and packed with plastic film, electrics devices be packed with wooden box
Delivery Detail: 30 working days after received the deposit
