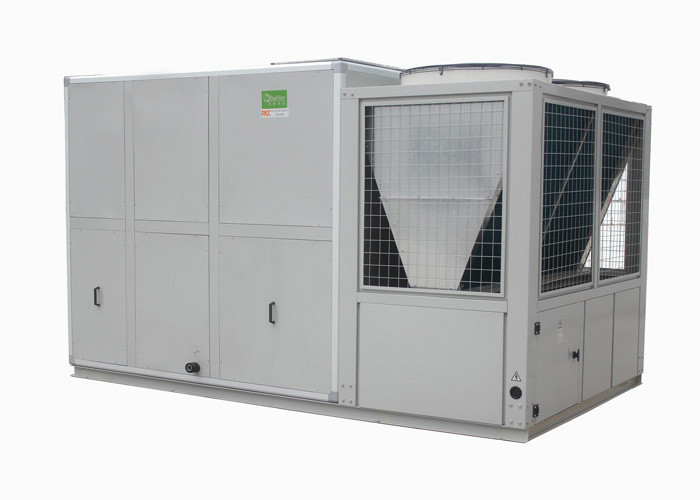

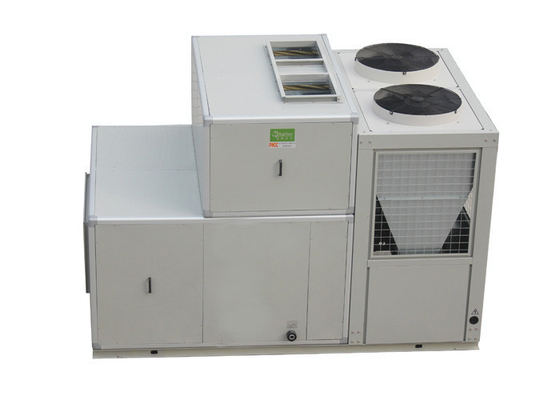

Packaged Air Cooled DX Rooftop Air Conditioner Units , Double Skin Galvanized Steel
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Rooftop Packaged Unit | Application: | Air Conditioning |
|---|---|---|---|
| Cooling Capacity: | 65Tons | Refrigerant: | R407C |
| Compressor: | Hermetic Scroll Type | Power Supply: | 440V/3PH/60Hz |
| Dimensions(L*W*H) Mm: | 5900 X 2150 X 2300 | Material: | Painted Galvanized Steel Sheet |
| High Light: | commercial rooftop air conditioner,roof mount air conditioner |
||
Packaged Air Cooled DX Rooftop Air Conditioner Units , Double Skin Galvanized Steel
Specifications:
|
Model |
|
WKL85 |
|
|
Cooling capcity |
kW |
230 |
|
|
Power supply |
|
440V/3PH/60Hz |
|
|
Refrigerant |
|
R407C |
|
|
Air Volume |
m3/h |
40000 |
|
|
External static pressure |
Pa |
500 |
|
|
Compressor |
Type |
|
Hermetic Scroll |
|
Power |
kW |
80.5 |
|
|
Quantity |
pcs |
7 |
|
|
Supply fan |
Type |
|
centrifugal type |
|
Air volume |
m3/h |
40000 |
|
|
Motor power |
kW |
18.5 |
|
|
Drive method |
|
Belt drive |
|
| Washable Prefilter | Nylon filter | ||
|
Evaporator |
Type |
|
Copper tubes with hydrophilic aluminium fins |
|
Condenser |
Type |
|
Copper tubes with hydrophilic aluminium fins |
|
Condensing fan |
Fan type |
|
Low noise axial fan |
|
Motor power |
kW |
4*2.2 |
|
|
Drive method |
|
Direct drive |
|
|
Throttle method |
|
External balanced thermal expansion valve |
|
|
Electric controller |
|
LCD display screen, automatic microcomputer controller, failure alarm,balance operation time, Timer on/off,etc |
|
|
Net weight |
kg |
2900 |
|
|
Dimensions(L*W*H) |
mm |
5900x2150x 2300 |
|
Description:
Advantages:
1. Rooftop single packaged units provide optimum comfort and reliability. They can be slab-mounted at ground level or set on steel beams above a finished roof.
2. Every unit is completely piped, wired, charged and tested at the factory to simplify the field installation.
3. Fresh air damper and mixing air section could be added to improve indoor air quality.
4. Variable power supply units are offered, 380V/3PH/50Hz, 440V/3PH/60Hz, 220V/3PH/60Hz
5. Available R-407C, R-410A, R-134A Refrigerant for environmentally responsible operation
6. Wide range cooling capacity: 3 - 65tons;
