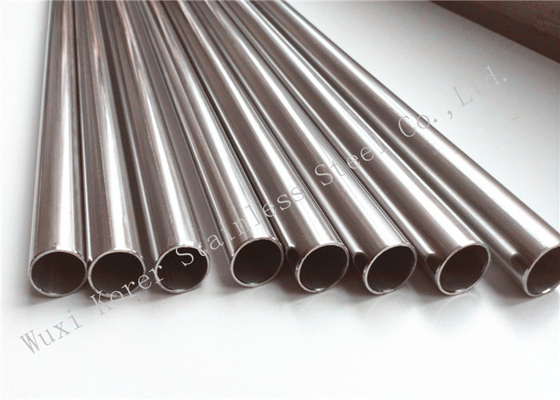

Polished Or Grind Welding Stainless Steel Tube 201 202 304 316L SS Pipes
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Welding SS Tube | Material Grade: | 201 / 202 / 304 / 316L |
|---|---|---|---|
| Standard: | ASTM / DIN / EN | Delivery Condition: | Polish Or Grind Surface |
| Application: | Construction Industry | Brand: | KORER |
| High Light: | tig welding stainless steel tubing,welding stainless steel tubing |
||
ASTM / DIN / EN 201 / 202 / 304 / 316L Welding SS Tube For Construction Industry
Quick detail:
|
Name |
Welding SS Tube |
Material Grade |
201 / 202 / 304 / 316L |
|
Standard |
ASTM / DIN / EN |
Delivery Condition |
Polish Or Grind Surface |
|
Brand Name |
KORER |
Application |
Construction Industry |
|
OD |
6mm – 101.6mm |
WT |
0.3mm – 3.5mm |
Description:
|
Pipe Surface: |
|
Polish Surface:180# / 320# / 400# / 600# Polish Or Mirror Polish. |
|
Satin Finish Surface: 180# / 320# / 400# Grind Finish. |
|
Mill Finish Surface:2B Finish Of the Stainless Steel Bright Coil. |
Standards:
|
A554 Standard specification for welded stainless steel mechanical tubing |
||
|
Item |
Contents |
Requirements |
|
1 |
Materail |
TP 201, TP202, TP304, TP304L, TP304H, TP310S, TP316, TP316L, TP316Ti, TP316H, TP317L, TP321 |
|
2 |
Welding Method |
TIG |
|
3 |
Chemical Composition |
Acc.to A688 and A480 |
|
4 |
Heat Treatment |
Bright Annealing Or Not Annealing |
|
5 |
Straightness |
0.76mm/900mm |
|
6 |
Tolerance |
OD A554, WT +/-10% |
|
7 |
Mechanical Property |
Tension Test,Hardness Test |
|
8 |
Surface |
2B Finish, 180# - 600#polish, Mirror Polish 180# - 400#grind |
Competitive Advantage:
I. Supply Best Prices Based On Good Quality And Timely Delivery.
II. We Have Advanced NDT Equipments For The Tests Such As Eddy Current Test, Hydraulic Test And So On.And the Pipes Are 100% Inspected of Leakage Test.
III. Wooden Case Package Which Is Strong And Suitable For Sea Transport And Which Is Our Main Method To Protect The Tubes.Also We Will Depends On The Sizes Of The Tubes To Select More Ecomony Packing Method By Bundle.
Specifications:
1. Product Name: Welding SS Tube
2. Standard: ASTM A554 / DIN 17455
3. Grade: 201 / 202 / 304 / 316L
4. Outer Diameter : 6.00mm-101.6mm
5. Wall thickness : 0.30mm-3.5mm
6. Length: max.40000mm or as demand
7. Surface finish: Polish Or Grind Surface
8. Manufacture technology: TIG Welding
Material:
|
Grade |
Chemical Composition(%) |
Remark |
|||||||||
|
C≤ |
Mn≤ |
P≤ |
S≤ |
Si≤ |
Cr |
Ni |
Mo |
N |
Cu |
||
|
201 |
0.15 |
5.5~7.5 |
0.06 |
0.03 |
1.00 |
16.0~18.0 |
3.5~5.5 |
|
0.25 |
|
|
|
202 |
0.15 |
7.5~10.0 |
0.06 |
0.03 |
1.00 |
17.0~19.0 |
4.0~6.0 |
|
|
|
|
|
304 |
0.08 |
2.00 |
0.045 |
0.030 |
0.75 |
18.0~20.0 |
8.0~10.50 |
|
0~0.1 |
|
|
|
316L |
0.030 |
2.00 |
0.045 |
0.030 |
0.75 |
16.0~18.0 |
10.0~14.0 |
2.0~3.0 |
0~0.1 |
|
|
Applications:
The Pipes are Used As Railings, Handrail, Equipments For Construction In Building, Vessel, Train, Metro.
