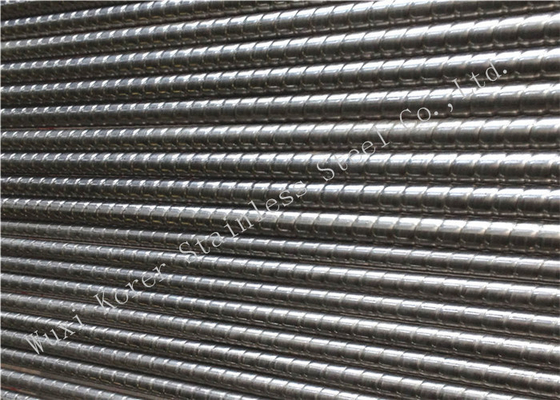

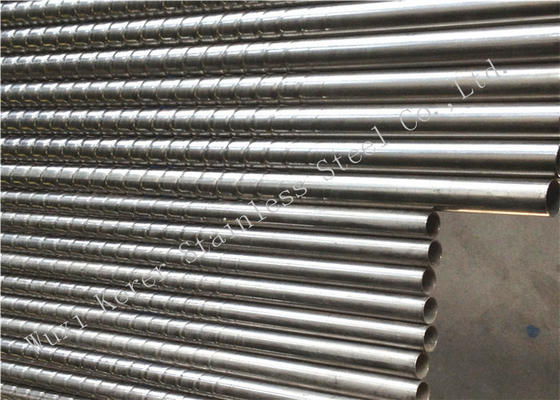

AISI 304 / 304L Threaded Stainless Steel Pipe For Heat Exchanger ASME SA249 6mm - 50.8mm

Large Image : AISI 304 / 304L Threaded Stainless Steel Pipe For Heat Exchanger ASME SA249 6mm - 50.8mm Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	KORER
Certification:	ISO 9001 And Manufacture License Of Pressure Tube
Model Number:	OD: 6mm – 50.8mm, WT:0.3mm – 2.5mm

Payment & Shipping Terms:

Minimum Order Quantity:	1 Metric Tons Per Size
Price:	Negotiable
Packaging Details:	Wooden Boxes With Angle Steel Frame Or Seaworthy Bundle
Delivery Time:	15Days – 45Days Or Depends on the quantity
Payment Terms:	T/T L/C
Supply Ability:	10000 Metric Tons Per Year

Contact Now

Detailed Product Description

Product Name:	Threaded Stainless Steel Pipe	Material Grade:	AISI 304 / 304L
Outer Diameter:	6mm-50.8mm,	Wall Thickness:	0.3mm – 2.5mm
Standard:	ASME SA249	Delivery Condition:	Bright Annealing
High Light:	stainless steel threaded pipe , threaded stainless steel tube

AISI 304 / 304L Threaded Stainless Steel Pipe For Heat Exchanger With ASME SA249

Quick detail:

① Material Grade: AISI 304 / 304L

② Commodity Name:Threaded Stainless Steel Pipe

③ Brand: KORER

④ Standard: ASME SA249

⑤ Delivery Condition: Bright Annealing

Description:

Standards:

A249 Standard specification for welded austenitic steel boiler,superheater, heat-exchanger and condenser tubes.

◆Materail:TP304, TP304L, TP304H, TP310S, TP316, TP316L, TP316Ti, TP316H, TP317L, TP321

◆Welding Method:TIG

◆Chemical Composition:Acc.to A249 and A480

◆Heat Treatment:Bright Annealing temperature 1040℃

◆Straightness:0.8mm/900mm

◆Tolerance:OD Acc.to A1016/A1016M, WT +/-10%

◆Mechanical Property:Tension Test, Flattening Test, Flange Test, Reverse-Bend Test, Hardness Test, Hydrostatic or Other Nondestructive Test, Grain Size, Reverse-Bend Test, Hardness Test

◆Intergranular Corrosion:Acc.to the Buyer's Requirements

Material:

Grade	Chemical Composition(%)										Remark
Grade	C≤	Mn≤	P≤	S≤	Si≤	Cr	Ni	Mo	N	Cu	Remark
304	0.08	2.00	0.045	0.030	0.75	18.0~20.0	8.0~10.50		0~0.1
304L	0.030	2.00	0.045	0.030	0.75	18.0~20.0	8.0~12.0		0~0.1

Applications:

The products are applied to trades such as papermaking, chemical industry, shipbuilding, petroleum, electricity, food, pharmacy, natural gas, metallurgry, architecture, sewage disposal, environmental protection, aerospace,heat exchanger, etc.

Specifications:

Commodity Name	Threaded Stainless Steel Pipe
Standard	ASME SA249
Material Grade	AISI / TP / SUS 304 / 304L
Outer Diameter	6mm-50.8mm,
Wall Thickness	0.3mm – 2.5mm
Length	Depends on Customers’ Request
Tolerance	According to ASME SA249
Main process	TIG Welding
Certificate	ISO 9001:2008, Manufacture License Of Pressure Tube
Packing	Bundles With Plastic Bags, Wooden Box With Angle Steel Frame Or others
Payment Terms	T/T, L/C at sight
Delivery Time	Generally 15Days – 45Days Or Depends on the quantity and Customers’ Request
Capacity	1000 Tons Per Month

Competitive Advantage:

We Are Manufactuer Which Are Approved With ISO 9001-2008 and Manufacture License of Pressure Tube.

We Have Production experience about 20 years. We have high technical production lines with top quality products. We have win high reputation based on good quality and Competitive Prives.

Test items:

1.Chemical Composition(Spectral analysis )

2.Mechanical Property(Tensile Test Machine)

3.Expansion Test(Tensile Test Machine)

4.Flange Test(Tensile Test Machine)

5.Flattening Test(Tensile Test Machine)

6. Hardness(sclerometer)

7. Metallo analysis(Metallo microscope)

8.Intergranular Corrosion Test

9.Surface and Dimension Test

10.Hydraulic Test(Hydraulic Test Machine)

11. Air Pressure Test (Air Pressure Test machine)
