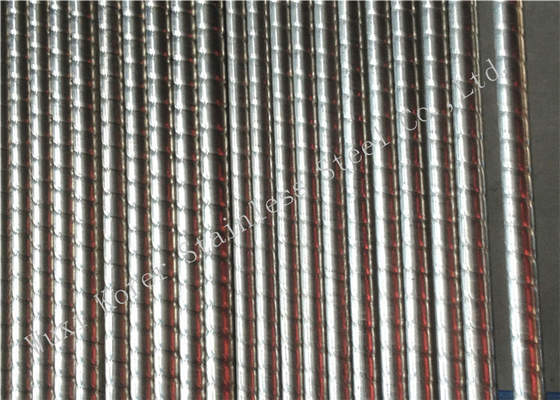

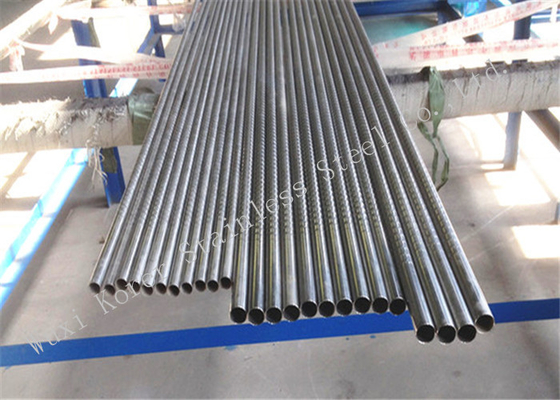

Thin Wall 0.5mm - 2.0mm Threaded Stainless Steel Pipe AISI TP SUS DIN EN Material Grade

Commodity Name

Threaded Stainless Steel Welded Pipe

Material Grade

AISI, TP, SUS,DIN,EN

Out Diameter

6mm – 38.1mm

Wall Thickness

0.5mm – 2.0mm

Standard

ASTM , DIN,  EN

Delivery Condition

Bright Annealing

Grade

Chemical Composition(%)

Remark

C≤

Mn≤

P≤

S≤

Si≤

Cr

Ni

Mo

N

Cu

201

0.15

5.5~7.5

0.06

0.03

1.00

16.0~18.0

3.5~5.5

0.25

202

0.15

7.5~10.0

0.06

0.03

1.00

17.0~19.0

4.0~6.0

304

0.08

2.00

0.045

0.030

0.75

18.0~20.0

8.0~10.50

0~0.1

304L

0.030

2.00

0.045

0.030

0.75

18.0~20.0

8.0~12.0

0~0.1

310S

0.08

2.00

0.045

0.030

1.50

24.0~26.0

19.0~22.0

321

0.08

2.00

0.045

0.030

0.75

17.0~19.0

9.0~12.0

0~0.1

Ti≥5×(C+N),

≤0.70

316

0.08

2.00

0.045

0.030

0.75

16.0~18.0

10.0~14.0

2.0~3.0

0~0.1

316L

0.030

2.00

0.045

0.030

0.75

16.0~18.0

10.0~14.0

2.0~3.0

0~0.1

317

0.08

2.00

0.045

0.030

0.75

18.0~20.0

11.0~15.0

3.0~4.0

0~0.1

317L

0.030

2.00

0.045

0.030

0.75

18.0~20.0

11.0~15.0

3.0~4.0

0~0.1

2205

0.030

2.00

0.030

0.020

1.00

21.0~23.0

4.50~6.50

2.50~3.50

0.08~0.20

430

0.12

1.00

0.040

0.030

1.00

16.0~18.0

≤0.75

409

0.08

1.00

0.045

0.030

1.00

10.5~11.7

≤0.50

Ti≤0.75

439

0.07

1.00

0.04

0.030

1.00

17.0~19.0

≤0.50

0~0.04

Ti≥0.20+4×(C+N);

≤1.10
Al≤0.15

1.4301

0.07

2

0.045

0.015

1

17.0~19.0

8.0~10.50

0~0.1

1.4307

0.03

2

0.045

0.015

1

17.5~19.5

8.0~10.0

0~0.1

1.4401

0.07

2

0.045

0.015

1

16.5~18.5

10.0~13.00

2.0~2.5

0~0.1

1.4404

0.03

2

0.045

0.015

1

16.5~18.5

10.0~13.00

2.0~2.5

0~0.1

1.4541

0.08

2

0.045

0.015

1

17.0~19.0

9.0~12.00

Ti≥5×C,≤0.70

1.4436

0.05

2

0.045

0.015

1

16.5~18.5

10.5~13.0

2.50~3.00

1.4438

0.03

2

0.045

0.015

1

17.5~19.5

13.0~16.0

3.00~4.00

American standards:

ASTM A249: Standard specification for welded austenitic steel boiler,superheater, heat-exchanger and condenser tubes.

ASTM A269:Standard specification for welded austenitic stainless steel tubing for general service

ASTM A688:Standard specification for welded austenitic stainless steel feedwater heater tubes.

ASTM A554:Standard specification for welded stainless steel mechanical tubing.

ASTM A268:Specification for seamless and welded Ferritic/Martensitic stainless steel tubing for General Service

ASTM A789:Specification for seamless and welded Ferritic/Austenitic stainless steel tubing for General Service

ASTM A312:Seamless/Welded austenitic stainless steel pipe

Germanic standards:

DIN17455:General purpose welded circular stainless steel tubes

DIN17457: Welded circular austenitic stainless steel tubes subject to special requirements; technical delivery conditions

European Standard:

EN 10217-7:Welded Steel Tubes for pressure purposes-Part 7 Stainless steel tubes

Commodity Name

Threaded Stainless Steel Welded Pipe

Standard

ASTM , DIN,  EN

Material Grade

T TP304,TP304L,TP304H, TP310S,TP316,TP316L,TP316Ti,TP316H,

TP317,TP317L, TP321, TP321H

Duplex Grade

S31803 / S32205 / S32304 Others:TP405,TP409, TP410, TP430, TP439,

Outer Diameter

6mm-38.1mm

Wall Thickness

0.3mm – 2.0mm

Length

Depends on Customers’ Request

Tolerance

According to Standards

Leakage Test

ET  Or  Hydraulic Test Or Air Pressure Test Under Water

Main  process

Welding, Bright Annealing

Certificate

ISO 9001:2008, Manufacture License Of Pressure Tube

Marking

Brand, Standard, Grade, Size, Length and Heat No. Or Depends On Customer.

Packing

Bundles With Plastic Bags, Wooden Box With Angle Steel Frame Or others

Payment Terms

T/T, L/C at sight

Delivery Time

Generally 15Days – 45Days Or Depends on the quantity and Customers’ Request

Capacity

1000 Tons Per Month
