M² Steel Stamping Mould Die 0.13mm For FPC To USA

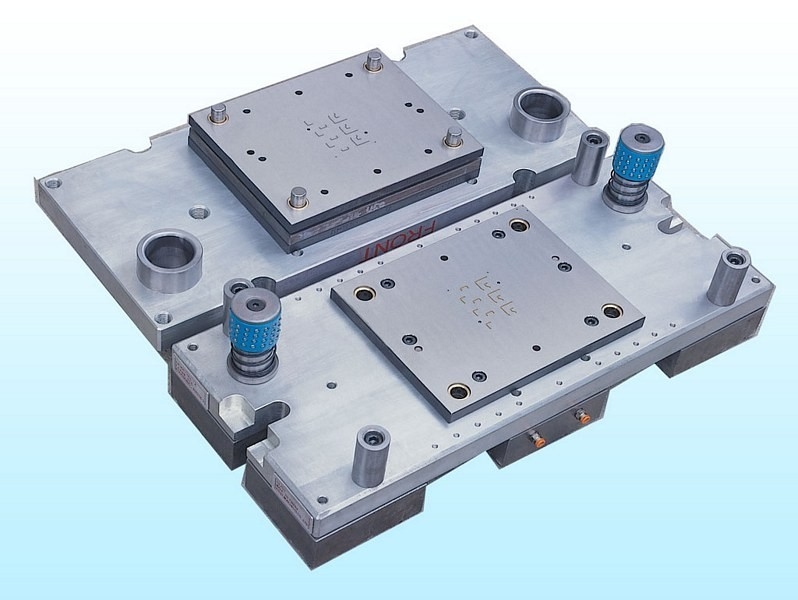

Large Image : M² Steel Stamping Mould Die 0.13mm For FPC To USA Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	OEM
Model Number:	FPDO-002

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	TBD
Packaging Details:	Wooden Case
Payment Terms:	T/T

Contact Now

Detailed Product Description

High Light:

tooling die

stamp dies

M² Steel Stamping Mould Die 0.13mm For FPC To USA

Quick Details:

Die for flexible printed circuit board export to USA;
Die steel: M²;
Punching material thickness: 0.13mm;

Minimum Hole Dia:0.15mm

Specifications:

Product Name	Precision Die to Punch holes and features on Flexible PCB
Die steel	AISI D2/JIS SKD11/ Din1.2379,
Ball bearing guides and bushes brand	Misumi
Stamping Material Type	Flexible Printed Circuits Board
Material Thickness	0.13mm
Machining Accuracy	Up to +-0.002mm
Finished Part Tolerance	Up to +-0.02mm;
Minimum Hole Dia.	0.15mm
Measuring Instruments	3D CMM, Hardness Meter, Projector, Digital Height , Microscope ,etc.
Equipment	CNC Machining Center, Sodick EDM, Fine Precision Grinding Machine , 40T to 600T Press Machines, etc.
Design Software	PRO/E, Auto CAD, Solid Work , Master CAM
Applications	Automotive (chassis system, seating and door system, audio systems ,cooling system); Home Appliances (TV sets, cameras, air conditioners ,DVD players); Telecommunication (Antenna base, brackets, enclosures ); Office equipments (computers, copiers, printers, etc. )
Exporting Area	USA, Canada, France, Italy, Spain, Belgium, Japan, Russia, Korea, Jordan, etc...
