Hot Dipped Galvanized Steel Wire For Gabion Box 8-14 Gauge
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
Hot-dipped Galvanized iron wire, Galvanized Steel wire-SAE1008, 1006 or Q195
Quick Detail:
Name | Products Nickname | |
Hot-dipped Galvanized iron wire | Galvanized steel wire, Heavy Galvanized iron wire | |
Material | Low carbon steel Q195, equal to SAE1006 & SAE1008 | |
Tensile Strength | 380-550N/mm2 | |
Zinc-coating | 40-60g/m2 | |
Description:

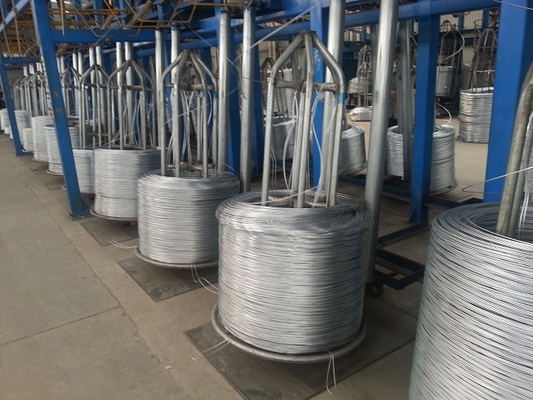

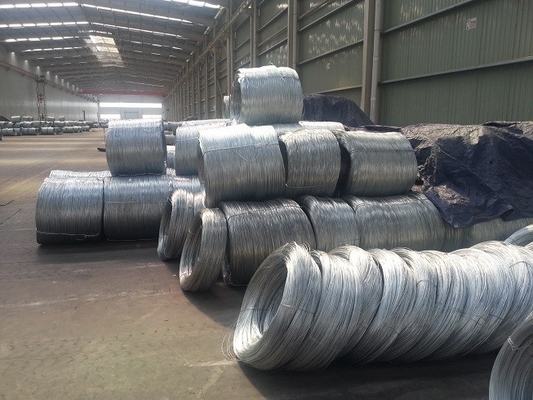

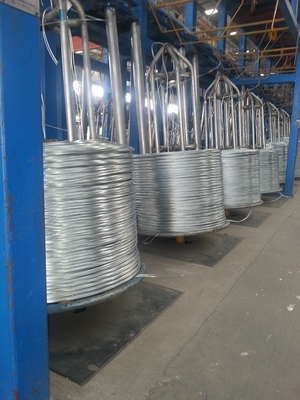

We use quality low carbon steel wire in producing of hot-dip galvanized wire, going through wire drawing, acid washing, Hot-dipped galvanizing, and coiling. The Coil weight Can be with normal packing 25kg per coil or Jumbo coil 1000kg per coil.
Applications:
Hot-dip galvanized wire is extremely flexible and soft, extensively used in construction, handicrafts, woven wire mesh, express way fencing mesh, packaging of products and other daily uses.
Specifications:
Hot-dipped Galvanized iron Wire | |||
Wire Gauge | SWG in mm | BWG in mm | In Metric System mm |
8# | 4.06 | 4.19 | 4.00 |
9# | 3.66 | 3.76 | - |
10# | 3.25 | 3.40 | 3.50 |
11# | 2.95 | 3.05 | 3.00 |
12# | 2.64 | 2.77 | 2.80 |
13# | 2.34 | 2.41 | 2.50 |
14# | 2.03 | 2.11 | - |
15# | 1.83 | 1.83 | 1.80 |
16# | 1.63 | 1.65 | 1.65 |
17# | 1.42 | 1.47 | 1.40 |
18# | 1.22 | 1.25 | 1.20 |
| |||
