Hot Dipped Heavy Zinc Coated Steel mesh wire , 6# - 24# Gauge Wire

Big coil galvanized Wire: WIRE RANGE
Gauge:  6# - 24#
Metric: 5mm - 0.55mm

Big coil galvanized Wire: BASE MATERIAL
Low carbon steel wire SAE C1006 - 1008

Big coil galvanized Wire: FINISH
Hot dipped heavy zinc coating between 30g/m2 and 336g/m2
Electro galvanized with low costs

Big coil galvanized Wire: TECHNICAL INFORMATION
Tensile Strength:
   350 N/MM2 - 550 N/MM2 (SOFT)
   600 N/MM2 - 900 N/MM2 (HARD)
Elongation: 8% - 15%

Big coil galvanized Wire:FABRICATED PROCESS
Wire Rod-Drawn Wire-Annealed -Acid Washing-Galvanized- Wire Coiling

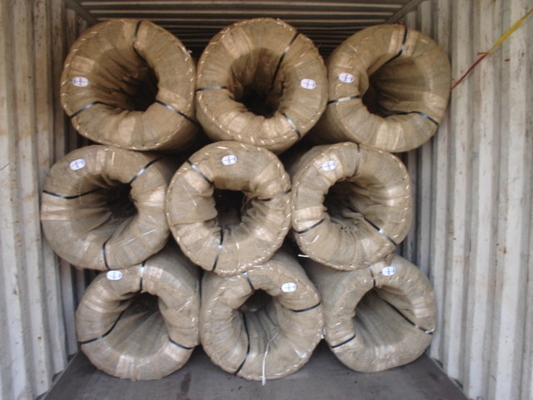

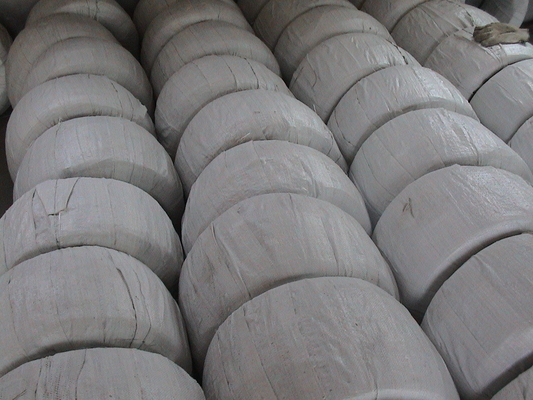

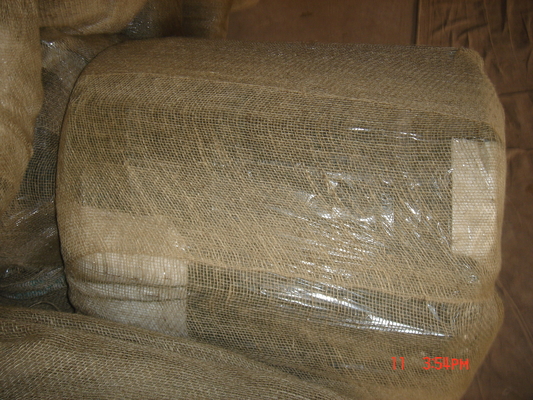

Big coil galvanized Wire: PACKING
6# - 16# : 1000KGS Max. per coil
16# - 24#:  500KGS Max. per coil

Special specifications can be produced by the customer's requirements.
