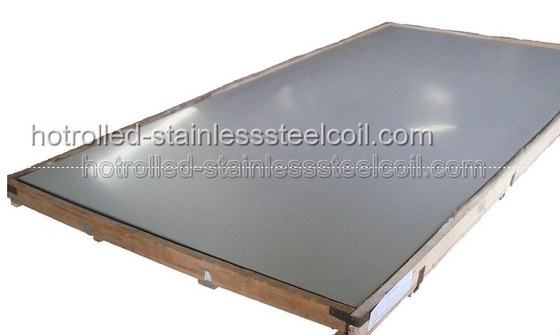

OEM JIS ASTM AISI GB Hot Rolled Stainless Steel Plate 304 , 2.4mm-6.0mm thick
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | Custom Stainless Steel Sheet,Stainless Steel Sheeting |
||
|---|---|---|---|
OEM JIS ASTM AISI GB Hot Rolled Stainless Steel Plate 304 , 2.4mm-6.0mm thick
Quick Detail:
Hot Rolled Coils
1. Grade: 200 & 300 & 400 series
200 seriers: 201,202
300 seriers: 301, 304, 304L, 316L, 309, 310S,321
400 seriers: 410, 410S, 409L,430
2. Standard: JIS, ASTM, AISI, GB, DIN, EN, we usually use ASTM and GB Standard
3. Thickness: 2.4mm-6.0mm
200 series: 2.4mm-6.0mm
300 series: 2.4mm-6.0mm
400 series: 2.4mm-6.0mm
4. Width: 405mm-700mm
5. Surface: No1 finished, mill edge
6. Hardness: soft
7. Thickness Tolerance: +/-0.1mm
8. Width Tolerance: +/-10mm
9. Mills: Quanxing, Xingda
Description:
| GRADE | CHEMICAL COMPOSITION | ||||||||
| C% | Mn% | S% | P% | Si% | Ni% | Cr% | Cu% | N% | |
| 201/J4 | 0.05-0.15 | ≤12.00 | ≤0.03 | ≤0.060 | ≤1.00 | 0.70-0.90 | 12.00-16.00 | 0.70-0.90 | ≤0.250 |
| 201/DDQ | 0.05-0.12 | ≤10.00 | ≤0.03 | ≤0.060 | ≤1.00 | 1.00-1.20 | 12.00-16.00 | 1.40-1.80 | ≤0.250 |
| 202 | 0.08-0.15 | ≤9.00 | ≤0.03 | ≤0.060 | ≤1.00 | 4.00-5.00 | 14.5-16.00 | 1.40-1.65 | - |
| 202/J1 | 0.08-0.15 | ≤9.00 | ≤0.03 | ≤0.060 | ≤1.00 | 3.00-4.00 | 14.5-16.00 | 1.40-1.65 | - |
| 301 | ≤0.150 | ≤2.00 | ≤0.03 | ≤0.060 | 0.453 | 6.00-8.00 | 16.00-18.00 | - | |
| 301/J1 | ≤0.150 | ≤2.00 | ≤0.03 | ≤0.060 | 0.448 | 5.00-6.00 | 14.00-16.00 | - | |
| 304 | ≤0.08 | ≤2.00 | ≤0.03 | ≤0.045 | ≤1.00 | 8.00-9.00 | 18.00-20.00 | ≤1.00 | - |
| 304/J1 | ≤0.08 | ≤2.00 | ≤0.03 | ≤0.045 | ≤1.70 | 6.00-9.00 | 15.00-18.00 | 1.00-3.00 | - |
| GRADE | TENSILE STRENGTH kgf/mm2 | YIELD STRENGTH kgf/mm2 | Elong % | HARDNESS HV |
| 304 | 520 | 212 | 45 | 170-180 |
| 201 | 220-230 |
Competitive advantages:
1. Many years manufacturing experience
2. Professional R&D team
3. Always new design and best price
4.China Patent for Utility Model Certificate
