Hot-dipped Galvanized Iron Wire For Weaving Sqaure mesh and Hexagonal wire netting
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description

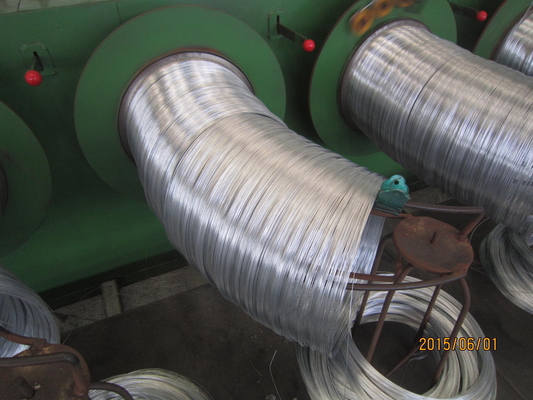

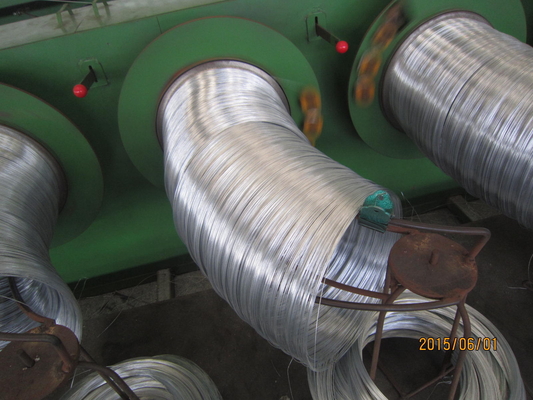

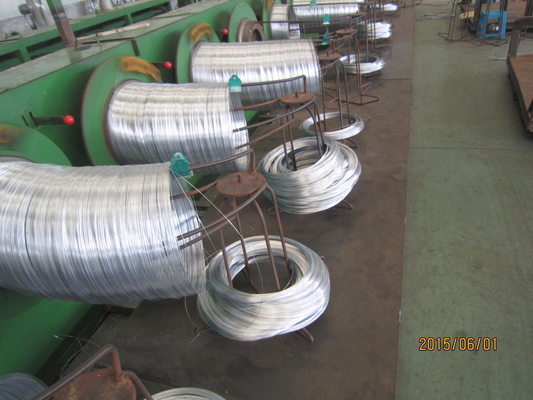

Hot-dipped Galvanized iron wire
Quick Detail:
|
Name |
Products Nickname |
|
|
Hot-dipped Galvanized iron wire |
Galvanized steel wire, Galvanized iron wire |
|
|
Material |
Low carbon steel Q195, equal to SAE1006 & SAE1008 |
|
|
Tensile Strength |
380-550N/mm2 |
|
|
Zinc-coating |
30-50g/m2
|
|
Description:
We use quality low carbon steel wire in producing of hot-dip galvanized wire, It is thin wire from 0.45mm to 1.2mm. The Coil weight Can be with normal packing 10kg per coil to 100kg per coil, or pack it with spool.
Applications:
Hot-dip galvanized wire is extremely flexible and soft, extensively used in weaving square mesh, hexagonal wire netting, chicken mesh, handicrafts, packaging of products and other daily uses.
Specifications:
|
Hot-dipped Galvanized iron Wire |
|||
|
Wire Gauge |
SWG in mm |
BWG in mm |
In Metric System mm |
|
18# |
1.22 |
1.24 |
1.25 |
|
19# |
1.02 |
1.06 |
1.0 |
|
20# |
0.91 |
0.91 |
0.91 |
|
21# |
0.81 |
0.81 |
0.81 |
|
22# |
0.71 |
0.71 |
0.71 |
|
23# |
0.61 |
0.63 |
0.63 |
|
24# |
0.56 |
0.56 |
0.56 |
|
25# |
0.50 |
0.50 |
0.50 |
|
26# |
0.46 |
0.46 |
0.46 |
If you need exactly wire diameter with Milimeter, it can be customized.
