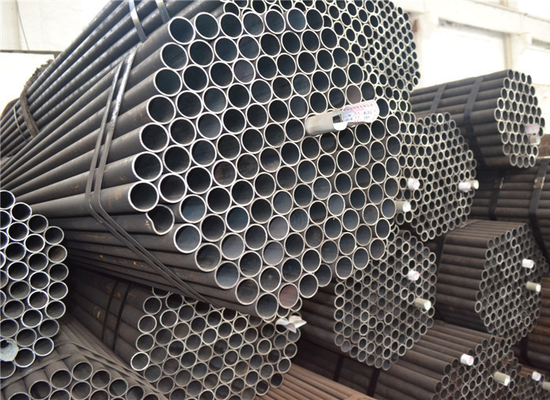

Mild steel round tube for Mechanical And Engineering , mild steel exhaust tubing EN10297-1
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| STANDARD: | EN | SHAPE: | CIRCULAR |
|---|---|---|---|
| MATERIAL: | CARBON STEEL | CERTIFICATE: | PED, ISO9001, ISO14001 |
| PLACE OF ORIGIN: | JIANGSU, CHINA | SECONDARY OR NOT: | BRAND NEW |
| SURFACE TREATMENT: | BLACK, VARNISH, OIL, BARE | APPLICATION: | MECHANICAL, ENGINEER |
| High Light: | mild steel pipes,seamless mild steel tube |
||
EN10297-1 SEAMLESS MILD STEEL TUBES FOR MECHANICAL AND GENERAL ENGINEERING PURPOSES
Part 1: Non-Alloy and Alloy steel tubes
Specifications:
Surface Treatment: Oiling/Black painting/Varnish/Passivation/Phosphating/Pickling
Ends: BE/PE, ends caps
Marking: as per requirement
Delivery Condition: Annealed(+A)/Normalized(+N)/+AR/+QT/+TH/+FP
Size:(mm)
OD: 26.9 – 610mm
or as per customer’s requirement
Length: ≤16m. Fixed Length (6m,9m,12m, 16m or as per requirement) or random length
Package: Hexagonal Bundles with steel strips and plastic wrapping outside/Wooden box/Wooden crate/Steel frame/As per customer’s requirement
CHEMICAL COMPOSITION (%):
|
CHEMICAL COMPOSITION (CAST ANALYSIS) IN% |
||||||
|
Grade |
C≤ |
Si≤ |
Mn≤ |
P≤ |
S≤ |
|
|
E235 |
1.0308 |
0.17 |
0.35 |
1.2 |
0.03 |
0.035 |
|
E275 |
1.0225 |
0.21 |
0.35 |
1.4 |
0.03 |
0.035 |
|
E315 |
1.0236 |
0.21 |
0.30 |
1.5 |
0.03 |
0.035 |
|
E355 |
1.0580 |
0.22 |
0.55 |
1.6 |
0.03 |
0.035 |
|
E470 |
1.0536 |
0.16~0.22 |
0.1~0.5 |
1.3~1.7 |
0.03 |
0.035 |
|
⋮ |
⋮ |
⋮ |
⋮ |
⋮ |
⋮ |
⋮ |
E470 with Al≥0.01, N≤0.02
MECHNICAL PROPERTIES:
|
MECHANICAL PROPERTIES |
|||||
|
Grade |
Tensile Strength σb(Mpa) |
Yield Strength σs(Mpa) |
Elongation δ(%) |
||
|
WT (mm) |
WT (mm) |
||||
|
≤16 |
16 ~ ≤40 |
≤16 |
16 ~ ≤40 |
||
|
E235 |
≥235 |
≥225 |
≥360 |
≥360 |
≥25 |
|
E275 |
≥275 |
≥265 |
≥410 |
≥410 |
≥22 |
|
E315 |
≥315 |
≥305 |
≥450 |
≥450 |
≥21 |
|
E355 |
≥355 |
≥345 |
≥490 |
≥490 |
≥20 |
|
E470 |
≥470 |
≥430 |
≥650 |
≥600 |
≥17 |
|
⋮ |
⋮ |
⋮ |
⋮ |
⋮ |
⋮ |
DELIVERY CONDITION:
|
Delivery condition |
|
|
Steel grade |
Delivery condition |
|
E235 |
+AR or H15+N |
|
E275 |
+AR or H16+N |
|
E315 |
+AR or H17+N |
|
E355 |
+AR or H18+N |
|
E470 |
+AR |
|
⋮ |
⋮ |
DIMENSION TOLERANCE:
|
OD (mm) |
OD Tolerance |
WT Tolerance (T/D) |
||
|
≤0.025 |
0.025~0.05 |
>0.05 |
||
|
OD≤219.1 |
±1% or ±0.5mm (follow the bigger one) |
±12.5% or ±0.4mm (follow the bigger one) |
||
|
OD>219.1 |
±1% |
±20% |
±15% |
±12.5% |
|
Length Tolerance (mm) |
||||
|
≤6000 |
0 - +10 |
|||
|
6000<L≤12000 |
0 - +15 |
|||
|
>12000 |
0 / + By Negotiable |
|||
INSPECTION AND TEST:
CHEMICAL COMPOSTION TEST. MECHANICAL PROPERTIES TEST(tensile strength, yield strength, elongation, flaring, flattening, impact, hardness, etc). SURFACE AND DIMENSION CHECK. NON-DESTRUCTIVE TEST(eddy current test/ultrasonic test), HYDRAULIC TEST.
Description:
EN10297-1 SEAMLESS CIRCULAR STEEL TUBES MADE OF NON-ALLOY AND ALLOY STEELS FOR MECHANICAL AND GENERAL ENGINEERING PURPOSES.
Top quality products
Applications:
For mechanical and general engineering purposes.
Competitive Advantage:
Advanced equipments, serious attitude to quality control, good service, best price.
