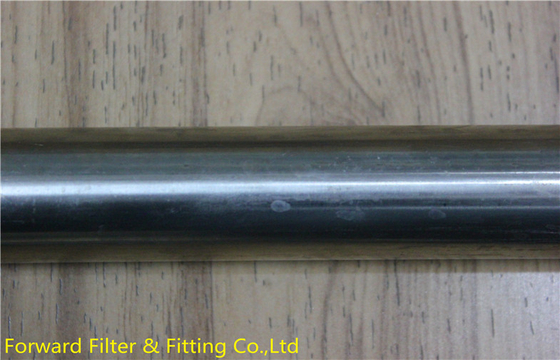

Decorative Seamless Stainless Steel Pipe With 17.5 - 28.5 mm Wall Thickness

Large Image : Decorative Seamless Stainless Steel Pipe With 17.5 - 28.5 mm Wall Thickness Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	FORWARD FILTER & FITTING
Certification:	ISO
Model Number:	304,316,409,204

Payment & Shipping Terms:

Minimum Order Quantity:	100m
Price:	negotiable
Packaging Details:	iron pallet, wood pallet, carton and wooden box
Delivery Time:	25-35 days
Supply Ability:	50000m/month.

Contact Now

Detailed Product Description

Materia:

Ss304/304L/316/316L Stainless Steel, Mild Steel, Aluminum, Copper, Monel, Hastelloy, Inconel, Titanium, Etc.

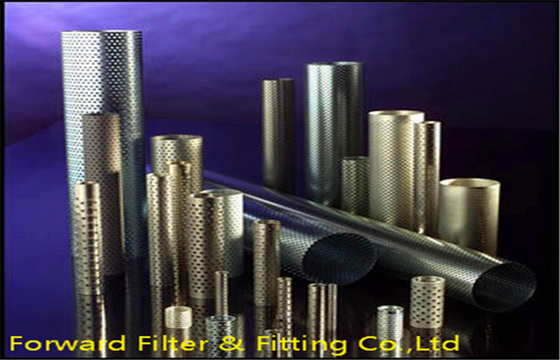

Perforation Patterns:

Straight, Centers, Staggered

Seam Styles:

Straight Weld, Spiral Weld, Spiral Welded Louvered

Wall Thickness:

17.5 - 28.5 Mm

High Light:

welding stainless steel pipe

welded stainless steel tubing

11/16 - 1-1/8 Inch Diameter/ 17.5 - 28.5 mm Wall Thickness /Decorative Seamless Steel Pipe

Decorative Seamless Stainless Steel Pipe With 17.5 - 28.5 mm Wall Thickness 0

Description:

Material: Ss304/304L/316/316L stainless steel, Mild steel, Aluminum, Copper, Monel, Hastelloy, Inconel, Titanium, etc.

Seam Styles: Straight Weld, Spiral Weld, Spiral Welded Louvered

Tube Diameter(Round): 1/4’’-12’’ (6.35 ～ 304.8mm)

Wall Thickness: 0.5～2.5mm (various types can be customized )

Length: Customized

Uses:

(1) Protective sleeve for sand control screens

(2) Support core for strainers

(3) Purolator suction strainers

(4) Acoustical dampening

(5) Perforated tubes for oil well

(6) Exhaust tubes, Muffler tube

(7) Filtration / Separation Tubes (e.g center tube for air, oil, fuel, gas filters)

(8) Decorative items

(9) Gas / Liquid / Vapor/ Light Diffusion

(10)Structural Members

(11) EMI shielding

(12) Safety guards

(13) Grills or trim

Tolerances:

Item	Unit	Diameter Range of Tubes
	Inch	<1.5	≥1.5～<2.5	≥2.5～<4.0	≥4.0～<6.0	≥6.0
	mm	<38.1	≥38.1～<63.5	≥63.5～<101.6	≥101.6～<152.4	≥152.4
Diameter Tolerance	Inch	±0.010	±0.010	±0.014	±0.016	±0.020
Diameter Tolerance	mm	±0.25	±0.25	±0.35	±0.40	±0.51
Roundness	Inch	0.008	0.008	0.012	0.016	0.02
Roundness	mm	0.2	0.2	0.3	0.4	0.51
Wall Thickness	Inch	±0.0008	±0.0008	±0.0008	±0.02	0.02
Wall Thickness	mm	±0.02	±0.02	±0.02	±0.051	±0.051
Straightness of the tubes	Inch/foot	0.012	0.012	0.015	0.018	0.018
Straightness of the tubes	mm/meter	1	1	1.25	1.5	1.5
Welded Seam	Inch	0.008	0.008	0.012	0.012	0.012
Welded Seam	mm	0.2	0.2	0.3	0.3	0.3
Length Tolerance	Inch	0.02	0.02	0.02	0.03	0.04
Length Tolerance	mm	0.51	0.51	0.51	0.76	1
End Parallel	Inch	0.008	0.01	0.014	0.02	0.032
End Parallel	mm	0.2	0.25	0.35	0.51	0.81
