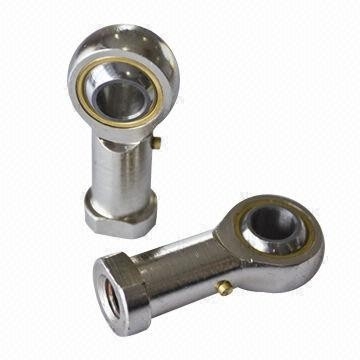

Low speed Stainless Steel Rod Ends Ball Joint Bearing SAT/K35 Custom
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | Ball Bearing Rod End,Hydraulic Cylinder Rod Ends |
||
|---|---|---|---|
Low speed Stainless Steel Rod Ends Ball Joint Bearing SAT/K35 Custom
Specifications1
1. Rod End SAT/K35 series
2. Excellent load rating capacity
3. Low speed long life
4. Fast delivery
Description:
Joint bearing is a spherical plain bearing, basic is made up of a spherical sliding on the surface of the sphere contact of inner and outer ring. Joint bearing is dominated by a spherical outside within the inner ring and a spherical outer ring, can bear larger load. According to the different types and structure, can bear radial load, axial load or the joint of the radial, axial load.
Specifications2:
|
Type |
|
Dimension(mm) |
Ball diameter |
|
|
|||||||||||||
|
d |
Screw Thread |
D |
B |
B1 |
d1 |
L |
L1 |
L2 |
r |
|
|
|
|
|||||
|
SAT/K 5 |
12.5 |
5 |
M5*08 |
16 |
6 |
8 |
7.7 |
41 |
33 |
20 |
0.5 |
11.1 |
6 |
13 |
|
|||
|
SAT/K 6 |
19 |
6 |
M6*1 |
18 |
6.75 |
9 |
9 |
45 |
36 |
22 |
0.5 |
12.7 |
7.65 |
20 |
|
|||
|
SAT/K 8 |
32 |
8 |
M8*1.25 |
22 |
9 |
12 |
10.4 |
53 |
42 |
25 |
0.5 |
15.87 |
12.9 |
38 |
|
|||
|
SAT/K 10 |
54 |
10 |
M10*1.5 |
26 |
10.5 |
14 |
12.9 |
61 |
48 |
29 |
0.5 |
19.05 |
18 |
56 |
|
|||
|
SAT/K 12 |
85 |
12 |
M12*1.75 |
30 |
12 |
16 |
15.4 |
69 |
54 |
33 |
0.5 |
225 |
24 |
85 |
|
|||
|
SAT/K 14 |
126 |
14 |
M14*2 |
34 |
13.5 |
19 |
16.9 |
77 |
60 |
36 |
0.5 |
25.4 |
31 |
140 |
|
|||
|
SAT/K 16 |
185 |
16 |
M16*2 |
38 |
15 |
21 |
19.4 |
85 |
66 |
40 |
0.5 |
28.5 |
39 |
210 |
|
|||
|
SAT/K 18 |
260 |
18 |
M18*1.5 |
42 |
16.5 |
23 |
21.9 |
93 |
72 |
44 |
0.5 |
31.6 |
47.5 |
280 |
|
|||
|
SAT/K 20 |
340 |
20 |
M20*1.5 |
46 |
18 |
25 |
24.4 |
101 |
78 |
47 |
0.5 |
34.5 |
57 |
380 |
|
|||
|
SAT/K 22 |
435 |
22 |
M22*1.5 |
50 |
20 |
28 |
25.8 |
109 |
84 |
51 |
0.5 |
38.1 |
68 |
480 |
|
|||
|
SAT/K 24 |
650 |
25 |
M24*2 |
60 |
22 |
30 |
32.5 |
124 |
94 |
57 |
0.5 |
44 |
85 |
640 |
|
|||
|
SAT/K 25 |
M25*1.5 |
|
||||||||||||||||
|
SAT/K 30 |
910 |
30 |
M30*2 |
70 |
21 |
32 |
34.5 |
145 |
110 |
66 |
0.5 |
47 |
114 |
1100 |
|
|||
|
SAT/K 35 |
1440 |
35 |
M35*3 |
82 |
23 |
35 |
39.5 |
173 |
132 |
80 |
0.5 |
53 |
171 |
1650 |
|
|||
Application industry :
1. Engineering hydraulic cylinder
2. Forging machine tools
3. Engineering machinery
4. Automation equipment
5. Automobile shock absorber
6. Water conservancy machinery industries
