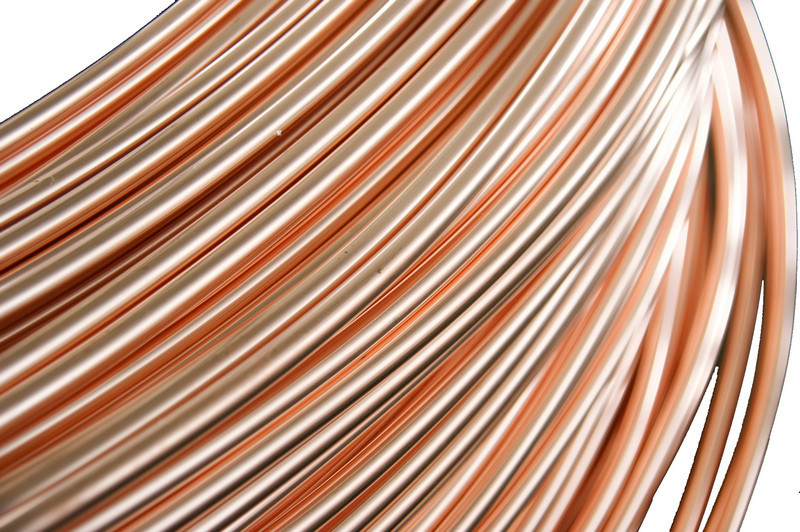

Refrigeration Copper Tube , Brazed Steel Pipes 4.76 * 0.65 mm

Refrigeration Copper Tube , Brazed Steel Pipes 4.76 * 0.65 mm

material:brazed steel strip
main use:widely used in Air,conditioning,Evaporator,Compressor,Condenser etc
outer diameter:4.76mm
wall thickness:0.65mm
standard:GB/T24187-2009

1.materials: low carbon steel strip

2.main use: widely used in wire-tube condenser, evaporators, refrigeration, chiller, heaters, freezer etc

3.outer diameter:4.76mm

4.wall thickness: 0.65mm

5. standard: GB/T 24187-2009

6.certification:also passed ISO9001 quality attestation system and ISO14001 Certificate of Environment Management  System

7.surface treatment: copper coated

8. features: soft  and easy to bend

9.tensile strength: more than 290 Mpa

10.yield strength:more than 180 Mpa

11.elongation:more than 25%

12. place of origin: changzhou city, jiangsu province, China.

13. port of loading:shanghai, China;

14. package:plastic cloth with coils, wooden boxes, iron pallets etc

15. delivery:as contract

16.payment terms:T/T,L/C etc

17. supply ability:30000 ton per year

18. brand:WUSHUN

Applications:

Copper coated steel tube mainly used in refrigerator, freezer ,condenser, evaporator etc,it is made  by material  low carbon steel strip and based on the national standard.

Specifications:

Competitive Advantage:

Bright copper coating, good welding performance.including copper coated outside and two sides ,size is complete and  best price with best quality .According to the national standard.
