Custom 2mm 3mm Food Grade Stainless Steel Sheet BA finished SS Coil
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | stainless steel sheet coil,coil stainless steel |
||
|---|---|---|---|

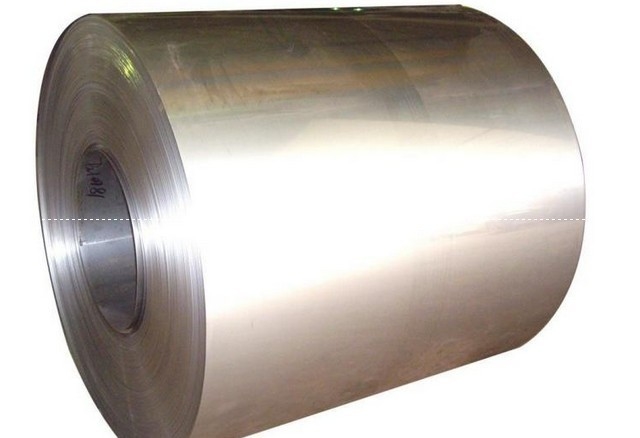

Custom 2mm 3mm Food Grade Stainless Steel Sheet BA finished SS Coil
Quick Detail:
Cold Rolled Coils
1. Grade: 200 & 300 series
200 seriers: 201,202, J4
300 seriers: 301, 304, 304L, 321, 316L, 309, 310S
2. Standard: JIS, ASTM, AISI, GB, DIN, EN, we usually use ASTM and GB Standard
3. Thickness: 0.14mm-3.0mm
4. Width: 10-700mm
5. Surface: 2B finished, BA finished
6. Hardness: soft, 1/4H, 1/2H, FH
7. Thickness Tolerance: +/-0.02mm
8. Width Tolerance: +/-10mm(mill edge)
Description:
| GRADE | CHEMICAL COMPOSITION | ||||||||
| C% | Mn% | S% | P% | Si% | Ni% | Cr% | Cu% | N% | |
| 201/J4 | 0.05-0.15 | ≤12.00 | ≤0.03 | ≤0.060 | ≤1.00 | 0.70-0.90 | 12.00-16.00 | 0.70-0.90 | ≤0.250 |
| 201/DDQ | 0.05-0.12 | ≤10.00 | ≤0.03 | ≤0.060 | ≤1.00 | 1.00-1.20 | 12.00-16.00 | 1.40-1.80 | ≤0.250 |
| 202 | 0.08-0.15 | ≤9.00 | ≤0.03 | ≤0.060 | ≤1.00 | 4.00-5.00 | 14.5-16.00 | 1.40-1.65 | - |
| 202/J1 | 0.08-0.15 | ≤9.00 | ≤0.03 | ≤0.060 | ≤1.00 | 3.00-4.00 | 14.5-16.00 | 1.40-1.65 | - |
| 301 | ≤0.150 | ≤2.00 | ≤0.03 | ≤0.060 | 0.453 | 6.00-8.00 | 16.00-18.00 | - | |
| 301/J1 | ≤0.150 | ≤2.00 | ≤0.03 | ≤0.060 | 0.448 | 5.00-6.00 | 14.00-16.00 | - | |
| 304 | ≤0.08 | ≤2.00 | ≤0.03 | ≤0.045 | ≤1.00 | 8.00-9.00 | 18.00-20.00 | ≤1.00 | - |
| 304/J1 | ≤0.08 | ≤2.00 | ≤0.03 | ≤0.045 | ≤1.70 | 6.00-9.00 | 15.00-18.00 | 1.00-3.00 | - |
| GRADE | TENSILE STRENGTH kgf/mm2 | YIELD STRENGTH kgf/mm2 | Elong % | HARDNESS HV |
| 304 | 520 | 212 | 45 | 170-180 |
| 201 | 220-230 |
Specifications :
1. 200 series: Mainly Quanxing/ Xingda, also do WuHang, Baosteel, Jinhui, YouYi, Tsingshan, LianZhong, ZPSS
2. 300 series: Mainly Quanxing/ Xingda, also do TISCO, ZPSS, BaoXin, Krupp, LianZhong, JiuGang, TaiShan Steel, Zsess
3. 400 series: Mainly Quanxing/ Xingda, also do TISCO, BaoXin, Krupp, JiuGang, Baosteel
