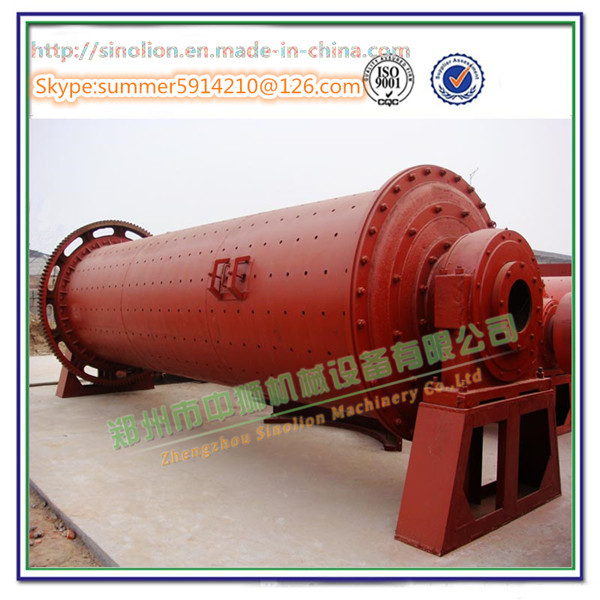

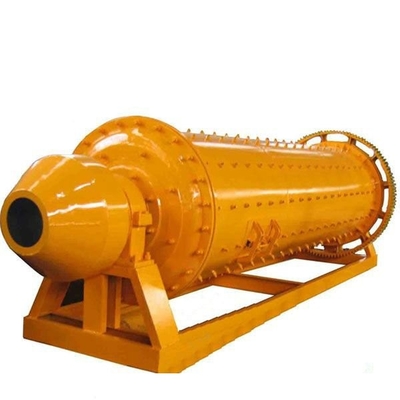

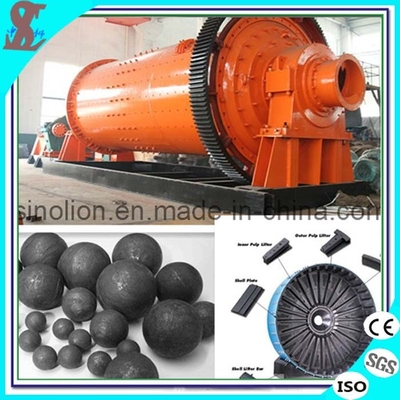

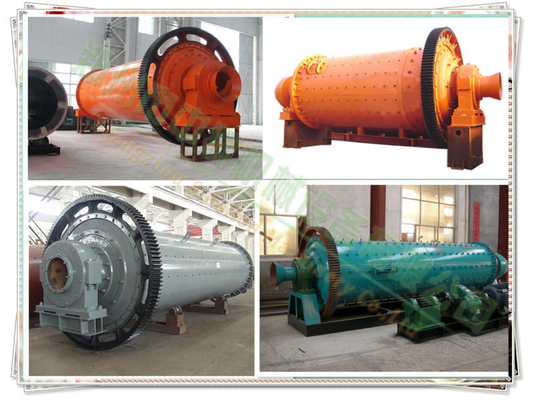

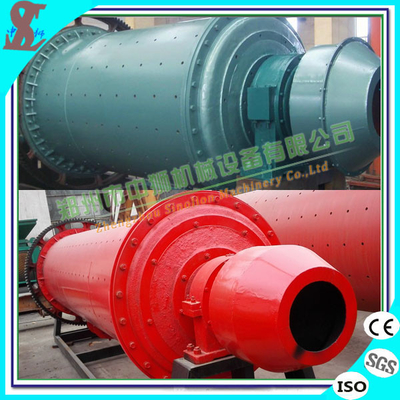

CE Approval Concrete Grinding Ball Mill Machine/ Milling Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | Ball mill,Ball Milling Machine,Ball mill machine |
||
|---|---|---|---|
Product Description
Specifications
1)Reduce the energy consumption by 30%
2)Improve fineness of discharging
3) ISO:9001:200
4) Both dry and wet grinding types available
5) Longer linning service life
6).Low energy consuming
Working Principle of Ball Mill:
When the ball mill turning, there are centrifugal force and force of friction between grinding medium and the plate in the rotary body wall. And the grinding medium will rotate with rotary body to a certain height. Then it will fall freely under gravity, whereabouts of grinding medium, like a projectile impact the material at the bottom to smaller size. In addition, grinding medium also generates sliding and rolling in the rotary process. Thus there are schleifwirkung among grinding medium, plate and material. So we can get fine powder in the process.
features and use :
Supply Perfect After-Sale Service
We offer a package service-foundation construction, equipment installation, device testing and operation guidance. Whether warranty expires, we will supply timely and thoughtful on-site maintenance.
We give you operation training on customer site to let end-users know how to reduce repair times, prolong usable life of equipment and improve efficiency. Moreover, we will teach end-users to know the structure design, working principle, basic maintenance and fault treatment methods.
We also supply free survey of present equipments conditions and configuration, suggest you one more economic configuration.
High quality, Most reasonable, Most economic, that is our standard for our honored customers.
Please do not hesitate to contact us if you have a interest in our products!
Main data of ball mill:
1)Reduce the energy consumption by 30%
2)Improve fineness of discharging
3) ISO:9001:200
4) Both dry and wet grinding types available
5) Longer linning service life
6).Low energy consuming
Working Principle of Ball Mill:
When the ball mill turning, there are centrifugal force and force of friction between grinding medium and the plate in the rotary body wall. And the grinding medium will rotate with rotary body to a certain height. Then it will fall freely under gravity, whereabouts of grinding medium, like a projectile impact the material at the bottom to smaller size. In addition, grinding medium also generates sliding and rolling in the rotary process. Thus there are schleifwirkung among grinding medium, plate and material. So we can get fine powder in the process.
features and use :
1) It is an efficient tool for grinding many materials into fine powder.
2)The ball mill is used to grind many kinds of mine and other materials, or to select the mine
3)Ball mill is widely used in building material, and chemical industry.
4)There are two ways of grinding: the dry way and the wet way.
5)Ball mill can be divided into tabular type and flowing type according to differentexpelling mine
6)To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.
7)As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
8)The longer the ball mill runs, the finer the powder will be.
9)Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.
10)Our ball mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals.
11)Complet ely enclosed welded design in high-grade steel.
12)Direct drive via bearing journal with top-mounted gearbox.
Motor connected to gearbox via a V-belt drive.
Supply Perfect After-Sale Service
We offer a package service-foundation construction, equipment installation, device testing and operation guidance. Whether warranty expires, we will supply timely and thoughtful on-site maintenance.
We give you operation training on customer site to let end-users know how to reduce repair times, prolong usable life of equipment and improve efficiency. Moreover, we will teach end-users to know the structure design, working principle, basic maintenance and fault treatment methods.
We also supply free survey of present equipments conditions and configuration, suggest you one more economic configuration.
High quality, Most reasonable, Most economic, that is our standard for our honored customers.
Please do not hesitate to contact us if you have a interest in our products!
Main data of ball mill:
| Model | Speed of bucket (r/min) | Weight of ball (t) | Size of feed opening (mm) | Size of output size (mm) | Production (t/h) | Power (k w) | Weight (t) |
| Φ900*1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
| Φ900*3000 | 38 | 2.7 | ≤20 | 0.075-089 | 1.1-3.5 | 22 | 4.5 |
| Φ1200*2400 | 32 | 3.8 | ≤25 | 0.075-0.6 | 1.5-4.8 | 45 | 11.5 |
| Φ1200*4500 | 32 | 7 | ≤25 | 0.074-04 | 1.6-5.8 | 55 | 13.8 |
| Φ1500*3000 | 27 | 8 | ≤25 | 0.074-04 | 2-5 | 90 | 17 |
| Φ1500*4500 | 27 | 14 | ≤25 | 0.074-04 | 3-7 | 110 | 21 |
| Φ1500*5700 | 27 | 15 | ≤2 | 0.074-04 | 3.5-8 | 132 | 24.7 |
| Φ1830*3000 | 24 | 18 | ≤25 | 0.074-04 | 4-10 | 180 | 28 |
| Φ1830*7000 | 24 | 25 | ≤25 | 0.074-04 | 7.5-17 | 245 | 36 |
| Φ2200*5500 | 21 | 30 | ≤25 | 0.074-04 | 10-22 | 370 | 48.5 |
| Φ2200*6500 | 21 | 31 | ≤25 | 0.074-04 | 14-26 | 380 | 52.8 |
| Φ2200*7500 | 21 | 33 | ≤25 | 0.074-04 | 16-29 | 380 | 56 |
| Φ2400*4500 | 21 | 30 | ≤25 | 0.074-04 | 8.5-60 | 320 | 65 |
| Φ2700*3600 | 20.6 | 39 | ≤25 | 0.074-04 | 12-70 | 400 | 91.3 |
| Φ2700*4000 | 20.7 | 40 | ≤25 | 0.074-04 | 12-80 | 400 | 94 |
| Φ2700*4500 | 20.7 | 48 | ≤25 | 0.074-04 | 12-90 | 430 | 102 |
| Φ3200*4500 | 18 | 65 | ≤25 | 0.074-04 | According to different tech | 800 | 137 |
