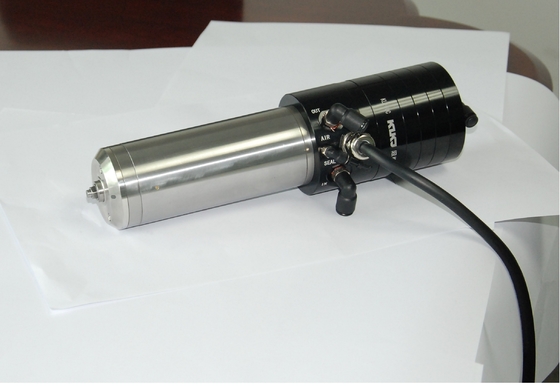

Optical Glass Grinding Cnc Router Spindle Ball Bearing Spindle 1.2kw - 1.5kw 10K-60KRPM
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Speed Range: | 10KRPM-60KRPM | ||
|---|---|---|---|
| High Light: | High precision Spindle,grinding spindle |
||
PRODUCT DESCRIPTION
MODEL: KL-60C-4
NAME : BALL BEARING SPINDLE
SPEED RANGE: 10,000 - 60,000 rpm
BEARING TYPE: Ball Bearing
SPINDLE WEIGHT: 4.6kg
COLLET SIZE: ø3.175—ø6
Air Pressure: ≥6 kgf/cm²
Motor power: 1.2KW or 1.5KW(OPTIONAL)
Coolant: Water or oil
Coolant water temperature: 20℃+2
Voltage: 33-200V
MAX. CURRENT (A): 3A
Dynamic Runout: ≤8μm
Vibration: 1.0MM/S
Temperature sensor ohms KΩ: R= 10±3% AT 25℃
TORQUE(g): ø3.175≥800g ø6≥1500g
Competitive Advantage:
LOW STATIC RUN OUT
LOW DYNAMIC RUN OUT
STABLE CHARACTER AND LONG LIFE TIME
SUITABLE FOR P.C.B ROUTING INDUSTRY, OPTICAL GLASS GRINDING, DENTAL ENGRAVING,
TOUCH SCREEN GRINDING,SOFT METAL MACHINING(SILVER,BRASS,GOLD OR ALUMINUM).
WATER-PROOF
APPLICATION :
1, PRINTED CIRCUIT BOARD ROUTING PROCESS
MACHINE REFERENCE:KLINGINBERG PLURITEC ；HITACHI ；LENZ ；ANDERSON ….
2, OPTICAL GLASS PROCESS
3, DENTAL ENGRAVING MACHINE
4.SOFT METAL MACHINING
Quick Detail:
|
MODEL |
NAME |
DESCRIPTION |
Application |
Machine reference |
Bearing type |
|
KL-60C-4 |
SPINDLE |
SPEED RANGE: 10,000 - 60,000 rpm High precision routing ,grinding or engraving |
Print Circuit Boad Routing |
TALIANG; LISONG |
Ball Bearing |
SPECIFICATION:
|
SPEED RANGE(RPM) |
10,000-60,000 |
|
FREQUENCY (HZ) |
167-1000 |
|
MOTOR TYPE |
THREE PHASE |
|
MOTOR OUTPUT POWER |
1.2KW OR 1.5KW(OPTIONAL) |
|
TORQUE(g) |
ø3.175≥800g ø6≥1500g |
|
VOLTAGE (V) |
33-200 |
|
COLLET CLAMPING DIAMETER (mm) |
ø3.175—ø6 |
|
COOLING TEMPERATURE(°C) |
20 |
|
BEARING TYPE |
BALL BEARING |
|
AIR PRESSURE (kg/cm2) |
≥6 |
|
RUNOUT (μm) |
≤8 |
|
VIBRATION (mm/s) |
≤1.0 |
|
THREE PHASE RESISTANCE (Ω) |
2.2 |
|
COLLET LOCK TYPE |
DEAD COLLET |
|
SPINDLE WEIGHT (kg) |
Around 4.6 |
|
MAX. CURRENT (A) |
< 5 |
|
GRIP AIR PRESSURE (kg/cm2) |
≥1.5 |
|
RELEASE AIR PRESSURE (kg/cm2) |
≤4.5 |

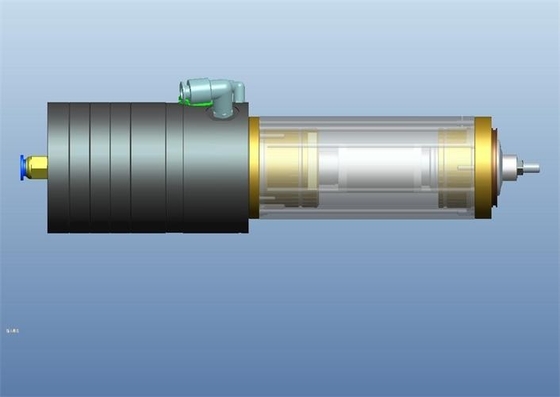

Spindle Drawing
