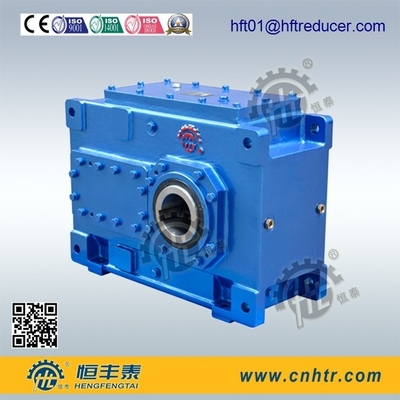

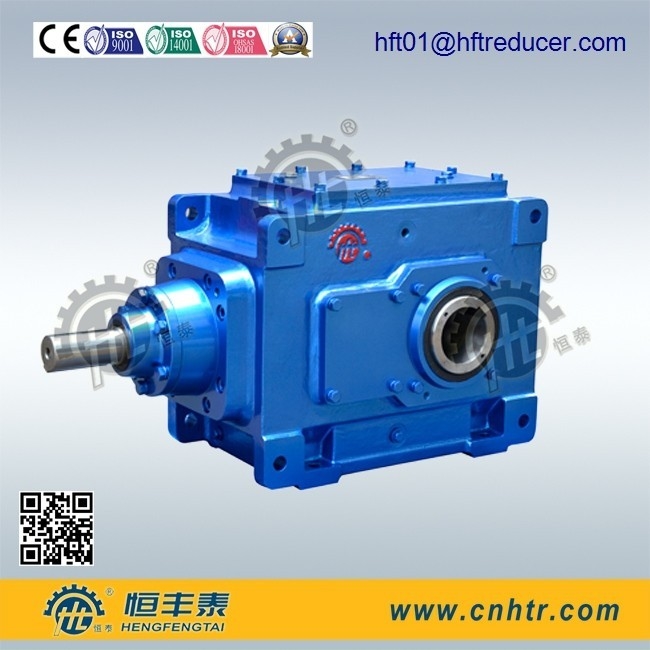

Ht250 Helical Gear Reducer For Mining Ball Mill Powder Grinding Sand Washer
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Model: | H Helical, B Helical Bevel | Size: | H1 To H24 |
|---|---|---|---|
| Reduction Stage: | 1,2,3,4 | Ratio: | 1.25-450 |
| Torque: | 2.6K.Nm-900K.Nm | ||
| High Light: | Shaft mounted Gear Reducer,inline helical gearbox |
||
Ht250 Helical Gear Reducer For Mining Ball Mill Powder Grinding Sand Washer
Quick Details:
Trade Mark
| Hengtai Gearbox |
Mounting Position
| Foot/ hollow(keyed ) |
Output Speed
| 1.7-1200 Rpm |
Output Torque
| 2-900 KN.M |
Rated Power
| 4.3-450 Kw |
Transmission Ratio
| 1.25-450 |
Gear Arrangement
| Helical Gear Reducer |
Features:
Series | Transmission Ratio (i) | models |
H1 | 1.25-5.6 | H1SH3, H1SH5, H1SH7, H1SH9, H1SH11, H1SH13, H1SH15, H1SH17, H1SH19 |
H2 | 6.3-28 | H2SH4, H2SH5, H2SH6, H2SH7, H2SH8, H2SH9, H2SH10, H2SH11, H2SH12, H2SH13, H2SH14, H2SH15, |
H3 | 25-112 | H3SH4, H3SH5, H3SH6, H3SH7, H3SH8, H3SH9, H3SH10, H3SH11, H3SH12, H3SH13, H3SH14, H3SH15, |
H4 | 100-450 | H4SH5, H4SH6, H4SH7, H4SH8, H4SH9, H4SH10, H4SH11, H4SH12, H4SH13, H4SH14, H4SH15, H4SH16, |
Description:
Material:
Housing: HT250 cast iron
Bearing: 42CrMo
Gear: 20CrMnTi H,
Stage | Model | Ratio | Nominal Power (KW) | Nominal Torque(N.m) | Shaft | Mounting |
Single-stage | 3--19 | 1.25--5.6 | 30-4,744 | 2,200-165,300 | S. Solid Shaft | H: Horizontal |
Double-stage | 4--26 | 6.3--28 | 21-5,193 | 5,900-843,000 | ||
Three-Stage | 5--26 | 22.4--112 | 9-4,749 | 10,600-952,000 | ||
Four-Stage | 7--26 | 100--450 | 4.1-1,325 | 18,400-944,000 |
Application:
- Conveyor systems
- Cooling towers and compressors
- Extruders
- Agitators (mixers)
- Cement industry
- Crane systems
- Sewage plants
- Mining
- Forestry and paper industry
- Sugar industry
- Steel industry
About Hengtai reducer company:
Facilities
550,000 square feet manufacturing facilities
400 employees
Major US & European OEM customers
ISO 9001:2000 certificate
ISO 14001 Certificate
GB/T 28000 Certificate
Over two decades of planetary reducer production experience
5,000 square feet warehouse in Los Angeles, California USA
Major equipment include
8 sets CNC Gear Hobbing machine
10 sets CNC Grinding Machine
6 sets CNC Borning Machine
10 sets CNC Drilling Machine
200 sets other CNC Machines
Certification
ISO 9001: 2000 Cert.
ISO 14001 Cert.
GB/T 28001 Cert.
TUV Cert.
SGS Cert.
Quality Control System
100% products Inspected by CMM
Gear Inspection Center
Material Inspection Lab
Trial Running Inspection
Leakage Inspection
