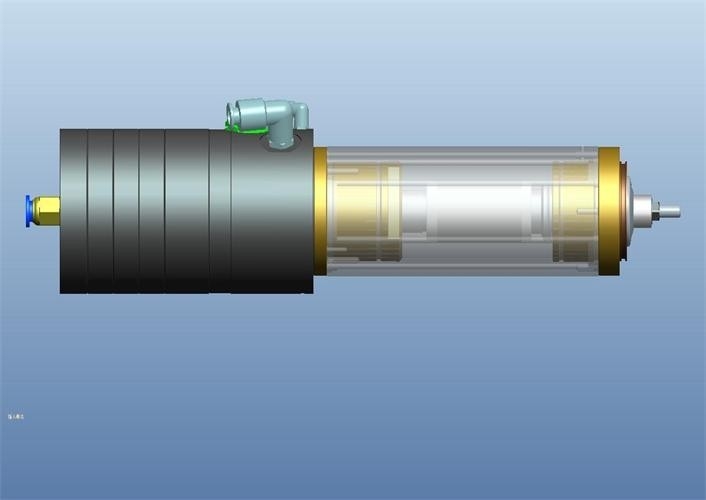

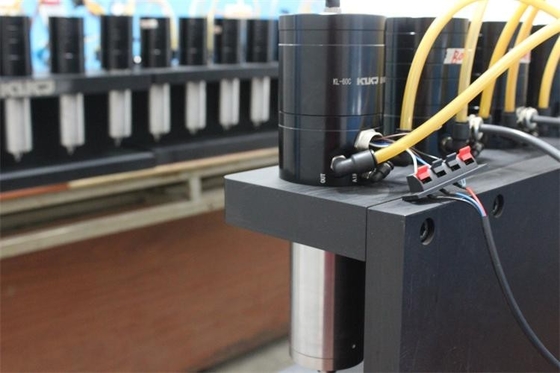

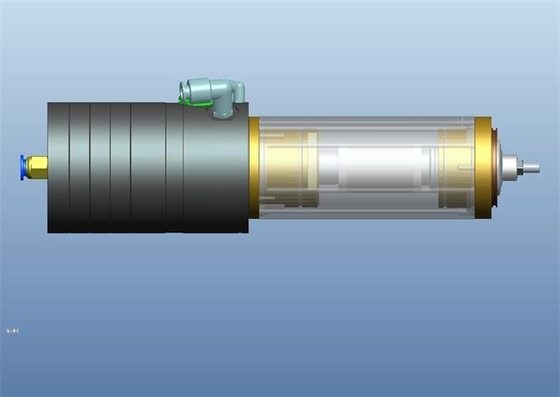

60000 RPM CNC Router Spindle PCB Drilling Spindle For Teeth Grinding

Large Image : 60000 RPM CNC Router Spindle PCB Drilling Spindle For Teeth Grinding Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	KLKJ
Certification:	ISO9001:2008 ; UKAS; IAF
Model Number:	KL-200B

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	Negotiation
Packaging Details:	STANDARD BROKEN-RESISTANCE PACKAGE
Delivery Time:	10-15 WORKING DAYS
Payment Terms:	T/T;L/C;WESTERN UNION
Supply Ability:	500SET/MONTH

Contact Now

Detailed Product Description

High Light:

High precision Spindle

grinding spindle

PRODUCT DESCRIPTION

MODEL:KL-60C-1

NAME :BALL BEARING SPINDLE

SPEED RANGE:10,000 - 60,000 rpm

BEARING TYPE:Ball bearing

SPINDLE WEIGHT:4.6kg

COLLET SIZE:ø3.175—ø6

Air Pressure:≥6 kgf/cm²

Motor power:1.2KW-1.5KW

Coolant:Water oil

Coolant water temperature:20+2

Voltage:33-200V

MAX. CURRENT (A):3A

Dynamic Runout:≤8

Vibration:1.0MM/S

Temperature sensor ohms KΩ: R=10±3% AT 25℃

TORQUE(g): ø3.175≥800g ø6≥1500g

Competitive Advantage:

LOW STATIC

LOW DYNAMIC RUN OUT

STABLE CHARACTER AND LONG LIFE

SUITABLE FOR P.C.B ROUTING INDUSTRY, OPTIC EYEGLASSES GRINDING, TEEGH GRINDING.

WATER-PROOF

APPLICATION :

1, PRINT CIRCUIT BOARD ROUTING PROCESS

MACHINE REFERENCE:KLINGINBERG PLURITEC ；HITACHI ；LENZ ；ANDERSON ….

2, OPTIC EYEGLASSES PROCESS

3, TEETH GRINDING

Quick Detail:

MODEL

NAME

DESCRIPTION

Application

Machine reference

Bearing type

KL-60C-1

SPINDLE

SPEED RANGE: 10,000 - 60,000 rpm

High precision routing

Print Circuit Boad Routing

TALIANG; LISONG

Ball Bearing

SPECIFICATION:

SPEED RANGE	10,000-60,000
FREQUENCY (HZ)	167-1000
MOTOR TYPE	THREE PHASE
MOTOR OUTPUT POWER	1.2KW-1.5KW
TORQUE(g)	ø3.175≥800g ø6≥1500g
VOLTAGE (V)	33-200
COLLET CLAMPING DIAMETER (mm)	ø3.175—ø6
COLLING TEMPERATURE(°C)	20
BEARING TYPE	BALL BEARING
AIR PRESSURE (kg/cm2)	≥6
RUNOUT (μm)	≤8
VIBRATION (mm/s)	≤1.0
THREE PHASE RESISTANCE (Ω)	2.2
COLLET LOCK TYPE	DEAD COLLET
SPINDLE WEIGHT (kg)	Around 4.6
MAX. CURRENT (A)	< 5
GRIP AIR PRESSURE (kg/cm2)	≥1.5
RELEASE AIR PRESSURE (kg/cm2)	≤4.5
