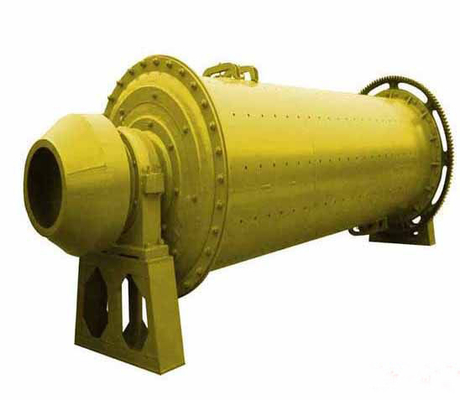

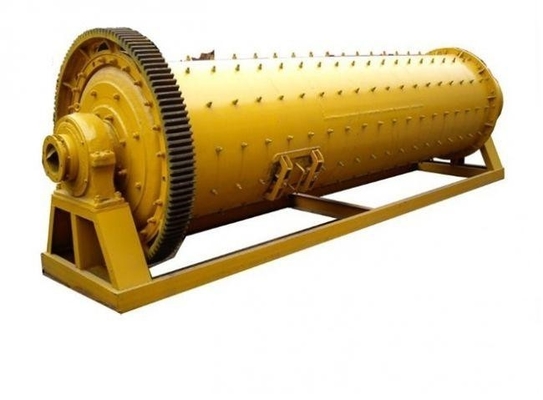

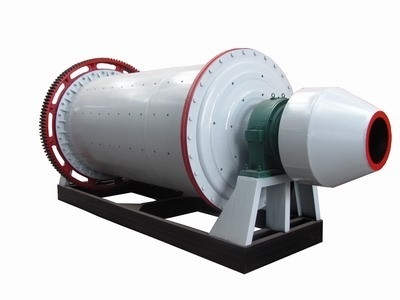

Mineral grinding ball mill

Mineral grinding ball mill
Mineral grinding ball mill Mineral grinding ball mill Mineral grinding ball mill

Large Image :  Mineral grinding ball mill Get Best Price

Product Details:
Place of Origin: China
Brand Name: LYC
Certification: CE
Model Number: Mineral grinding ball mill
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: contact us
Packaging Details: standard package
Delivery Time: 5-10days
Payment Terms: TT/LC
Supply Ability: 10pcs/month
Detailed Product Description

Mineral grinding ball mill



INTRODUCTION  OF BALL MILL

Ball mill is a kind of fine mill and one of the most widely used machine in the industry ,is the key equipments after the material crushed . The machine has a lot of kinds,such as pipe ball mill ,cement ball mill ,super fine press mill ,hand-ball mill ,horizontal ball mill ,ball mill axis,save energy ball mill ,overfall ball mill ,china ball mill ,grille ball mill etc.

    Ball mill is suitablely used in grinding kinds of mining stone and other material,is widely used in the choosing the mine,construction and chmistry etc. They can be depart into short canister,long cannister ,pipe canister and round canister according to the style of canister.



WORKING PRINCIPLE OF BALL MILL

    The ball mill is the main equipment in the process of making air cement material, it can grind the lime,plaster ,sand and the slag . Material can have function each other completely as long as grinding and reach the standard for fine,then the products will get the intensity ,grinding is the important process for the air adding cement making ,the process of grinding will cost a large of electricity,and usually is the biggest equipments in that process .



SPECIFICATION OF BALL MILL

Model

Rotary

speed(r/min)

Ball load(t)

Feeding size(mm)

Discharging size(mm)

Capacity

(t/h)

Motor power(kw)

Weight(t)

Ø900*1800

36-38

1.5

<=20

0.075-0.89

0.65-2

18.5

4.6

Ø900*3000

36

2.7

<=20

0.075-0.89

1.1-3.5

22

5.6

Ø1200*2400

36

3

<=25

0.075-0.6

1.5-4.8

30

12

Ø1200*4500

32.4

5

<=25

0.074-0.4

1.6-5.8

55

13.8

Ø1500*3000

29.7

7.5

<=25

0.074-0.4

2-5

75

15.6

Ø1500*4500

27

11

<=25

0.074-0.4

3-6

110

21

Ø1830*3000

25.4

11

<=25

0.074-0.4

4-10

130

28

Ø1830*4500

25.4

15

<=25

0.074-0.4

4.5-12

155

32

Ø2100*7000

23.7

26

<=25

0.074-04

8-48

280

50

Ø2200*4500

21.5

27

<=25

0.074-0.4

9-45

280

48.5

Ø2200*7500

21.7

35

<=25

0.074-0.4

15-30

380

56

Ø2400*3000

21

23

<=25

0.074-0.4

7-50

245

54

Ø2400*4500

21

30

<=25

0.074-0.4

8.5-60

320

65

Ø3200*4500

18

65

<=25

0.074-0.4

-----

800

137
