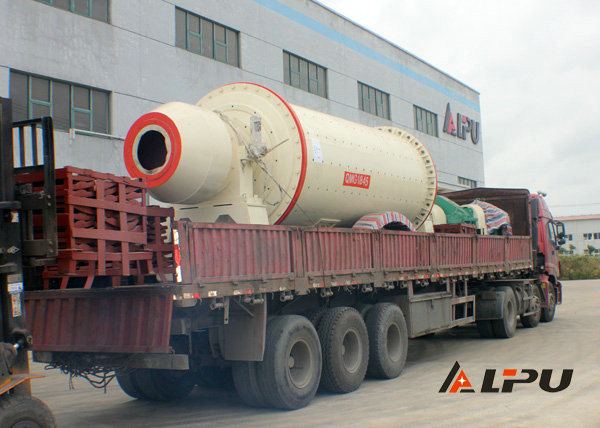

China Manufacture Ball Mill, Ball mill prices, Ball grinding mill

Large Image : China Manufacture Ball Mill, Ball mill prices, Ball grinding mill Get Best Price

Product Details:

Place of Origin:	Shanghai
Brand Name:	Lipu
Certification:	ISO，CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Payment Terms:	T/T，L/C
Supply Ability:	10 sets/months

Contact Now

Detailed Product Description

High Light:

ball mill

grinding mill

Ball MillIntroduction

Our ball mill product which is hot sale in 2015 year is used to grind many kinds of mineral ores and other materials, or to select mine. Ball mill is also widely used in the manufacturing industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.

Our ball mill for differenet industry such as ore dressing production line(overflow mill, grate mill), cement factory(super fine dry milling ball mill, damp mill, air swept ball mill), chemical industry. We also have ball mill for ceramic industry. Manganese steel, rubber, ceramic coating liner, continous or batch operation mill in choice.

What machine can work with ball mill to form a closed grinding circuit:

Spiral classifier, high frequency screen, air classifier, hydrocyclone

Technical Parameters:

Model	Effective volume(m3)	Max. steel ball load (t)			Capacity (t/h)			Power(kW)	Rotary speed（rpm）	Weight(t)
Model	Effective volume(m3)	MQG	MQY	MQS	MQG	MQY	MQS	Power(kW)	Rotary speed（rpm）	Weight(t)
φ900×1800	1	1.3	1.7	2	0.9-1.6	1.7-3.2	2-3.7	15	37	4.2
φ900×2100	1.1	1.5	1.9	2.3	1-1.9	2-3.7	2.3-4.3	18.5	37	4.9
φ900×3000	1.6	2.2	2.8	3.3	1.4-2.7	2.9-5.4	3.3-6.2	30	37	7.6
φ1200×2400	2.4	3.3	4.1	4.9	2.2-4	4.3-8	5-9.2	30	35	8.7
φ1200×3000	3	4.1	5.2	6.2	2.7-5	5.4-10	6.2-12	37	35	13
φ1200×4500	4.4	6.2	7.7	9.3	4-7.5	8.1-15	9.3-17	55	35	14
φ1500×3000	4.8	6.6	8.3	10	4.3-8	8.6-16	10-19	75	29	15
φ1500×4500	7.1	10	12	15	6.5-12	13-24	15-28	110	29	16
φ1500×5700	9	13	16	19	8.2-15	16-31	19-35	130	29	24
φ1830×3000	7.1	10	12	15	6.4-12	13-24	15-28	130	24.5	28
φ1830×4500	10.6	15	18	22	10-18	19-36	22-41	155	24.5	32
φ1830×6500	15.3	21	27	32	14-26	28-52	32-60	210	24	35
φ1830×7000	16.5	23	29	34	15-28	30-56	35-64	245	24	37
φ2100×3000	9.4	13	16	20	9-16	17-32	20-37	155	23.5	42
φ2100×3600	11.3	16	20	24	10-19	21-38	24-44	180	23.5	44
φ2100×4500	14.1	20	25	30	13-24	26-48	30-55	245	23.5	52
φ2100×7000	22	31	38	46	20-37	40-74	46-86	380	23.5	57
φ2200×3600	12.5	17	22	26	11-21	23-42	26-49	210	21.5	52
φ2200×4500	15.6	22	27	33	14-26	28-53	33-61	245	21.5	54
φ2200×6500	22.5	31	39	47	20-38	41-76	47-88	320	21.5	60
φ2200×7000	24.2	34	42	51	22-41	44-82	51-95	380	21.5	63
φ2200×8000	27.8	38	48	57	26-46	49-90	57-104	420	21.5	67
φ2400×3600	15	21	26	31	14-25	27-51	31-58	280	21.3	60
φ2400×4500	18.7	26	33	39	17-32	34-63	39-73	320	21.3	71
φ2400×6000	24.9	35	43	52	23-42	45-84	52-97	400	21.3	84
φ2400×7000	29.1	41	51	61	26-49	53-98	61-113	475	21.3	92
φ2700×3600	18.8	26	33	39	17-32	34-64	40-73	380	20.6	82
φ2700×4500	23.5	33	41	49	21-40	43-80	49-92	480	20.6	90
φ2700×6000	31.4	44	55	66	29-53	57-106	66-122	560	20.6	105
φ2700×7000	36.6	51	64	77	33-62	67-124	77-143	630	20.6	110
φ3200×4500	33.5	47	58	70	31-57	61-113	70-131	800	18.2	137
φ3200×6000	44.7	62	78	94	41-76	81-151	94-174	1000	18.2	160
φ3200×7000	52.2	73	91	109	47-88	95-176	110-203	1120	18.2	185
φ3600×4500	42.8	60	75	90	39-72	78-145	90-167	1120	17	200
φ3600×6000	57.1	80	100	119	52-96	104-193	120-223	1400	17	220
φ3600×7000	66.6	93	116	139	61-113	121-225	140-260	1600	17	245
φ3600×8000	76.1	106	133	159	70-129	138-257	160-297	1600	17	270
φ3600×9000	85.6	120	149	179	78-145	156-289	180-334	1800	17	285
φ3800×6500	69.1	96	121	145	63-117	126-234	145-270	1800	16.7	277
φ3800×8500	90.4	126	158	189	82-153	165-306	190-353	2250	16.7	300

Note: 1. Equipment actual processing capacity, power, weight and technic process has great relationship with equipment configuration, the above data is only for reference.
2. Equipment power changes according to grinding media type, volume load and altitude. The above data is based on wet type grate ball mill, grinding media (steel ball), volume load≤40%, altitude﹤1000m.
3. Shell rotary speed changes according to linear plate type, liner plate thickness and different technic process.
