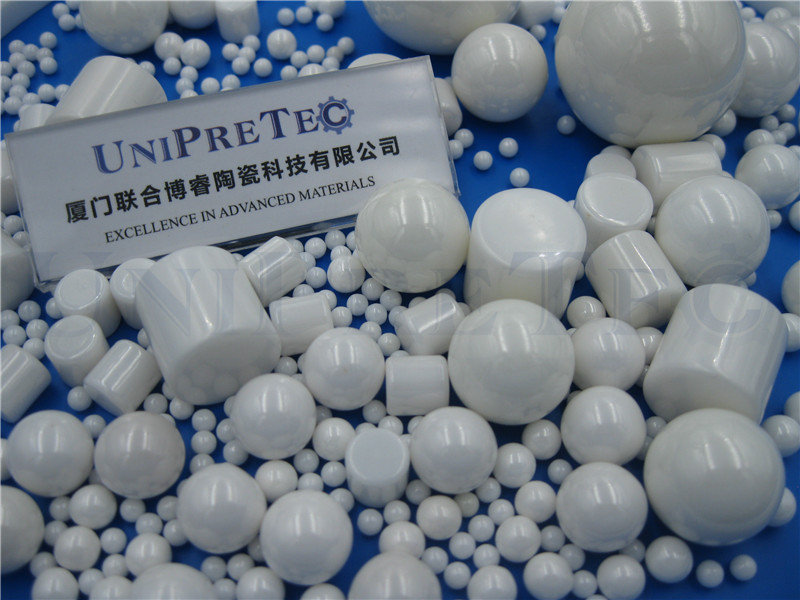

Technical Ceramic Grinding Bead for Ball Mill / Attrition Mill
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | Ceramic Grinding Bead,Ball Mill,Attrition Mill |
||
|---|---|---|---|
Product Feature:
1. High mechanical strength, leading to high grinding efficiency and long working life;
2. Chemical stabile and free pollution to material;
3. Low thermal expansion
Main Properties:
| Performance | Unit | Y-PSZ | Ce-PSZ |
| Content | wt% | 94.5% ZrO2 5.25% Y2O3 | 78～80% ZrO2 13～20% CeO2 |
| Bulk Density | g/cm3 | 3.73(Φ2mm) | 3.8(Φ7mm) |
| Density | g/cm3 | ≥6.02 | 5.95～6.2 |
| (HV)Hardness | GPa | >8.5 | >9 |
| Elasticity Modulus | GPa | 200 | 200 |
| Thermal Conductivity | W/m.K | 3 | 3 |
| Crush Strength | KN | ≥20 (Φ2mm) | ≥10 (Φ7mm) |
| Bending Toughness | MPam1-2 | 9 | 8.5 |
| Grain Size | µm | ≤0.5 | ≤0.5 |
| Coefficient of Thermal Expansion | 10x10 -6 / °C (20-400) | 9.6 | 9 |
Available Size (mm):
Sphere: Φ0.2-0.4, Φ0.4-0.6, Φ0.6-0.8, Φ0.8-1.0,
Φ1.0-1.2, Φ1.2-1.4, Φ1.4-1.6, Φ1.6-1.8,
Φ1.8-2.0, Φ2.0-2.2, Φ2.2-2.4, Φ2.4-2.6,
Φ3, Φ5, Φ6.5, Φ10, Φ12, Φ15, Φ20, Φ25, Φ30, Φ35, Φ40, Φ45...
Application Fields:
Zirconia grinding beads are widely used for vertical mixing mill, horizonal ball mill,vibromill and sand mill, attrition mill. They are almost applied in below areas:
Anti-abrasive products: coating, spinning, pigment, dyeing.
High strength products: magnetic products, piezoelectric ceramics.
Free-pollution products: medicine, food, cosmetics.
Ceramic products: electronic ceramic, refractory ceramic, structural ceramics.
About UniPreTec
UniPreTec provides high-performance ceramic products in Alumina, Zirconia, Zirconia Toughened Alumina, Silicon Carbide, Silicon Nitride and further special materials. Along with these materials, we offer several machining from which to choose such as cutting, drilling, sawing, turning, grinding, polishing etc.. Furthermore, our technologies and equipments allow us to provide various and flexible forming processes, like dry pressing, isostatic pressing, extrusion, injection moulding and slip casting.
